Wolf-Garten HSG 55 41AQ1FSO650 (2012) Engine Ricambi

BOLT

Nota: Questo articolo è2 volte installato nel dispositivo, il prezzo è per pezzo!
Articolo numero:
SG-2022850
Posizione:
7
DINNORM:
2022850
Modell Year:
HSG 55 / 2012 HSG 55 / 2013 HSG 55 / 2014
non più disponibile

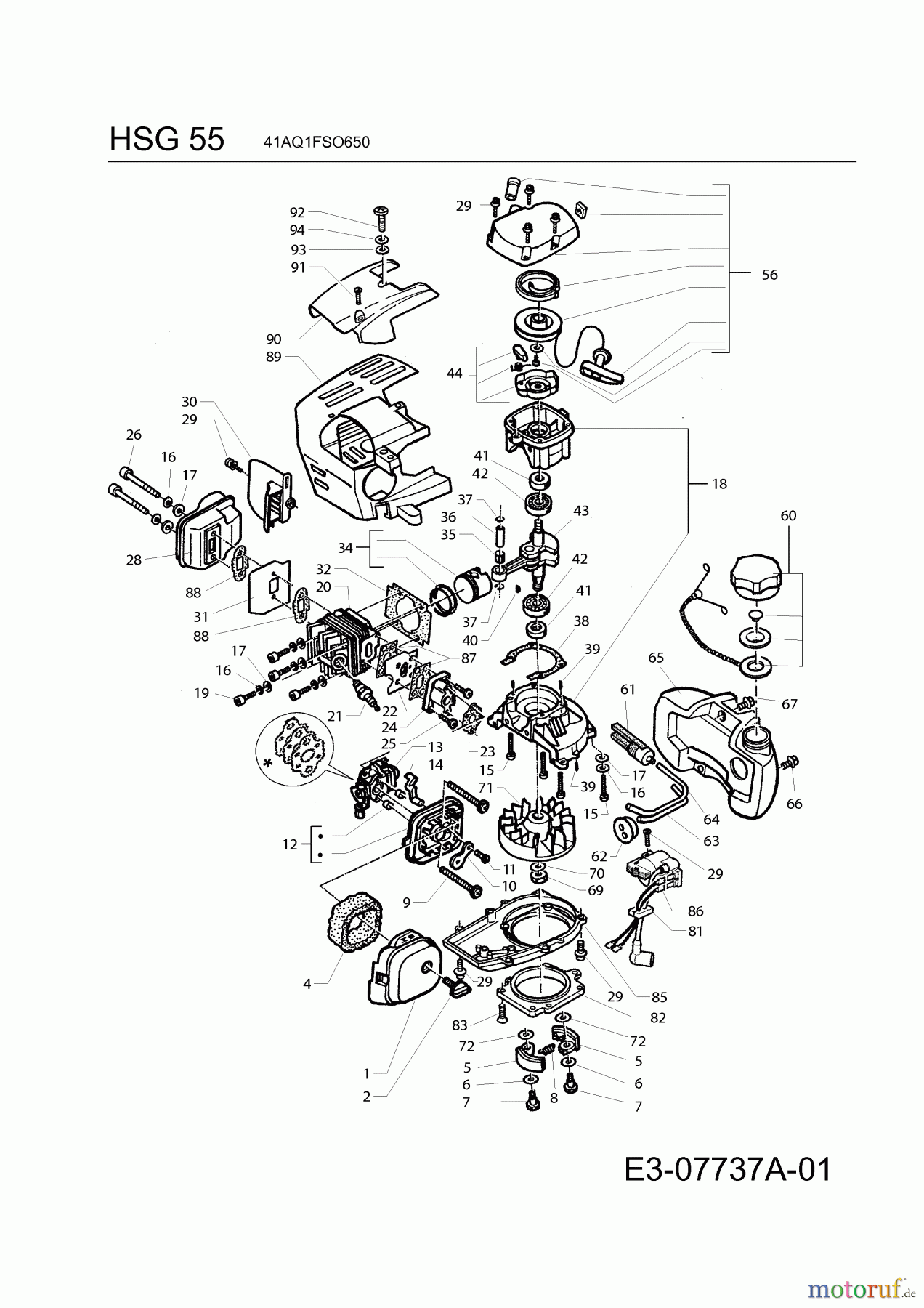

Wolf-Garten Petrol hedge shears HSG 55 41AQ1FSO650 (2012) Engine
PosizioneArticolo numeroDescrizione
1 SG-2032920AIR CLEANER COVER
2 SG-2022800AIR CLEANER SCREW
4 SG-2022820AIR CLEANER FILTER
5 SG-2022830CLUTCH CHEEK
6 SG-1022840WASHER
7 SG-2022850BOLT
8 SG-2022860SPRING-CLUTCH
9 SG-2022870SCREW
10 SG-2022880LOCK PLATE
11 SG-2022890Screw
12 SG-2022900AIR CLEANER SUPPORT
13 SG-2033140CARBURETOR WITH GASKETS
14 SG-2022910FORK,LIFT
15 SG-1022920SCREW
16 SG-1022930WASHER
17 SG-1022940WASHER
18 SG-2022950CRANK CASE SERVICE ASSEMBLY
19 SG-1022960SCREW
20 SG-2022970Liner
21 SG-2022980SPARK PLUG
22 SG-2032700INSULATING PLATE CARBURETOR
23 SG-2022990CARBURETOR GASKET
24 SG-2023010CARB. MOUNT ASSY.
25 SG-1023020SCREW
26 SG-1023030CYLINDER SCREW
28 SG-2032900MUFFLER
29 SG-1023060SCREW
30 SG-2023070PROTECTION PLATE
31 SG-2032690INSULATION PLATE
32 SG-2023080CYLINDER GASKET
34 SG-2023100PISTON 6 RING ASSY.
35 SG-2023110BUSHING
36 SG-2023120BEARING BOLT
37 SG-2023130RING-SNAP
38 SG-2023140GASKET
39 SG-2023150CYLINDER PIN
40 SG-2023160KEY
41 SG-2023170SEALING RING
42 SG-2023180BALL BEARING
43 SG-2023190CRAUKSHAFT
44 SG-2023200COVER
56 SG-2082491Rewind starter
60 SG-2032040FUEL TANK ASSEMBLY
61 SG-2033160FILTER-FUEL
62 SG-2026090HOLDER FUEL LINE
63 SG-2026100FUEL LINE
64 SG-2033670CONDUIT UPPER
65 SG-2032720FUEL TANK
66 SG-1026120SCREW
67 SG-1026130SCREW
69 SG-1026360HEX. NUT
70 SG-1026370WASHER
71 SG-2026380FLYWHEEL
72 SG-1026350WASHER
81 SG-2020620CABLE HOLDER
82 SG-2032810CLUTCH BRACKET
83 SG-1038790COUNTERSUNK SCREW
85 SG-2033610COVER
86 SG-2026170COIL
87 SG-2033660Gasket
88 SG-2039120GASKET MUFFLER
89 SG-2032670ENGINE COVER
90 SG-2032680COVER ENGINGE COVER
91 SG-1020820Screw
92 SG-1038780Screw
93 SG-1038890washer
94 SG-1038900washer
