Spareparts

COVER AIRCLEANER

MTD COVER AIRCLEANER
Articolo numero:
092.63.512
Posizione:
2
DINNORM:
092.63.512
Description:
GC260.2-16301
Modell Year:
Smart BC 26 / 2015
9.66 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Articolo aggiunto al carrello1
in magazzino in magazzino

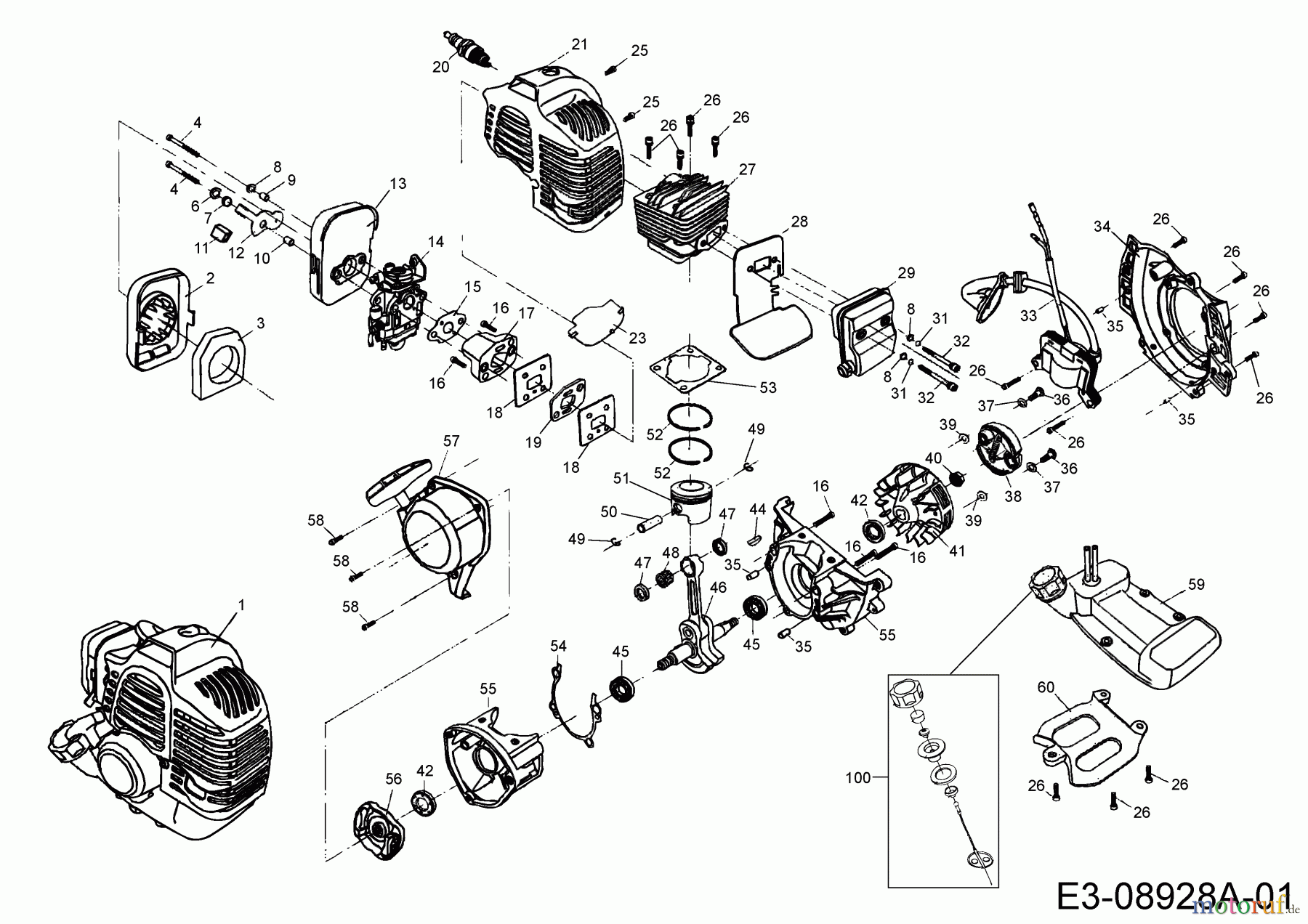

MTD Brush cutter Smart BC 26 41ATG0G-678 (2015) Engine
PosizioneArticolo numeroDescrizione
1 092.63.511ENGINE CPL.
2 MTD COVER AIRCLEANER092.63.512COVER AIRCLEANER
3 MTD ELEMENT,AIR CLEANER092.63.513ELEMENT,AIR CLEANER
4 092.63.514SCREW M5X6
6 092.63.515WASHER
7 092.63.516COMPRESSION SPRING
8 MTD WASHER A 5,3 DIN 125736-0602WASHER A 5,3 DIN 125
9 092.63.517BUSHING
10 092.63.518BUSHING
11 092.63.519CONDUCTION CHOKE LEVER
12 092.63.520CHOKE LEVER
13 MTD AIR FILTER HOUSING092.63.521AIR FILTER HOUSING
14 092.63.522CARBURETOR WITH GASKETS
15 092.63.523GASKET CARBURETOR
16 MTD SCREW M5X25092.63.056SCREW M5X25
17 092.63.524AIR INLET
18 MTD GASKET092.63.525GASKET
19 092.63.526GASKET
20 3021-N2-0110SPARK PLUG BM6A
21 092.63.527SHROUD
23 092.63.528HEAT SHIELD
25 092.58.004SCREW
26 MTD SCREW M5X20092.63.042SCREW M5X20
27 092.63.529Liner
28 092.63.530GASKET MUFFLER
29 092.63.531MUFFLER
31 092.63.532WASHER
32 092.63.053SCREW M5X55
33 MTD IGNITION MODULE WITH SCREWS092.63.533IGNITION MODULE WITH SCREWS
34 092.63.534FAN SHROUD
35 092.63.535DOWEL PIN
36 092.63.536SCREW M6X31
37 092.63.537WAWEY WASHER
38 092.63.538CENTRIFUGAL CLUTCH ASM.
39 092.63.539WASHER
40 092.63.540NUT FLANGE
41 092.63.541FLYWHEEL
42 092.63.064OIL SEAL 12X22
43 092.63.542CRANKCASE RH
44 092.63.065key
45 092.63.383BALL BEARING 6001
46 092.63.543CRANKSHAFT WITH CONROD
47 092.63.544BEARING CAP
48 092.63.387NEEDLE BEARING
49 092.63.545CIRCLIP
50 092.63.546PISTON
51 092.63.547PISTON PIN
52 092.63.548PISTON RING
53 092.63.549GASKET CYLINDER
54 092.63.550GASKET
55 092.63.551CRANKCASE LH
56 MTD ADAPTER, HOSE (PLASTIC)092.63.552ADAPTER, HOSE (PLASTIC)
57 MTD STARTER CPL.092.63.553STARTER CPL.
58 MTD SCREW 5X16092.63.554SCREW 5X16
59 092.63.555FUEL TANK ASSY.
60 092.63.556BRACKET TANK
