Yard-Man YM 7195 DE 31AT7Q3G643 (2003) Dashboard, Discharge chute, Handle Ricambi

ROD-SHIFT-LOWER

Articolo numero:
747-0621
Posizione:
18
DINNORM:
747-0621
Modell Year:
YM 7110 DET / 2005 YM 7195 DE / 2002 YM 7195 DE / 2003
29.93 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
yellow Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

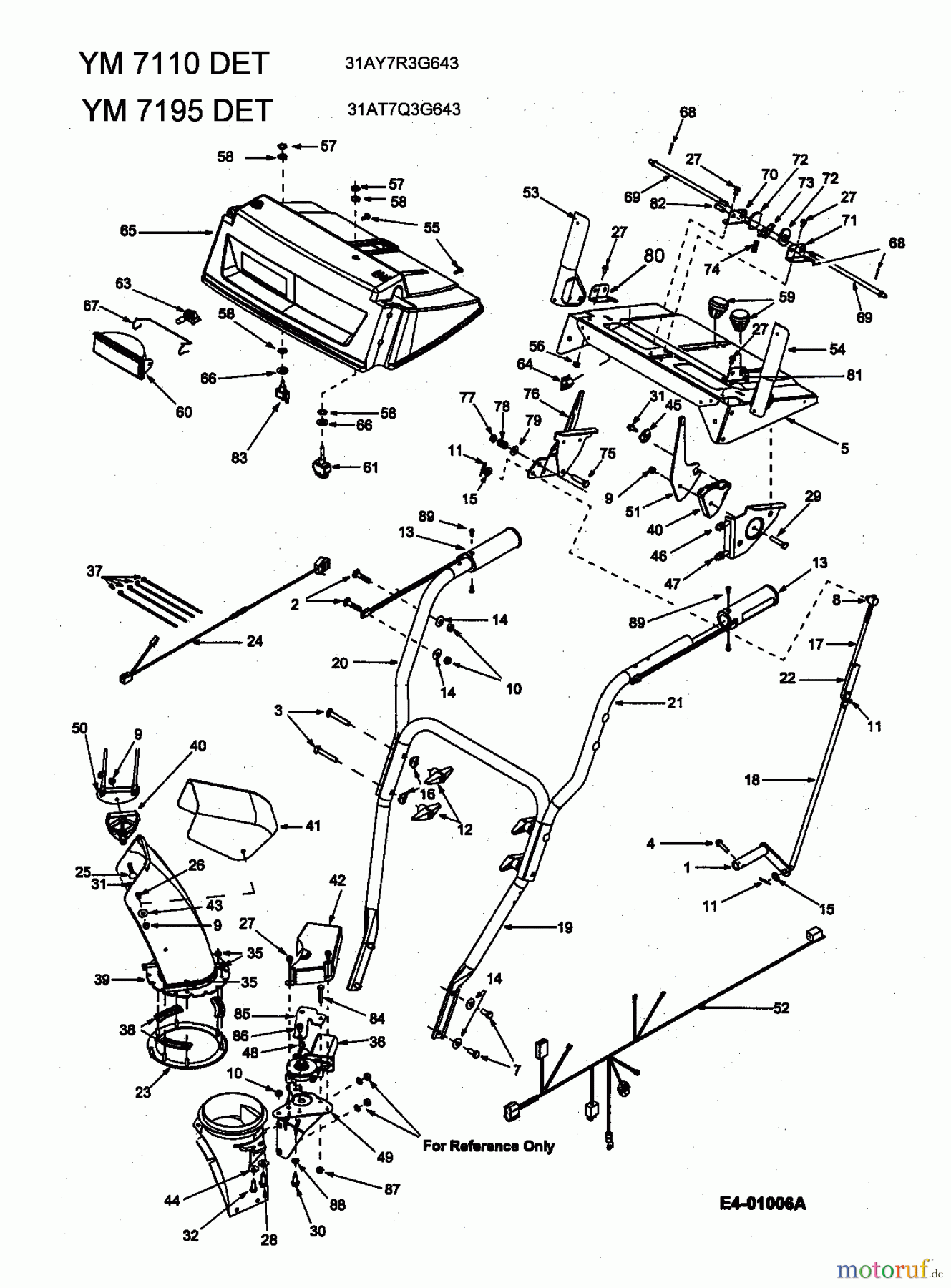

Yard-Man Snow throwers YM 7195 DE 31AT7Q3G643 (2003) Dashboard, Discharge chute, Handle
PosizioneArticolo numeroDescrizione
1 684-0008ASHIFT ARM ASSY.
2 710-0262BOLT:CRG:5/16-18:1.50:GR2
3 710-0572BOLT:CRG:5/16-18:2.50:GR1
4 710-0788SCREW:TT:1/4-20:1.000:HXINDWSH
5 684-0102PANEL SUPPORT
6 Yard-Man BOLT:SHEAR:5/16-18:1.5:GR2710-0890ABOLT:SHEAR:5/16-18:1.5:GR2
7 710-1880HHCS:5/16-18:.75:GR5:PATCH
8 Yard-Man FERRULE:5/16-18 x.312 DIA711-0677FERRULE:5/16-18 x.312 DIA
9 712-3068NUT:HEXLK:5/16-18:GR5:PATCH
10 Yard-Man NUT:HEX:5/16-18:GR5712-3010NUT:HEX:5/16-18:GR5
11 Yard-Man PIN:COT:.072 DIA x 1.13 LG714-0104PIN:COT:.072 DIA x 1.13 LG
12 720-0284WING NUT
13 725-1757GRIP
14 Yard-Man WASH:BLVL:.340 x .872 x .060736-0242WASH:BLVL:.340 x .872 x .060
15 736-0275WASH:FLAT:.344 x .688 x.065
16 736-0451WASH:SDL:.320 x.93 x.060
17 747-0620AROD-SHIFT-UPPER
18 747-0621ROD-SHIFT-LOWER
19 749-0951HANDLE-LOWER
20 749-0952AHANDLE-UPPER RH
21 749-0953AHANDLE-UPPER LH
22 750-0963SPACER
23 618-0419GEAR ASSY.-RING
24 629-0937HARNESS ASSY. LOWER
25 710-0262BOLT:CRG:5/16-18:1.50:GR2
26 Yard-Man BOLT:CRG:5/16-18:.750 GR1710-0451BOLT:CRG:5/16-18:.750 GR1
27 Yard-Man SCR:TT:1/4-20:0.500:HXINDWSH710-0599SCR:TT:1/4-20:0.500:HXINDWSH
28 Yard-Man SCREW:TT:5/16-18:1.00:HXINDWSH710-0602SCREW:TT:5/16-18:1.00:HXINDWSH
29 710-0805SCRE.HHCS:5/16-18:1.50:GR5:STD
30 Yard-Man SCR:TT:5/16-18:0.875:HXINDWSH710-0650SCR:TT:5/16-18:0.875:HXINDWSH
31 Yard-Man SCR:AB:1/4-14:.625:HXINDWSH710-0896SCR:AB:1/4-14:.625:HXINDWSH
32 Yard-Man SCREW HHCS:5/16-18:.75:GR5:STD710-3008SCREW HHCS:5/16-18:.75:GR5:STD
35 Yard-Man NUT:FLGLK:1/4-20:GRF712-3027NUT:FLGLK:1/4-20:GRF
36 724-0249BELECTRIC MOTOR
37 725-0157CBL:TIE: 3/16 X .05 X 7.4
38 731-0851AFLANGE KEEPER 5.0 DIA
39 731-1300ACHUTE-LOWER
40 731-1313CGDE:CBL:CHUTE TILT
41 731-1320UPPER CHUTE
42 731-2611COVER-MOTOR
43 736-0159WASH .349 ID X .879 OD X .063
44 Yard-Man WASH:BLVL:.340 x .872 x .060736-0242WASH:BLVL:.340 x .872 x .060
45 736-0506WASHER
46 746-0896CABLE:CHUTE DEFL-CTRL X 46.5
47 746-0901CABLE:CHUTE DEFL-CTRL X 46.5
48 741-1140SPACER
49 784-5745BRACKET-MOTOR
50 784-5594BRKT:MT:CBL
51 784-5604LEVER-CONTROL
52 629-0936AHARNESS ASSY. UPPER
53 684-0036AHNDL ASM:ENGAG RH
54 684-0037BHNDL ASM:ENGAG LH
55 Yard-Man SCR:B:#10-16:0.625:HXINDWSH:SP710-1003SCR:B:#10-16:0.625:HXINDWSH:SP
56 Yard-Man NUT:SEMS:1/4-20712-0271NUT:SEMS:1/4-20
57 712-0693NUT-HEX 15/32-32
58 716-0398Circlip
59 Yard-Man KNOB:SHFT:1.60 OD X 1.56720-0232KNOB:SHFT:1.60 OD X 1.56
60 725-1672HOUSING:LAMP/LENS ASSY:#890
61 725-1755SWITCH-TOGGLE:DOUBLE THROW
63 725-1759HALOGEN LAMP 50W/12V
64 726-0152CLAMP-MTG
65 731-2276PANEL-DASH
66 736-0226WASHER:FLAT:.474 x.879 x.064
67 747-1136RETAINING BRACKET: HEADLAMP
68 Yard-Man PIN:COT:.072 DIA x 1.13 LG714-0104PIN:COT:.072 DIA x 1.13 LG
69 747-0877THREADED ROD
70 784-5680BRKT:HNDL SUPT:5/8 MIDDLE RH
71 784-5679BRKT:HNDL SUPT:5/8:MIDDLE LH
72 748-0362CAM HANDLE LOCK
73 748-0363USE 748-0291A
74 732-0145COMPRESSION SPRING
75 Yard-Man HHCS:3/8-24:1.50:GR5:SPEC710-0459AHHCS:3/8-24:1.50:GR5:SPEC
76 784-5619ALEVER ASSY-SHIFT
77 Yard-Man NUT:JAMLK:3/8-24:GR2:NYLON712-0116NUT:JAMLK:3/8-24:GR2:NYLON
78 732-0193SPR:CMPRS:.39 x.60 x.88 LG
79 Yard-Man SPRING WASHER .401 x.870 x.060736-0105SPRING WASHER .401 x.870 x.060
80 784-5682BRKT:HNDL SUPT:3/8:EXT. 3/8
81 784-5681BRKT:HNDL SUPT:3/8:EXTERNAL LH
82 711-0653PIN-CLEVIS
83 725-1756SWITCH, PLUNGER SAFETY
84 Yard-Man SCREW HHCS:1/4-20:1.50:GR5:STD710-0606SCREW HHCS:1/4-20:1.50:GR5:STD
85 784-0411BRACKET-MOTOR
86 Yard-Man SCR:TT:1/4-20 x.625:HXINDWH710-1652SCR:TT:1/4-20 x.625:HXINDWH
87 Yard-Man NUT:FLGLK:1/4-20:GRF712-3027NUT:FLGLK:1/4-20:GRF
88 Yard-Man WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
89 710-0837SCR:AB:#10-16:0.625:OVALCSK
