Massey Ferguson MF 38-16 SH 13HD93GF695 (2016) Covers left hand and right hand mowing deck F (38"/96cm) Ricambi

Name: SPCR:SHLDR:.8840 x .190
Price: 4.79 EUR

SPCR:SHLDR:.8840 x .190

Articolo numero:

738-04162C

Posizione:

Description:

0.8840X0.190

Modell Year:

CC 917 AF / 2016 MF 38-16 SH / 2016

DINNORM:

FINISH:BEDAMPFT

4.79 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

in magazzino

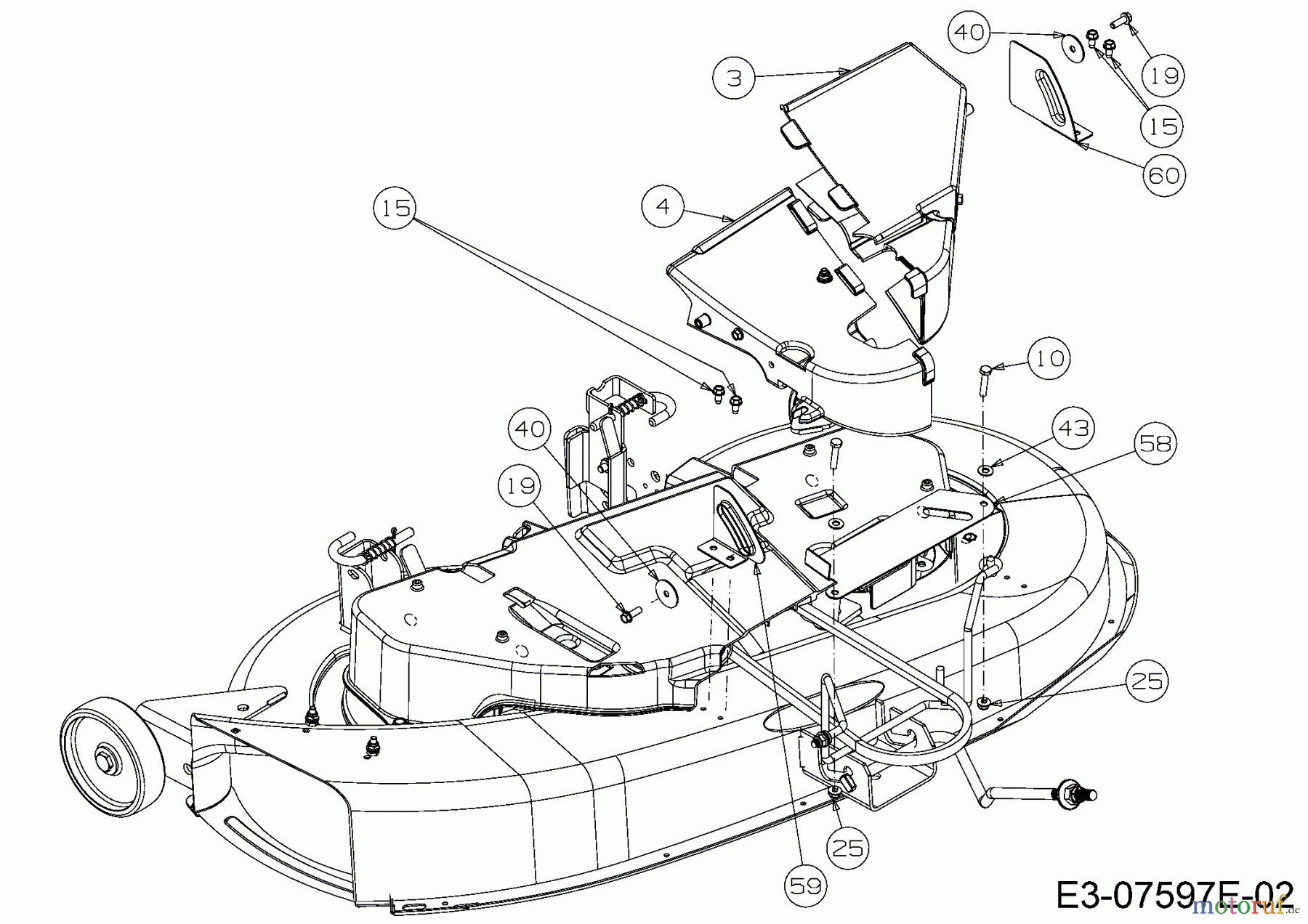

Massey Ferguson Lawn tractors MF 38-16 SH 13HD93GF695 (2016) Covers left hand and right hand mowing deck F (38

Posizione	Articolo numero	Descrizione
1	618-04474B	SPDL ASM:PUL:5.75" DIA
2	631-04312A	COVER ASM:DECK 38"
3	631-04342	COVER ASM LEFT
4	631-04343	CVR ASM:RIGHT
5	647-04163	ROD ASM KEEPER 42" FRENCH COVR
6	683-0254B	BRKT:ASM:DECK:HNGR LH LT
7	683-04138C
8	683-04167	BRAKE ASM:DECK 42"
9	683-05168
10	710-0106	HHCS:1/4-20:1.25:GR5:SPEC
11	710-0347	HHCS:3/8-16:1.75:GR5:STD
12	710-04484	SCREW:TT:5/16-18:.750:HXINDWSH
13	710-05045A	SCR:TT:5/16-18:.750:HXINDWSH
14	710-0528	HHCS:5/16-18:1.25:GR5:STD
15	710-0599	SCR:TT:1/4-20:0.500:HXINDWSH
16	710-0604A	SCREW:TT:5/16-18:0.625HXINDWSH
17	710-0751	HHCS:1/4-20:.620:GR5:STD
18	710-0778	SCR:TT:1/4-20:1.500:HXINDWISH
19	710-0895	SCR:HL:1/4-15:0.750:HXINDWSH
20	710-0919	HEX. SCREW B:#10-16:0440:HEX
21	710-1260A	SCR:TT:5/16-18:0.750:HXINDWSH
22	710-3008	SCREW HHCS:5/16-18:.75:GR5:STD
23	710-3144	HHCS:3/8-16:2.00:GR5:STD
24	712-04063	FLANGED NUT 5/16-18:GRF:NYLON
25	712-04064	NUT:FLGLK:1/4-20:GRF:NYLON
26	712-04065	NUT:FLGLK:3/8-16:GRF:NYLON
27	712-0417A	NUT:FLG:5/8-18
28	712-04243	NUT:FLXLK:1/2-13
29	714-04040	PIN-COTTER
30	714-0470	PIN:COT:1/8 x 1.25
31	717-04074	GEAR:DECK:ADJUSTMENT
33	726-0201	NUT:SPD:.3125 ID
34	726-0233	NUT:PUSH:.25 ID X .50 OD
35	732-04280B	SPR:EXTN:0.75 OD x 6.375LG
36	732-04287	SPR:EXTN:.500 DIA x 6.375LG
37	732-04652	SPR:COMP:.535 OD x 1.751 LG
38	734-0973	WHEEL:DECK 5.0 X 1.38
39	736-0119	WASHER:LOCK:5/16:SPLT:REG
40	736-0211	WASHER:FLAT:.285 x 1.250 x.060
41	736-0300	WASH:FLAT:.406 X .875 X.059
42	736-0317	WASH:BLVL:.630x1.250x.180
43	736-0463	WASH:FLAT: .250 x .630 x .052
44	738-0373	SCR:SHLDR:.496 x 1.525: 3/8-16
45	738-04162C	SPCR:SHLDR:.8840 x .190
46	738-041660
47	742-0610A	BLADE:19.30" 3 IN 1:6PT
48	747-04381	BRAKE ROD 38"
49	747-05061	ROD:DECK 38" EURO COVER
50	747-1116	ROD:HNDL:DECK REL .375 DIA
51	748-05029A	SPCR:SHLDR:IDLR
52	750-0566A	SPCR: .260 X .375 X 1.030 LG
53	754-04198C	BELT:V TYP:A SELECTION X 88.80
54	756-05042	PUL:IDLR:4.25"DIA:HD
56	783-04740	BRKT:CBL:DECK ENGAGE
57	783-05497	BRKT:KEEPR:BELT
58	783-06276	BRKT:CVR:FRENCH
59	783-06283	PLT:PIVOT:FRNCH CVR:REIGHT
60	783-06284	PLT:PIVOT:FRENCH CVR:LEFT
61	783-08389	CAP:PULLEY:HD
