ADJUSTMENT PIVOT HNDL. OTR.

Nota: Questo articolo è2 volte installato nel dispositivo, il prezzo è per pezzo!

Articolo numero:

731-10694

Posizione:

Modell Year:

A 340 E / 2015 A 340 E / 2016 A 340 E / 2017

DINNORM:

731-10694

Description:

Q200D650H33R

4.62 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Articolo aggiunto al carrello1

Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

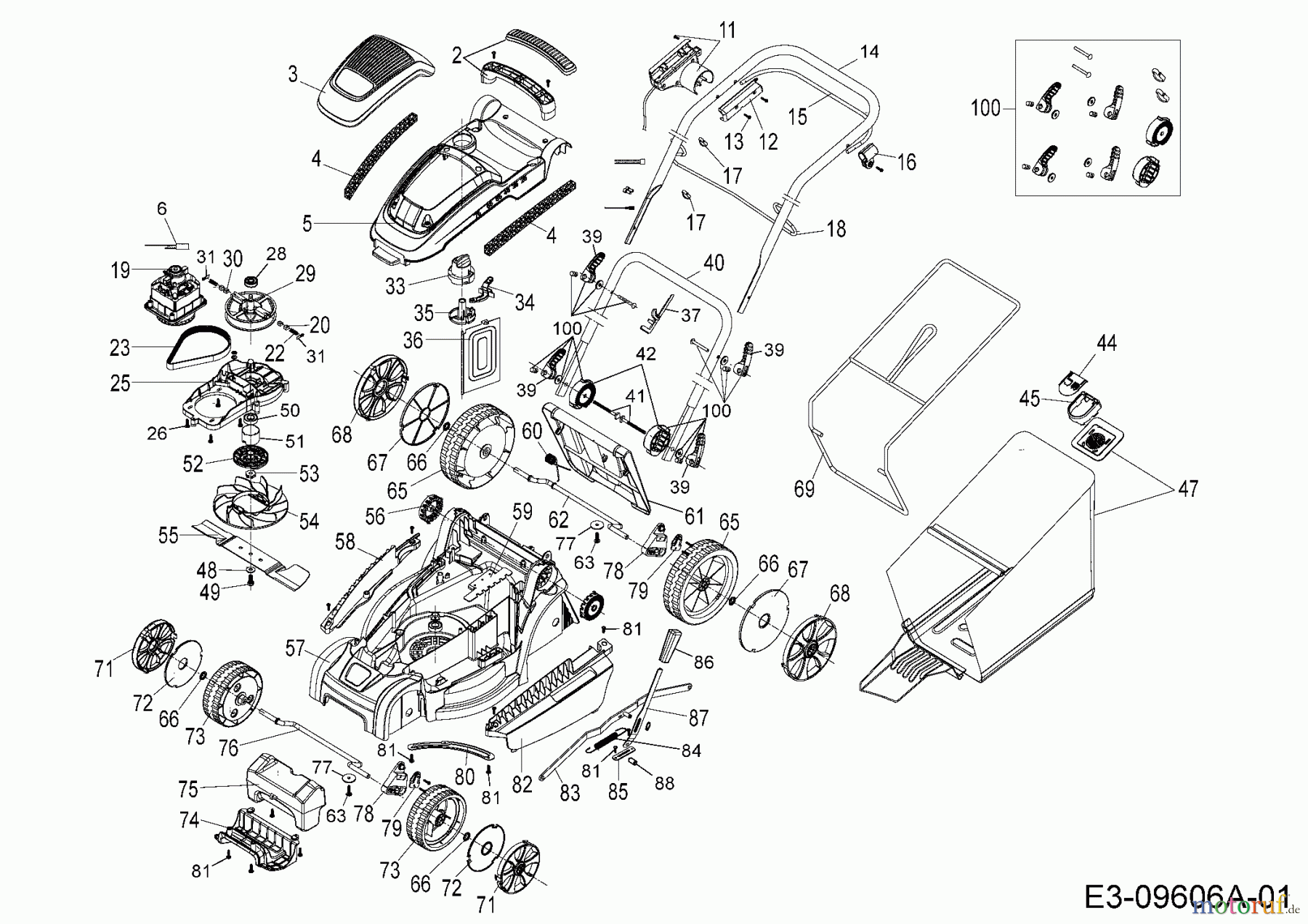

Wolf-Garten Electric mower A 340 E 18AKEJS2C50 (2017) Basic machine

Spareparts

ACCESSORIES BAG

Numero: WL092.64.443
Cercare: 092.64.443
Produttore: Wolf
Wolf-Garten Basic machine

22.58 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Posizione	Articolo numero	Descrizione
2	731-10713	Handle
3	731-10710	90307705
4	751-14948	AIR FILTER
5	731-10711	SHROUD DECK
6	092.64.487	BIMETAL, THERMOSATIC
11	625-05079	SWITCH
12	731-10993	BRACKET SWITCH BOX
13	092.61.002	Screw
14	092.64.555	UPPER HANDLE
15	747-06479	LEVER SHIFT
16	731-10693	SUPPORT LEFT LEVER SHIFT
17	092.48.887	CABLE CLAMP
18	747-06475	ROD RET. CORD. ELEC.
19	624-05035	ENGINE 230V 1450W
20	761-05011	BRAKE BLOCK
22	732-05304	SPRING BRAKE
23	754-05075	BELT
25	731-10702	HOUSING MOTOR AND FAN
26	092.64.457	NON STANDARD BOLT 5X20
27	092.64.459	CIRCLIP D8
28	092.64.460	BEARING 609-2RS
29	731-10994	PULLEY
30	761-05012	BRAKE CORK
31	761-05013	BRAKE SHIELD
33	731-10714	KNOB DOOR GRSBG. UPPER
34	731-10716	ARM,STEERING
35	731-10715	KNOB DOOR GRSBG LOWER
36	787-03312	DOOR BAG
37	731-10992	HOOK
39	731-10696	LEVER ADJUSTMENT HT HNDL
40	749-05346	LOWER HANDLE
41	710-06271	BOLT SQ HEAD
42	731-10694	ADJUSTMENT PIVOT HNDL. OTR.
44	731-10691	INDICATION GRASBAG FULL TOP
45	731-10989	INDICATION GRASBAG FULL BTM
47	764-05050	GRASS CATCHER CPL.
48	092.48.935	FLAT WASHER
49	092.48.934	BLADE BOLT
50	2010-2S-6002	BEARING 6002 2RS
51	761-05014	Brake drum
52	725-06283	FAN MTR. ADAP.
53	731-10704	WASHER
54	725-06282	IMPELLER
55	742-05123	BLADE
56	731-10695	CENTER SHAFT
57	731-10720	DECK 34CM
58	731-10718	COVER DECK RH
59	787-03309	BRACKET ADJUSTMENT CHA.
60	732-05262	TORSION SPRING
61	731-10717	REAR FLAP
62	711-06395	ROD CROSS BACK CHA.
63	092.64.554	SCREW ST4X12
65	734-05104	REAR WHEEL
66	092.48.870	CLAMP RING
67	731-10995	INSERT WHEEL REAR
68	731-10654	WHEEL CAP 200
69	749-05332	FRAME GRASBAG 34CM
71	731-10653	HUB CAP 150
72	731-10996	FRONT WHEEL COVER
73	734-05103	WHEEL 150X50
74	731-10722	COVER COUNTERWEIGHT
75	731-10721	COUNTERWEIGHT
76	711-06394	FRONT AXLE
77	092.64.552	AXLE KEEP PLATE
78	731-10700	AXLE HOLDER
79	787-03303	BRACKET
80	787-03310	BRACKET DOOR GRASBAG
81	092.64.452	SCREW M4X16
82	731-10719	COVER DECK LH
83	787-03308	ARM-HGT ADJ CONNECT
84	732-05306	SPRING-BRAKE TENSION
85	787-03305	BRACKET PLATE ARM CHA.
86	731-10701	KNOB ADJ. CHA.
87	787-03304	HANDLE LEVER
88	092.64.553	GUIDE PIN
100	092.64.443	ACCESSORIES BAG
