Spareparts

WIND CIRCLE

Articolo numero:
092.64.021
Posizione:
21
DINNORM:
092.64.021
Description:
3.01.08.0115
Modell Year:
S 2500 / 2014 S 2500 / 2015 S 2500 / 2016
2.52 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Articolo aggiunto al carrello1
yellow Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

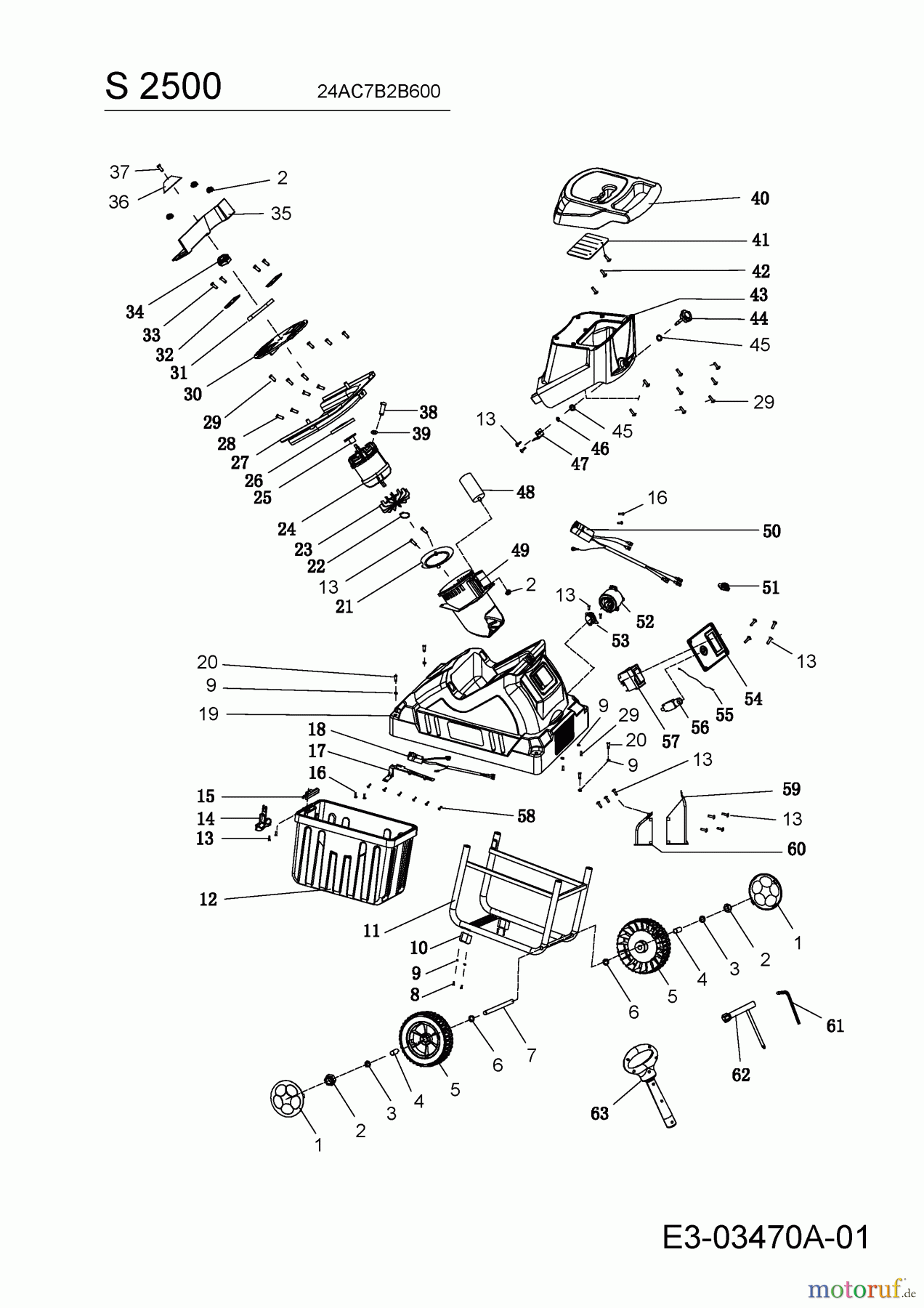

MTD Chipper S 2500 24AC7B2B600 (2016) Basic machine
PosizioneArticolo numeroDescrizione
1 092.64.103HUB-CAP
2 092.64.002LOCK NUT
3 092.64.003FLAT WASHER
4 092.64.004WHEEL DRIVEPIPE
5 092.64.005WHEEL
6 092.64.006washer
7 092.64.007WHEEL AXLE
8 092.64.008Screw
9 092.64.008Screw
10 092.64.010FOOT PAD
11 092.64.011RACK ASSY.
12 092.64.105COLLECTION BOX
13 092.64.013Screw
14 092.64.014SWITCH KEY
15 092.64.015KEY SOCKET
16 092.64.016Screw
17 092.64.106SAFE GUARD
18 092.64.107SWITCH ASSY.
19 092.64.108CHIPPER HOUSING
20 092.64.020Screw
21 092.64.021WIND CIRCLE
22 092.64.022CHECK RING
23 092.64.023IMPELLER ASSY.
24 092.64.024ENGINE
25 092.64.025CUTTER SUPPORT SLEEVE
26 092.64.026BUCKLER
27 092.64.027MOTOR DEAD PLATE
28 MTD SOCKET HEAD CAP SCREW092.64.028SOCKET HEAD CAP SCREW
29 092.64.029Screw
30 092.64.030CUTTER
31 092.64.031BLADE BAFFLE
32 MTD BLADE092.64.032BLADE
33 MTD SOCKET HEAD CAP SCREW092.64.033SOCKET HEAD CAP SCREW
34 092.64.034FLANGE NUT
35 092.64.035AL BAFFLE
36 092.64.036Nut
37 092.64.037Screw
38 092.64.095Screw
39 092.64.038Gasket
40 092.64.109FEED PORT PANEL
41 MTD RUBBER SHEET092.64.045RUBBER SHEET
42 092.64.110Screw
43 092.64.111HOPPER
44 092.64.048KNOB
45 092.64.049washer
46 092.64.050CHECK RING
47 092.64.051KEY-IGNITION
48 092.64.052CONDENSER
49 092.64.053MOTOR ROOM
50 092.64.112SWITCH
51 092.64.055FEMALE PLUG
52 092.64.113SOCKET ASSY.
53 092.64.057SHIELD
54 092.64.058SWITCH PANEL
55 092.64.059INNER WIRE
56 092.64.060OVERLOAD PROTECTOR
57 092.64.061ELECTROMAGNETIC SWITCH
58 092.64.063Screw
61 092.64.066SOCKET HEAD WRENCH
62 092.64.067SOCKET SPANNER
63 092.64.068SCRAPING WINGS
