MTD 17.5/42 13AN775S308 (2016) Mowing deck S (42"/107cm) Ricambi

SHELL 42" DECK

Articolo numero:
683-05185
Posizione:
6
Modell Year:
17.5/42 / 2016 15.5/42 / 2016 Pony / 2016
605.13 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
yellow Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

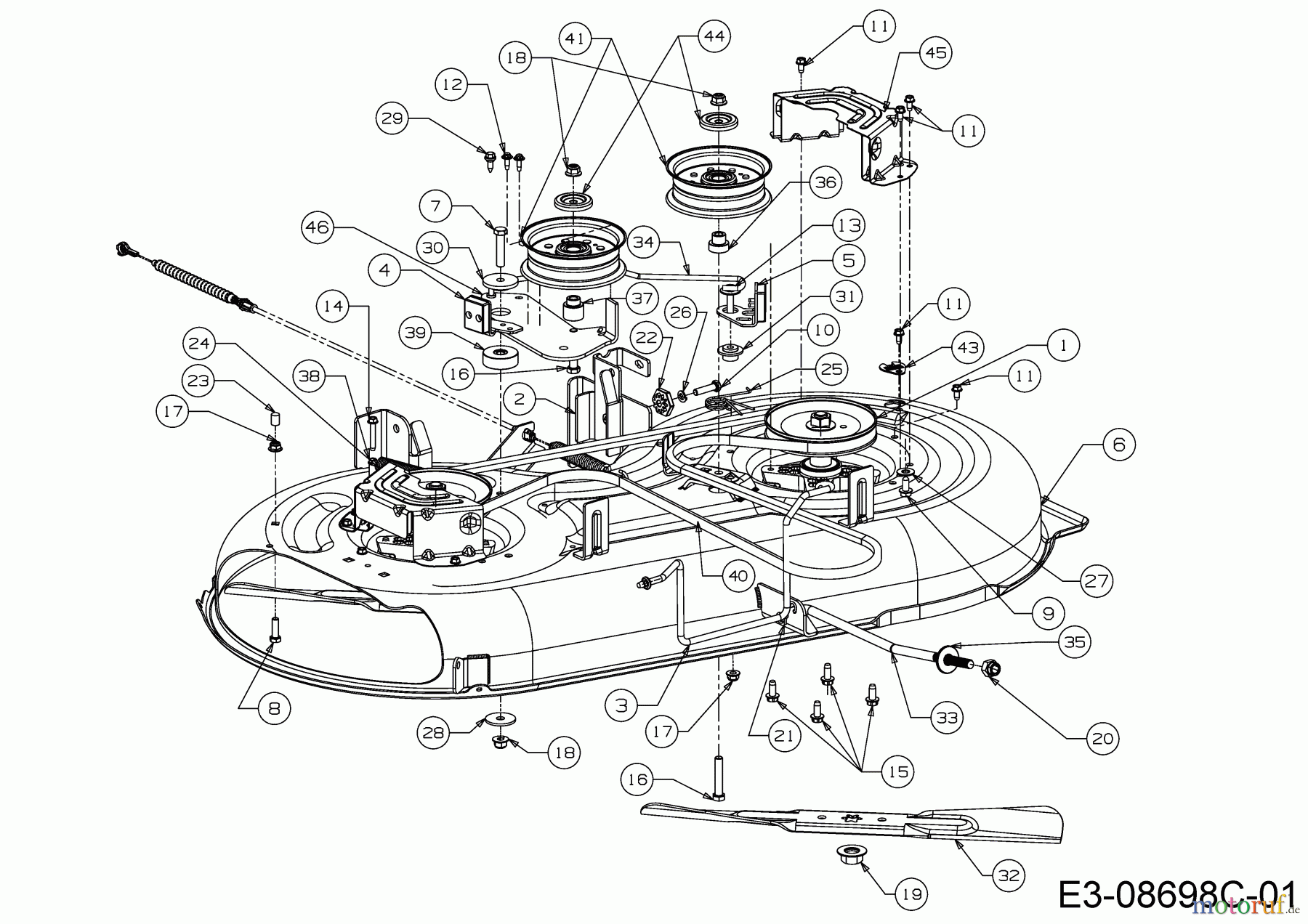

MTD Lawn tractors 17.5/42 13AN775S308 (2016) Mowing deck S (42
PosizioneArticolo numeroDescrizione
1 618-06991SPINDLE ASM DECK
2 683-0254BBRKT:ASM:DECK:HNGR LH LT
3 683-04443ROD ASM:KEEPR:BELT 42":PAINT
4 683-05182BRAKE ASM:DECK:RH
5 683-05183BRAKE ASM:DECK:LH
6 683-05185SHELL 42" DECK
7 MTD HHCS:3/8-16:1.75:GR5:STD710-0347HHCS:3/8-16:1.75:GR5:STD
8 MTD HHCS:5/16-18:1.00:GR5:STD710-0376HHCS:5/16-18:1.00:GR5:STD
9 MTD SCREW:TT:5/16-18:.750:HXINDWSH710-04484SCREW:TT:5/16-18:.750:HXINDWSH
10 MTD HHCS:5/16-18:1.25:GR5:STD710-0528HHCS:5/16-18:1.25:GR5:STD
11 MTD SCR:TT:1/4-20:0.500:HXINDWSH710-0599SCR:TT:1/4-20:0.500:HXINDWSH
12 710-06133SCR:CF:M6-1 X.625" HXACRNWSH
13 710-06213HHCS:SEMS:5/16-18X1.25:HD WSH
14 MTD SCR:TT:1/4-20:1.500:HXINDWISH710-0778SCR:TT:1/4-20:1.500:HXINDWISH
15 MTD SCR:TT:5/16-18:0.875:HEX710-06322SCR:TT:5/16-18:0.875:HEX
16 710-3096HHCS:3/8-16:2.00:GR8:STD
17 MTD FLANGED NUT 5/16-18:GRF:NYLON712-04063FLANGED NUT 5/16-18:GRF:NYLON
18 MTD NUT:FLGLK:3/8-16:GRF:NYLON712-04065NUT:FLGLK:3/8-16:GRF:NYLON
19 MTD NUT:FLG:5/8-18712-0417ANUT:FLG:5/8-18
20 MTD NUT:FLXLK:1/2-13712-04243NUT:FLXLK:1/2-13
21 MTD PIN COTTER:BOW - TIE 91714-04043PIN COTTER:BOW - TIE 91
22 MTD GEAR:DECK:ADJUSTMENT717-04074GEAR:DECK:ADJUSTMENT
23 720-05010CAP:VINYL: .290 x .500
24 732-04629SPR:EXTN:HOOK:.750 X 4.77
25 732-05151ASPR:TORSN:BRAKE:LH
26 MTD WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
27 MTD WASH:FLAT:.406 X .875 X.059736-0300WASH:FLAT:.406 X .875 X.059
28 736-3039WASH:FLAT:.406 x 1.5 x .105
29 MTD SCR:SHLDR:.368x.113:TT:1/4-20738-04184ASCR:SHLDR:.368x.113:TT:1/4-20
30 738-05082SPCR:SHLDR:.970 x .190
31 738-05088SPCR:SHLDR:DBL:.750 x .145
32 742-04308BLADE:CUT:21:23" 2 IN 1:ECON
33 747-05141AROD:LIFT:DECK:FRT:12.7
34 747-06538ROD DECK BRAKE
35 748-04069CUP:PIVOT:DECK LIFT
36 MTD SPCR:SHLDR:IDLR748-05029ASPCR:SHLDR:IDLR
37 748-05037ASPCR:SHLDR:IDLR PIVOT
38 MTD SPCR: .260 X .375 X 1.030 LG750-0566ASPCR: .260 X .375 X 1.030 LG
39 750-06184SPCR:.385 ID x 1.75 OD x .585
40 MTD BELT:V:A:96.5:ARAM:C2754-04060CBELT:V:A:96.5:ARAM:C2
41 756-05034PUL:IDLR:4.50" DIA
43 MTD PLUG DECK WASH783-06464PLUG DECK WASH
44 MTD CAP:PULLEY:HD783-08389CAP:PULLEY:HD
45 783-08510
46 783-08654CBRACKET IDLER
