Cub Cadet Z-Force SZ 48 17AIDGHB010 (2014) Steering column Ricambi

Articolo numero:
603-04931A
Posizione:
2
Modell Year:
Z-Force SZ 48 / 2014 Z-Force SZ 48 / 2014
34.55 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
yellow Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

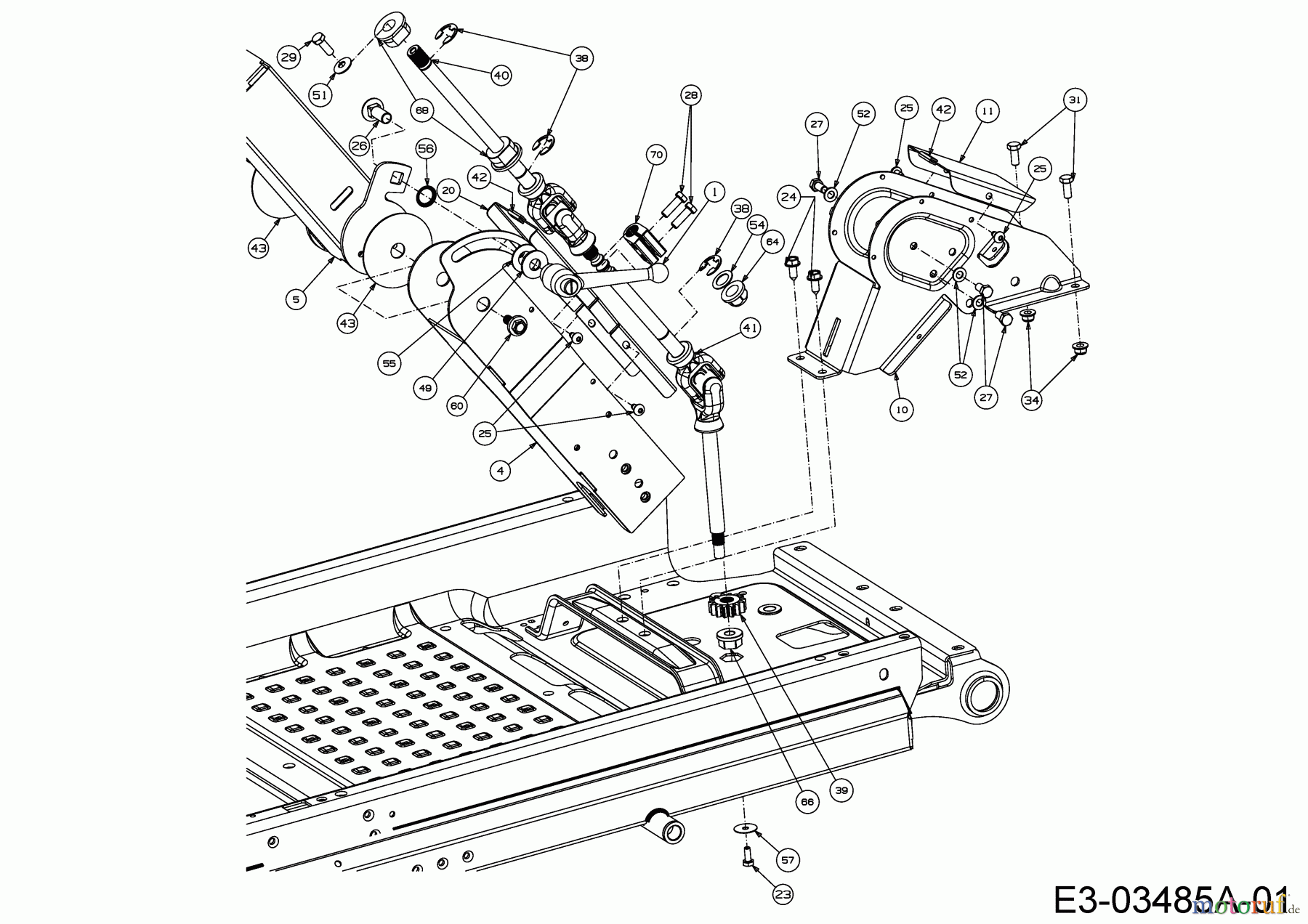

Cub Cadet Zero Turn Z-Force SZ 48 17AIDGHB010 (2014) Steering column
PosizioneArticolo numeroDescrizione
1 02005058LEVER ADJUST/LOCK STEERING
2 603-04931A
3 603-05040PEDAL ASM CRUISE/BRAKE
4 603-05076COLUMN ASM LOWER
5 603-05128
6 647-04270ASHAFT ASM FWD PEDAL
7 647-05042SHAFT REVERSE PEDAL
8 703-08604BRACKET PEDAL SHAFT
9 703-08606BRACKET PEDAL SHAFT
10 703-08621A
11 703-08622
12 703-08646A
13 703-08656BRACKET
14 703-08675
15 703-08678BLINK NEUTRAL RETURN
16 703-08690BEARING PLATE
17 703-08694A
18 703-08754A
19 703-09147Pedal
20 703-09279COVER STEERING
21 710-0106HHCS:1/4-20:1.25:GR5:SPEC
22 Cub Cadet HHCS:5/16-18:1.00:GR5:STD710-0376HHCS:5/16-18:1.00:GR5:STD
23 710-0433HHCS:1/4-20:.625:GR5:LOCK
24 Cub Cadet SCREW:TT:5/16-18:.750:HXINDWSH710-04484SCREW:TT:5/16-18:.750:HXINDWSH
25 710-05070SCR:TT:1/4-20:.5:PANTRXI:BLK
26 710-05375BOLT, CARR 3/8-16x1" PLTD
27 Cub Cadet HHCS:5/16-18:.625:GR5:LOCK710-0538HHCS:5/16-18:.625:GR5:LOCK
28 Cub Cadet HHCS:5/16-18:1.00:GR5:LOCK710-0643HHCS:5/16-18:1.00:GR5:LOCK
29 710-1245BHHCS:5/16-24:.875:GR8:LOCK
30 Cub Cadet SCREW HHCS:3/8-16:1.25:GR5:STD710-3005SCREW HHCS:3/8-16:1.25:GR5:STD
31 Cub Cadet SCREW HHCS:5/16-18:.75:GR5:STD710-3008SCREW HHCS:5/16-18:.75:GR5:STD
32 711-05068APIN:CLV:5/16 x 4.135
33 711-05670ROD-FRONT LINK MTG
34 Cub Cadet FLANGED NUT 5/16-18:GRF:NYLON712-04063FLANGED NUT 5/16-18:GRF:NYLON
35 Cub Cadet NUT:FLGLK:1/4-20:GRF:NYLON712-04064NUT:FLGLK:1/4-20:GRF:NYLON
36 Cub Cadet NUT:FLGLK:3/8-16:GRF:NYLON712-04065NUT:FLGLK:3/8-16:GRF:NYLON
37 Cub Cadet PIN-COTTER714-04040PIN-COTTER
38 Cub Cadet RING:E-TYPE:.750716-0231RING:E-TYPE:.750
39 717-04960GEAR STEERING 14 TEETH
40 717-05247SHAFT STEERING TOP
41 717-05248SHAFT LOWER STEERING
42 731-0511FAOM
43 731-09831WASHER
44 732-04748SPRING-BRAKE TENSION
45 732-04949SPRING TORSION LH
46 735-04117PAD:PEDAL:REVERSE
47 735-04118APAD:PEDAL:FORWARD
48 735-04136PAD:PEDAL:BRAKE
49 736-0179WASH:FLAT:.531x1.1250x.100
50 736-0192WASH:FL:.535 X .93 X .090
51 Cub Cadet WASH:BLVL:.340 x .872 x .060736-0242WASH:BLVL:.340 x .872 x .060
52 736-0264WASH:FLAT:.330 x.630x.0635
53 Cub Cadet WASH:THRST:.375x.700x.030736-0314WASH:THRST:.375x.700x.030
54 Cub Cadet WASH:SHIM:.634x1.000x.040:HD736-0337WASH:SHIM:.634x1.000x.040:HD
55 736-04602WASHER
56 Cub Cadet WASH:LOCK:SCHNORR 17X23.8X1.95736-0760WASH:LOCK:SCHNORR 17X23.8X1.95
57 736-3092WASH:FLAT:.265 x 1.0 x.030:HD
58 Cub Cadet SCR:SHLDR:.437 x .268:5/16-18738-0296SCR:SHLDR:.437 x .268:5/16-18
59 Cub Cadet BOLT:SHLDR:.500 x.270:3/8-16738-0380BOLT:SHLDR:.500 x.270:3/8-16
60 Cub Cadet SCR:SHLDR:.625x.175:3/8-16738-04130ASCR:SHLDR:.625x.175:3/8-16
61 738-04483SPCR:SHLDR:.375x.625x.20
62 738-04552ASPACER-PULLEY
63 738-0929HEX CAP SCREW,1/2-13X1.75
64 Cub Cadet HEX FLANGE BEARING741-0225HEX FLANGE BEARING
65 Cub Cadet BRG:FLG:.630 ID X.695 OD x.60741-0495BRG:FLG:.630 ID X.695 OD x.60
66 741-05052FLANGE BEARING
67 747-05654AROD:CONT:BRAKE
68 748-0209Bearing flange
69 748-04203LATCH:CRUS
70 748-05045COUPLING STEERING SHAFT
71 750-05635SPACER-PULLEY
