PIVOT LOCKOUT LINK

Articolo numero:
703-10600
Posizione:
13
DINNORM:
703-10600
Modell Year:
Z 5 Pro Series 60 / 2017
29.83 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Articolo aggiunto al carrello1
yellow Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

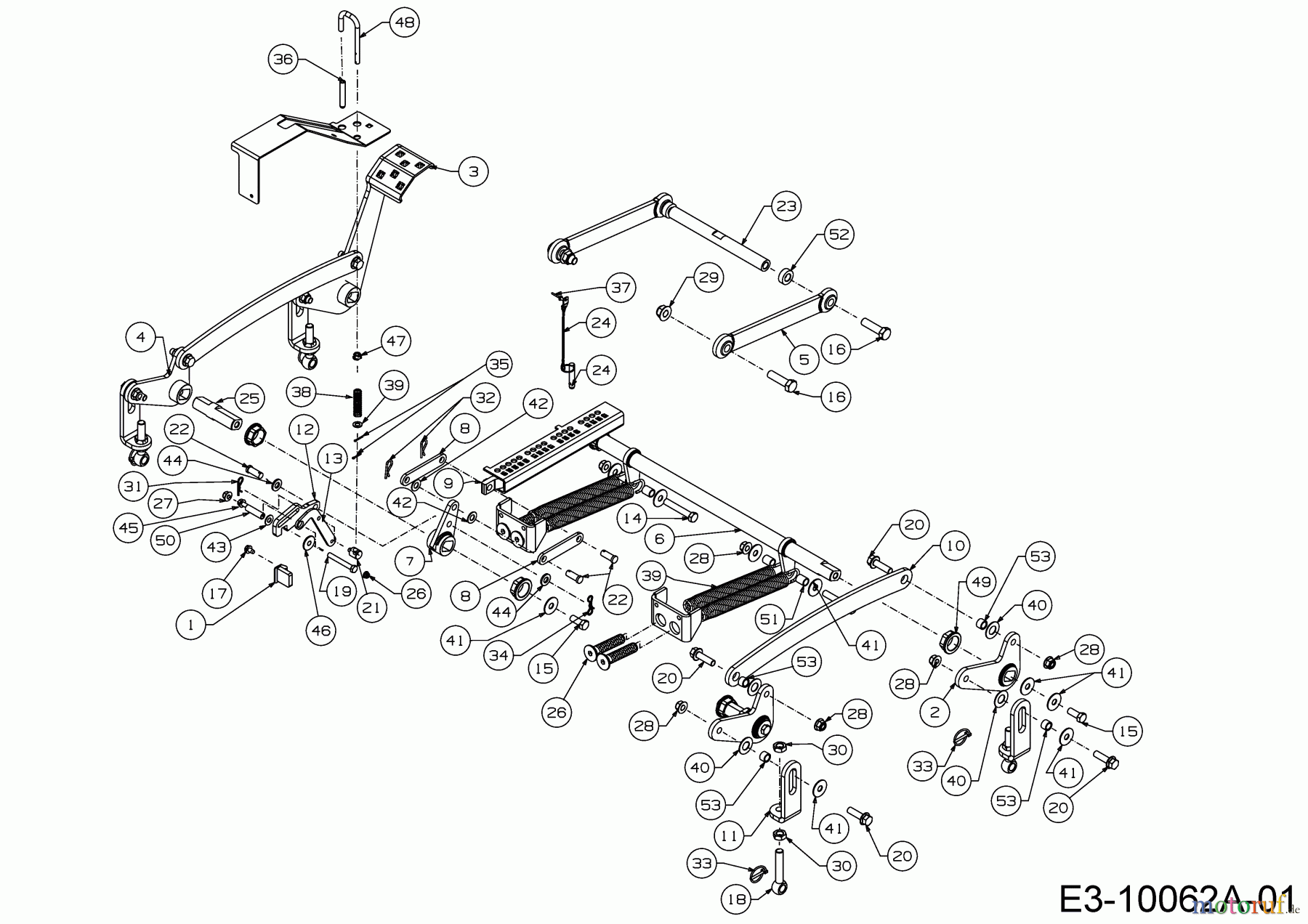

Cub Cadet Zero Turn Z 5 Pro Series 60 53RIHJUV603 (2017) Deck lift
PosizioneArticolo numeroDescrizione
1 680-00158
2 680-00375
3 680-00376
4 680-00393
5 680-00402
6 680-00444SHAFT ASM DECK LIFT FRONT
7 680-00445DECK LIFT HUB ASM LH
8 703-08384LINK
9 703-08388AARM SLIDER LIFT INDEX
10 703-10178
11 703-10224A
12 703-10599A
13 703-10600PIVOT LOCKOUT LINK
14 710-0182HHCS:1/2-13:3.00:GR5:STD
15 710-04186Screw
16 710-06047SCREW HEX HEAD 5/8-11X2.25
17 Cub Cadet SCREW:TT:5/16-18:.500:HXINDWSH710-0607SCREW:TT:5/16-18:.500:HXINDWSH
18 710-06428EYE BOLT 5/8-11X3.63
19 710-3022HHCS:3/8-16:2.75:GR5:STD
20 710-3067SCREW
21 711-04038FERRULE LIFT
22 711-04061ROD-FRONT LINK MTG
23 711-05072SHAFT DECK LIFT FRONT
24 711-05629POSITIONING BOLT
25 711-06610LIFT SHAFT LH
26 Cub Cadet NUT:FLGLK:1/4-20:GRF:NYLON712-04064NUT:FLGLK:1/4-20:GRF:NYLON
27 Cub Cadet NUT:FLGLK:3/8-16:GRF:NYLON712-04065NUT:FLGLK:3/8-16:GRF:NYLON
28 712-04150NUT:FLGLK:1/2-13:GRF:NYLON
29 712-04151LOCK NUT 5/18-11
30 712-3015Nut
31 Cub Cadet PIN:CLICK:.092 x 1.64 LG714-0145PIN:CLICK:.092 x 1.64 LG
32 Cub Cadet INTERNAL COTTER PIN714-0149BINTERNAL COTTER PIN
33 714-0220APIN:LYNCH:.1875
34 Cub Cadet PIN COTTER:BOW - TIE 91714-04043PIN COTTER:BOW - TIE 91
35 Cub Cadet PIN:COT:3/32 X .750714-0507PIN:COT:3/32 X .750
36 720-04183Handle
37 728-04016RIVET TUBULAR
38 732-0992Spring
39 Cub Cadet WASH-FLAT:.375x.738x.063736-0185WASH-FLAT:.375x.738x.063
40 Cub Cadet WASH:FLAT:.760x1.490X.060:HD736-0188WASH:FLAT:.760x1.490X.060:HD
41 736-0208WASHER-FL
42 Cub Cadet WASHER:FL:.510 X 1.000 X .060736-0272WASHER:FL:.510 X 1.000 X .060
43 Cub Cadet WASH:FLAT:.406 X .875 X.059736-0300WASH:FLAT:.406 X .875 X.059
44 736-0326WASH:FLAT:.510 x 1.000 x.125
45 738-04185SCR:SHLDR:FLG:.310X.995X1/4-20
46 Cub Cadet SPCR:SHLDR:.385x1.25x.3025738-04363SPCR:SHLDR:.385x1.25x.3025
47 Cub Cadet BRG:FLG:SNAP .385 ID741-0475BRG:FLG:SNAP .385 ID
48 747-06701DECK LOCK OUT ROD
49 748-3051BEARING-FLANGE
50 750-06031SPACER-PULLEY
51 750-06078SPACER
52 750-0960ASPACER .635X1.25X.445
53 750-1206BUSHING
