V-BELT DRIVE

Cub Cadet V-BELT DRIVE
Articolo numero:
754-04317A
Posizione:
29
DINNORM:
754-04317A
Description:
V TYP AX67
Modell Year:
XZ 2-42 / 2017 XZ 2-46 / 2017 XZ 2-50 / 2017
59.21 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Articolo aggiunto al carrello1
in magazzino in magazzino

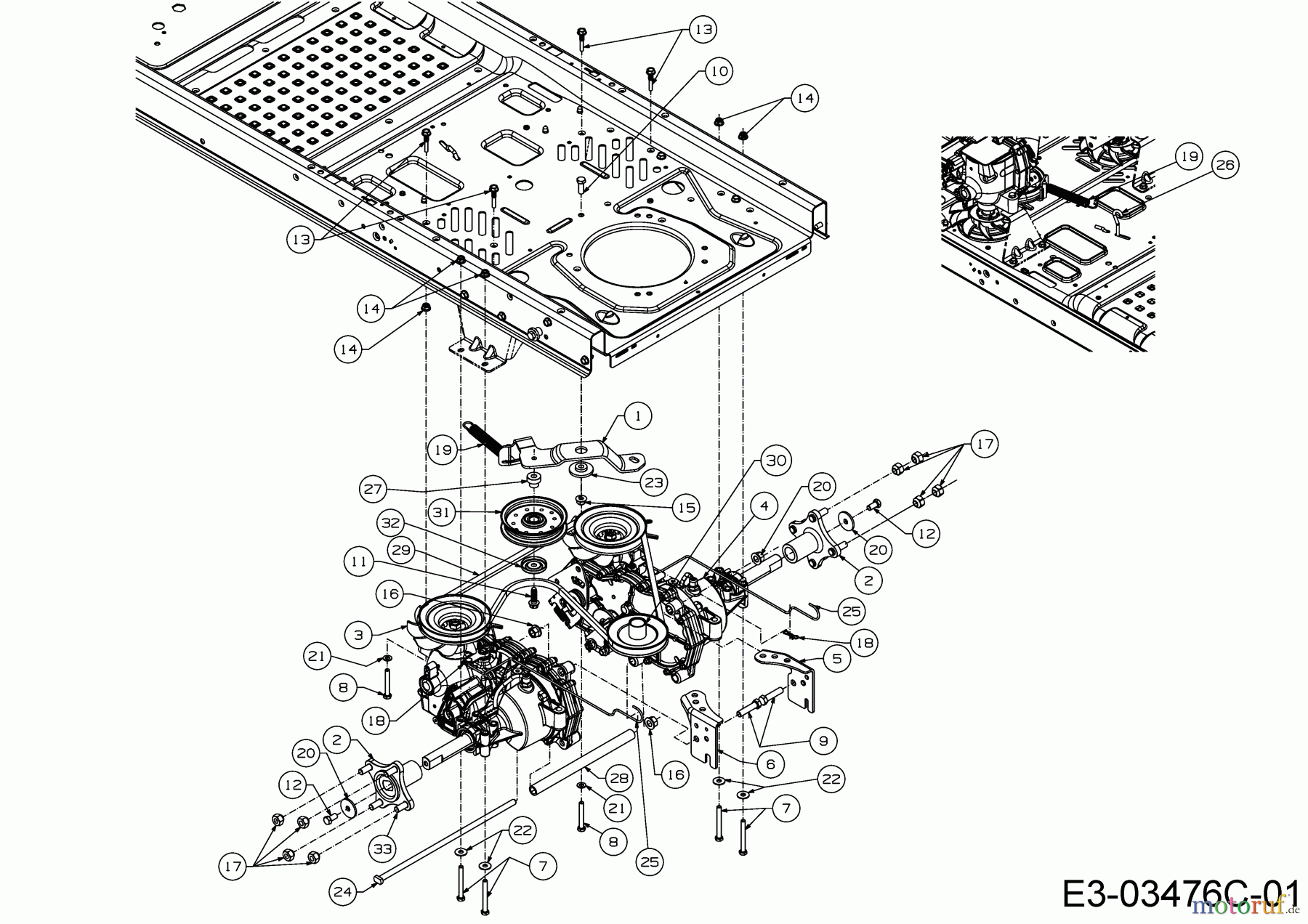

Cub Cadet Zero Turn XZ 2-46 17CICBDT603 (2017) Drive system
PosizioneArticolo numeroDescrizione
1 603-05256ARM ASM PTO IDLER
2 618-04317HUB ASM:WHL:DOUBLE D LONG
3 618-06996TRANSMISSION HYDRO LH
4 618-06997TRANS-EZT HYDRO RH
5 703-08614A
6 703-08615A
7 710-0176HHCS:5/16-18:2.75:GR5:STD
8 710-0395SCRE.HHCS:5/16-18:2.25:GR2:STD
9 710-04092HEX HEAD CAP SCREW
10 Cub Cadet HHCS:3/8-16:1.00:GR5:STD710-0514HHCS:3/8-16:1.00:GR5:STD
11 Cub Cadet SCR:TT:3/8-16:1.250:HXINDWSH:S710-1315SCR:TT:3/8-16:1.250:HXINDWSH:S
12 710-3119HHCS:3/8-16:.750:GR5:LOCK
13 711-06112GUIDE ASSY-BELT
14 Cub Cadet FLANGED NUT 5/16-18:GRF:NYLON712-04063FLANGED NUT 5/16-18:GRF:NYLON
15 Cub Cadet NUT:FLGLK:3/8-16:GRF:NYLON712-04065NUT:FLGLK:3/8-16:GRF:NYLON
16 Cub Cadet NUT:FLGLK:7/16-20:GRB:LOCK712-0459NUT:FLGLK:7/16-20:GRB:LOCK
17 Cub Cadet NUT:LUG:7/16-14712-3050NUT:LUG:7/16-14
18 Cub Cadet PIN-COTTER714-04040PIN-COTTER
19 732-05388SPRING-BRAKE TENSION
20 736-0227WASH:FLAT:.390x1.500x.134
21 736-0264WASH:FLAT:.330 x.630x.0635
22 736-0371WASH:THRST:.343 x .880 x .062
23 Cub Cadet SPCR:SHLDR:.8840 x .190738-04162CSPCR:SHLDR:.8840 x .190
24 738-04192BCONNECTING ROD
25 747-05657BROD HYDRO
26 747-06074ASPRING HOOK
27 Cub Cadet SPCR:SHLDR:IDLR748-05029ASPCR:SHLDR:IDLR
28 750-04561ATUBE-SUPPORT
29 Cub Cadet V-BELT DRIVE754-04317AV-BELT DRIVE
30 756-04494BPULLEY
31 Cub Cadet PUL:IDLR:4.25"DIA:HD756-05042PUL:IDLR:4.25"DIA:HD
32 Cub Cadet CAP:PULLEY:HD783-08389CAP:PULLEY:HD
33 710-0852STUD, RIBBED NECK
