MTD Accessories Mowing decks for 3000 SD series, Mowing deck 54"/137cm 19A-125-603 (2007) Mowing deck K (54"/137cm) Ricambi

SCR:CRG:3/8-16:GR5:5.00

Nota: Questo articolo è2 volte installato nel dispositivo, il prezzo è per pezzo!
Articolo numero:
710-1644
Posizione:
19
DINNORM:
710-1644
Description:
3/8-16X5.0
Modell Year:
für 3000 SD Serie, Mähwerk 54"/137cm / 2007 für 3000 SD Serie, Mähwerk 54"/137cm / 2007 für 3000 SD Serie, Mähwerk 54"/137cm / 2008 für 3000 SD Serie, Mähwerk 54"/137cm / 2009 für 3000 SD Serie, Mähwerk 54"/137cm / 2009 für 3000 SD Serie, Mähwerk 54"/13
non più disponibile

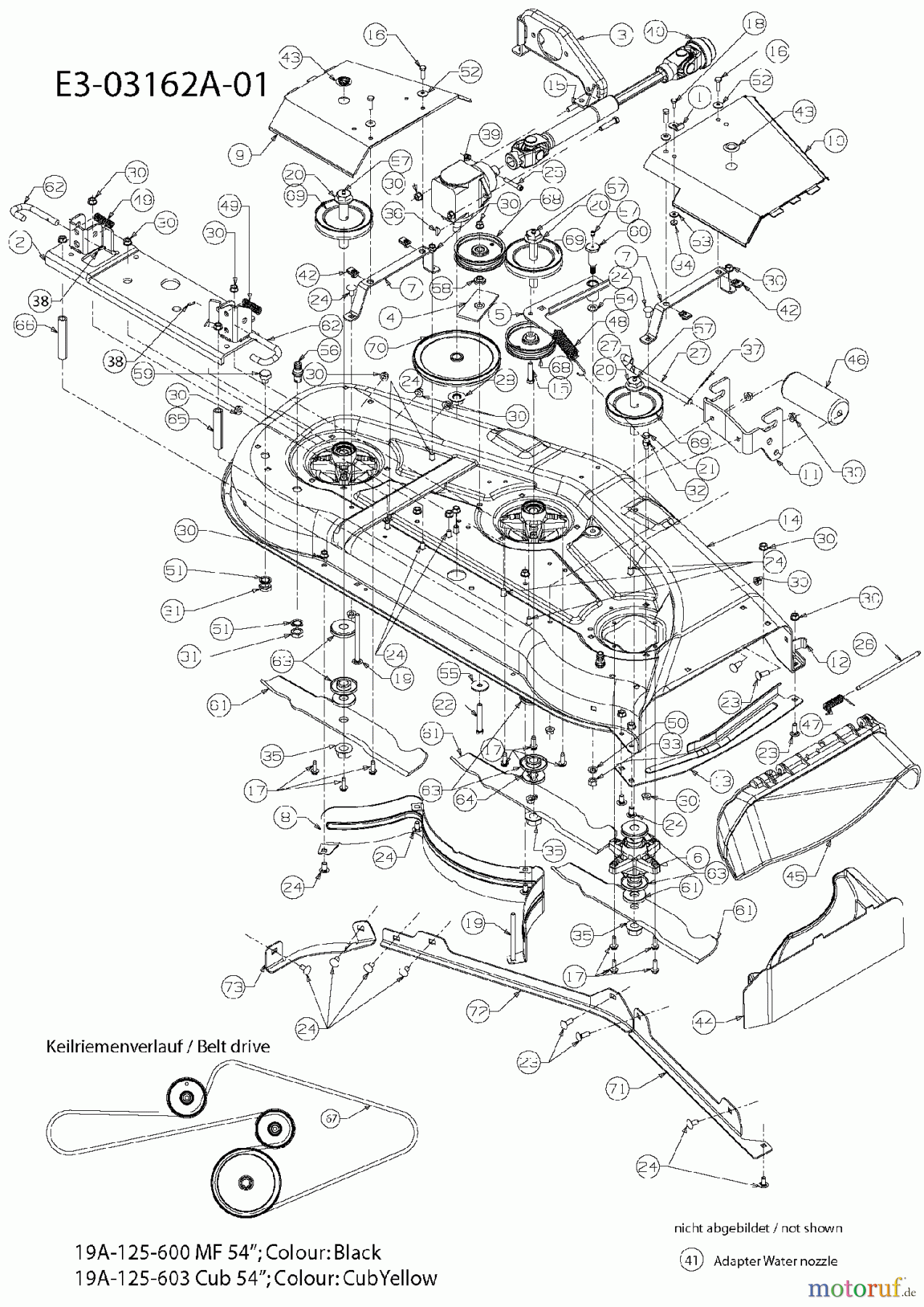

MTD Accessories Accessories garden and lawn tractors Mowing decks for 3000 SD series, Mowing deck 54
PosizioneArticolo numeroDescrizione
1 16606BRKT:HOOK:RETAINER
2 603-0460BRACKET ASSY-PUL MPOWDER BLACK
3 603-0607BRACKET-TRANS TORQUE
4 603-0646PLATE ASSY-SPACER
5 603-0694BRACKET ASSY-IDLER
6 MTD Accessories SPINDLE, BLADE ASSY.618-3129CSPINDLE, BLADE ASSY.
7 703-2072BRACKET
8 703-2093BAFFLE REAR INNER
9 703-2096BCOVER BELT LH
10 703-2097BGUARD-BELT
11 703-3043ABRACKET-FRONT ROLLER BARE
12 703-3279STOP:CHUT:DFL GALVANIZED
13 703-3511GUARD-FLYWHEEL
14 703-4133B
15 MTD Accessories HHCS:3/8-16:1.75:GR5:STD710-0347HHCS:3/8-16:1.75:GR5:STD
16 MTD Accessories HHCS:5/16-18:1.00:GR5:STD710-0376HHCS:5/16-18:1.00:GR5:STD
17 MTD Accessories SCR:TT:5/16-18:1.000:HXINDWSH710-0602SCR:TT:5/16-18:1.000:HXINDWSH
18 710-0751HHCS:1/4-20:.620:GR5:STD
19 710-1644SCR:CRG:3/8-16:GR5:5.00
20 710-1693SCREW-TAP
21 MTD Accessories SCREW HHCS:3/8-16:1.25:GR5:STD710-3005SCREW HHCS:3/8-16:1.25:GR5:STD
22 710-3066HHCS:3/8-16:2.75:GR8:STD
23 710-3168BOLT:CRG:3/8-16:1.00:GR5
24 MTD Accessories BOLT:CRG:3/8-16:0.75:SHRT NK710-3178BOLT:CRG:3/8-16:0.75:SHRT NK
25 710-3251SHCS:5/16-18:1.75:GR5
26 711-04565PIN HINGE:.3175 DIA x 14.06 LG
27 711-3314PIN, ROLLER
28 MTD Accessories NUT:FLG:5/8-18712-0417ANUT:FLG:5/8-18
29 MTD Accessories NUT:HEXLK:5/16-18:GR5:NYLON712-0429NUT:HEXLK:5/16-18:GR5:NYLON
30 MTD Accessories NUT:FLGLK:3/8-16:GRF:TOP LK712-0431NUT:FLGLK:3/8-16:GRF:TOP LK
31 MTD Accessories NUT:HEX:M16-1.5 DIN 936712-0641NUT:HEX:M16-1.5 DIN 936
32 712-3000NUT:HEXLK:3/8-16 GR.B CTRLK
33 712-3019Nut
34 MTD Accessories NUT:FLGLK:1/4-20:GRF712-3027NUT:FLGLK:1/4-20:GRF
35 MTD Accessories NUT:FLG:3/4-16:GR8712-3078NUT:FLG:3/4-16:GR8
36 714-0126KEY-HI-PRO:3/16 x 3/4 DIA
37 714-3004COTTER PIN:3/32 x 1.25
38 715-3003PIN, SPIROL SPRING
39 717-3447GEAR BOX ASSY-DECK
40 717-3453DRIVE SHAFT
41 721-04041ADAPER:WATER NOZZLE
42 726-0211NUT:U:5/16-18
43 726-3045PLUG,BUTTON
44 MTD Accessories PLUG:MULCH KIT:48/50/54" DECK731-04651PLUG:MULCH KIT:48/50/54" DECK
45 731-05652DFL:CHUT:48/50/54" EXPORT
46 731-3005ROLLER, FRONT AND REAR
47 732-04372SPR_TORSION:.44 ID x 2.0
48 MTD Accessories SPR:EXTN:1.010 OD x 6.500 LG732-0971SPR:EXTN:1.010 OD x 6.500 LG
49 732-3127COMPR. SPRING:0.66 OD x 1.9 LG
50 MTD Accessories WASHER:LOCK:7/16:REGULAR DUTY736-0171WASHER:LOCK:7/16:REGULAR DUTY
51 736-0225WASH:LOCK:5/8:INT TOOTH
52 MTD Accessories WASH:BLVL:.340 x .872 x .060736-0242WASH:BLVL:.340 x .872 x .060
53 MTD Accessories WASHER:BLVL:.265 x .750 x .060736-0270WASHER:BLVL:.265 x .750 x .060
54 736-3015WASH:FLAT: .469 x .875 x .105
55 736-3039WASH:FLAT:.406 x 1.5 x .105
56 737-04003CNOZ:DECK:WATER
57 MTD Accessories FTG:3/16:LNC:#70:DRIVE LUBE737-3000FTG:3/16:LNC:#70:DRIVE LUBE
58 MTD Accessories FLANGE BUSHING 1.00X.38X.38738-0372BFLANGE BUSHING 1.00X.38X.38
59 738-04146PLUG:BOLT:M16 x 1.5
60 738-3005AScrew
61 742-3013MOWER BLADE
62 747-3188ROD:HNDL:DECK RELEASE .5 DIA
63 MTD Accessories SPCR:SPDL:DECK748-3065ASPCR:SPDL:DECK
64 748-3101SPACER-PULLEY
65 750-3213SPACER
66 750-3214SPACER
67 MTD Accessories V-Belt754-0197V-Belt
68 756-3005PULLEY
69 756-3096PUL:SPDL:60" DECK
70 756-3097PULLEY-DECK DRIVE
71 783-1482INNER SHROUD
72 783-1483SKIRT DECK LH
73 783-1484SKIRT LH EXTENSION
