MTD Accessories Grass catcher for 600 series boxframe with mowing deck G (42"/107cm) 190-064-678 (1999) Basic machine Ricambi

BRACKET-SUPPORT-LH

Articolo numero:
16610C
Posizione:
20
DINNORM:
16610C-0637
Modell Year:
für 400 Serie / 1999 für 400 Serie / 1999 für 400 Serie / 1999 für 600 Serie Kastenrahmen mit Mähwerk F (38"/96cm) / 1999 für 600 Serie Kastenrahmen mit Mähwerk F (38"/96cm) / 1999 für 600 Serie Kastenrahmen mit Mähwerk F (38"/96cm) / 1999 für 600 Serie
non più disponibile

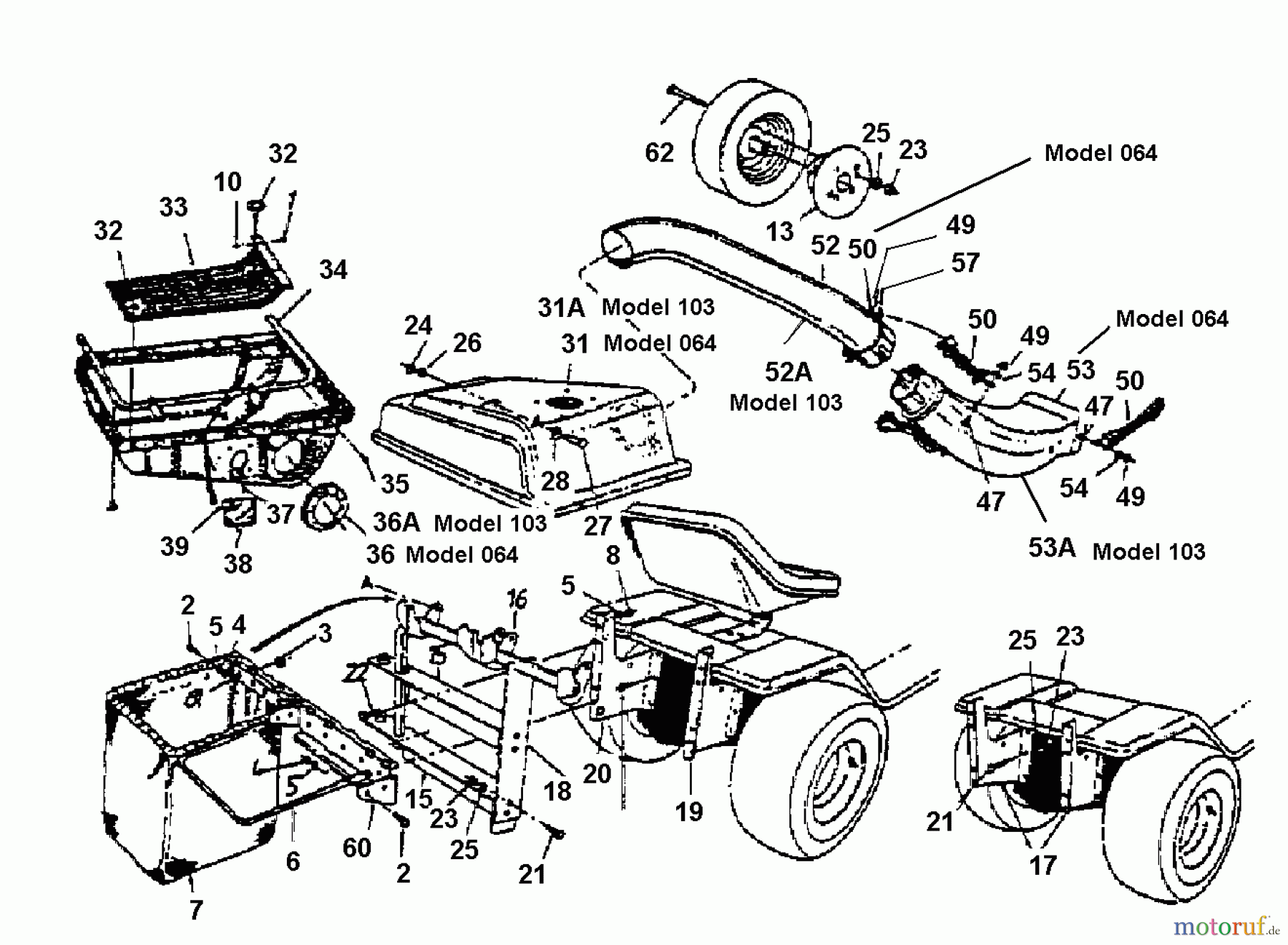

MTD Accessories Accessories garden and lawn tractors Grass catcher for 600 series boxframe with mowing deck G (42
PosizioneArticolo numeroDescrizione
1 728-0123POP RIVET 3/16 DIA x.450:STY1
2 710-0281SCREW-HEX
3 712-0272NUT SEMS:#10-24
4 712-0138NUT:1/4-28:GRA:HX
5 MTD Accessories WASHER:LOCK:1/4:REGULAR DUTY736-0329WASHER:LOCK:1/4:REGULAR DUTY
6 749-0701FRAME-GRASS BAG
7 MTD Accessories BAG-GRASS764-0221BAG-GRASS
8 712-0287NUT:HEX:1/4-20:GR2
10 736-0400WASHER:FLAT:.194 x .620 x .063
13 723-0414BWEIGHT-WHEEL-20LB
15 16587BBRACKET-MTG
16 16592TUBE ASSY-SUPPORT
17 16672ABRACKET-CATCHER SUP
18 16593ABRACKET-SUPPORT
19 16611CUSE 16611C-0637
20 16610CBRACKET-SUPPORT-LH
21 710-0118HHCS:5/16-18:.75:GR2:STD
22 710-0751HHCS:1/4-20:.620:GR5:STD
23 712-0267NUT:HEX:5/16-18:GR2
24 712-0798NUT:HEX:3/8-16:GR2
25 MTD Accessories WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
26 MTD Accessories WASH:LOCK:3/8:REGULAR DUTY736-0169WASH:LOCK:3/8:REGULAR DUTY
27 MTD Accessories BOLT:SHLDR:.500 x.270:3/8-16738-0380BOLT:SHLDR:.500 x.270:3/8-16
28 736-0253WASH:BLVL:.525 x 1.000 x.050
31 16594ACOVER ASSY-GRASS
31A 631-0007COVER ASSY-GRASS
32 726-0258ZIP TWIST FASTENER (FOR Ò 1/4
33 16847ASCREEN ASSY
34 16596BRACKET-SHIELD MTG
35 710-0776ASCREW-HEX WASH HD
36 723-0412SEAL (7.1")
36A 723-0413SEAL-OIL
37 710-0351SCR:B:#10-16:0.5":PANPHI
38 731-0824APLATE-PLASTIC
39 726-0244NUT
47 710-0258HHCS:1/4-20:.625:GR2:STD
49 712-0324NUT:HEXLK:1/4-20:GR8:NYLON
50 MTD Accessories ASM:STRAP:RETAINER723-0383ASM:STRAP:RETAINER
52 731-0899TUBE-CATCHER
52A 731-0926TUBE-CHUTE
53 MTD Accessories CONNECTING TUBE731-0827ACONNECTING TUBE
53A 731-0925CONNECTING TUBE
54 736-0175SPRING WASHER:.265 x.562 x.025
57 16606BRKT:HOOK:RETAINER
60 16591BRACKET-HITCH
61 710-0473SCR:MACH:#10-24:0.500:TRUSPHI
62 MTD Accessories HHCS:5/16-18:4.00:GR5:STD710-0190HHCS:5/16-18:4.00:GR5:STD
