MTD Accessories Grass catcher for 400 series 196-065-699 (2000) Grass box Ricambi

SCREW HHCS:5/16-18:.75:GR5:STD

Articolo numero:

710-3008

Posizione:

DINNORM:

FINISH:MTD STD 701-01000

Description:

5/16-18x0.75""

Modell Year:

für 600 Serie Kastenrahmen mit Mähwerk F (38"/96cm) / 2003 für 600 Serie Kastenrahmen mit Mähwerk F (38"/96cm) / 1999 für 600 Serie Kastenrahmen mit Mähwerk F (38"/96cm) / 2000 für 600 Serie Kastenrahmen mit Mähwerk F (38"/96cm) / 2001 für 600 Serie Kas

2.63 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

in magazzino

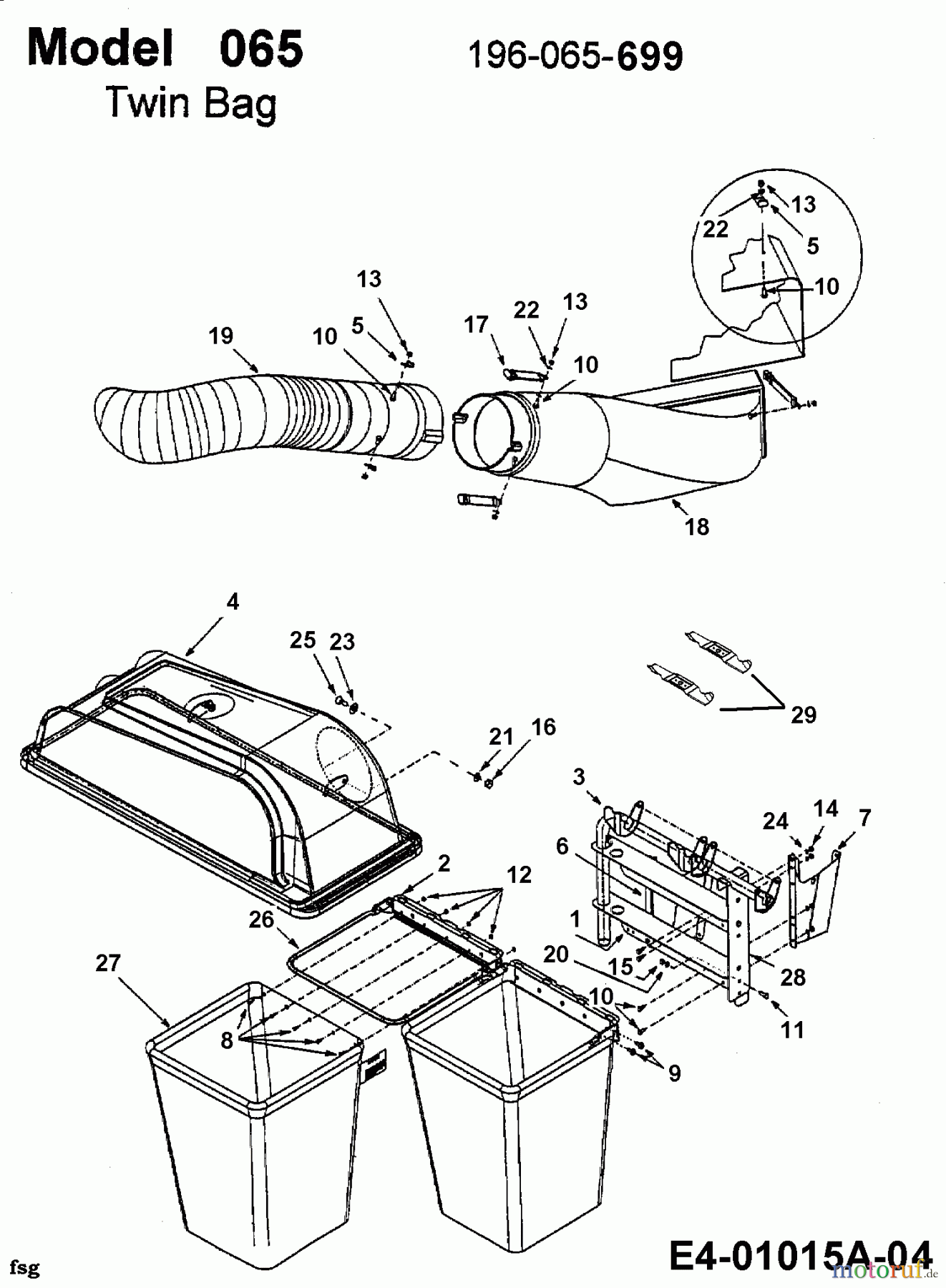

MTD Accessories Accessories garden and lawn tractors Grass catcher for 400 series 196-065-699 (2000) Grass box

Posizione	Articolo numero	Descrizione
1	16587D	BRACKET-MTG
2	16591	BRACKET-HITCH
3	16592	TUBE ASSY-SUPPORT
4	16594A	COVER ASSY-GRASS
5	16606	BRKT:HOOK:RETAINER
6	16610C	BRACKET-SUPPORT-LH
7	16611C	USE 16611C-0637
8	710-0473	SCR:MACH:#10-24:0.500:TRUSPHI
9	710-0604	SCREW TT:5/16-18:0.625HXINDWSH
10	710-0751	HHCS:1/4-20:.620:GR5:STD
11	710-3008	SCREW HHCS:5/16-18:.75:GR5:STD
12	712-0272	NUT SEMS:#10-24
13	712-0324	NUT:HEXLK:1/4-20:GR8:NYLON
14	712-3006	NUT:HEX:1/4-20:GR5
15	712-3010	NUT:HEX:5/16-18:GR5
16	712-3017	NUT:JAM:3/8-16:GR5
17	723-0383	ASM:STRAP:RETAINER
18	731-0827B	CONNECTING TUBE
19	731-0899A	TUBE-CHUTE
20	736-0119	WASHER:LOCK:5/16:SPLT:REG
21	736-0169	WASH:LOCK:3/8:REGULAR DUTY
22	736-0175	SPRING WASHER:.265 x.562 x.025
23	736-0255	WASH:BELL:.510x1.14x0.40
24	736-0329	WASHER:LOCK:1/4:REGULAR DUTY
25	738-0380	BOLT:SHLDR:.500 x.270:3/8-16
26	749-0701A	FRAME-GRASS BAG
27	764-0221	BAG-GRASS
28	783-0601	LINK
29	742-0646	BLADE
