MTD Accessories Spreader 45-01871 (190-438-000) 190-438-000 (2010) Basic machine Ricambi

ASSM-PITMAN

Articolo numero:
44462
Posizione:
4
DINNORM:
44462
Modell Year:
45-01871 (190-438-000) / 1999 45-01871 (190-438-000) / 2001 45-01871 (190-438-000) / 2010
non più disponibile

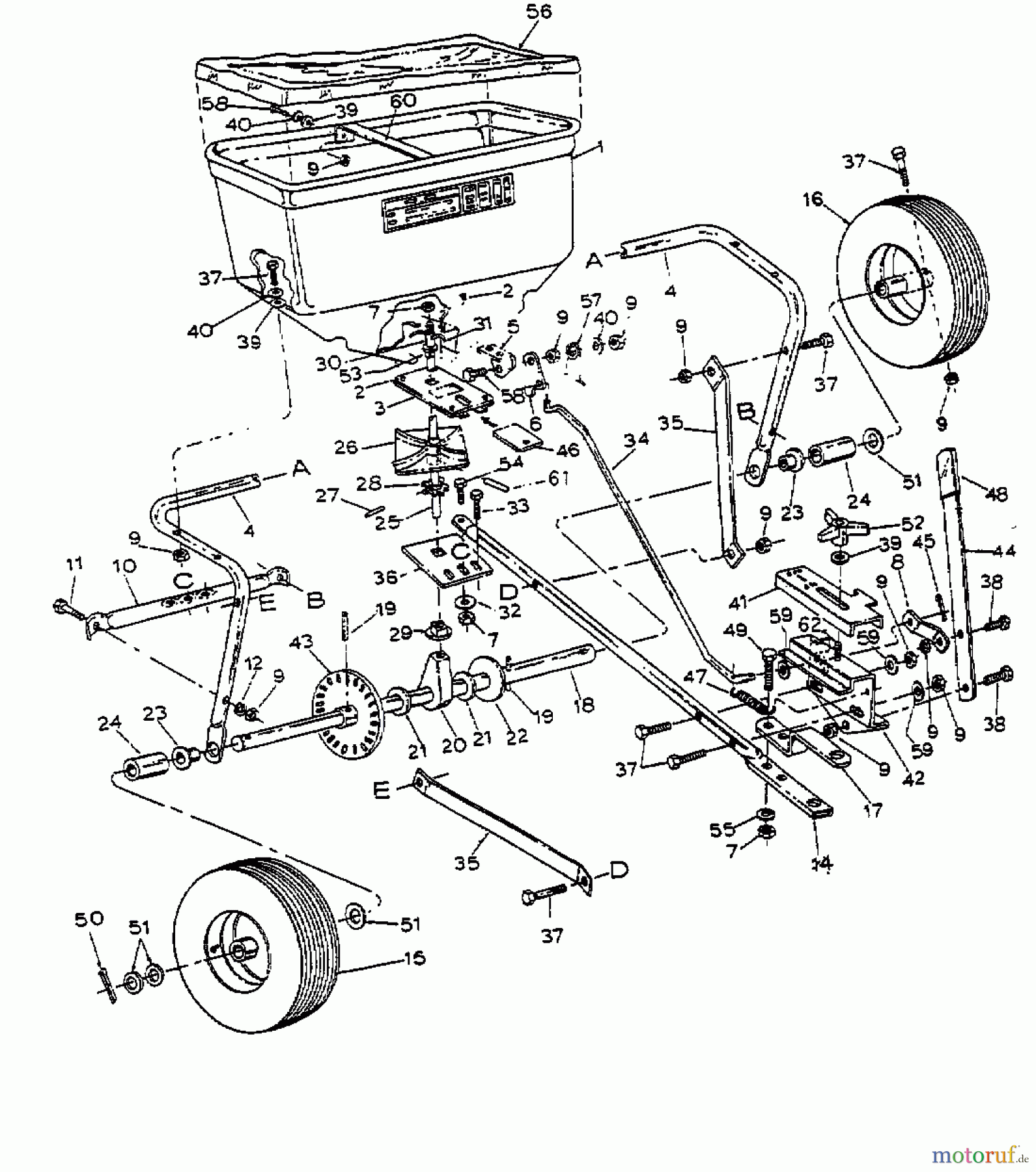

MTD Accessories Accessories garden and lawn tractors Spreader 45-01871 (190-438-000) 190-438-000 (2010) Basic machine
PosizioneArticolo numeroDescrizione
1 44480HOPPER
2 43882NIETE AUS KUNSTSTOFF
3 62482CAM ASSY. CONTROL
4 44462ASSM-PITMAN
5 23753BRACKET, GATE SLIDE ANGLE
6 23758CAM ASSY. CONTROL
7 43082STK-STOP-MUTTER 3/8-16"
8 23756ADAPTER-VALVE
9 AF-43013NUT HEX 1/4-20
10 43808LINK:LIFT
11 43084NUT-HEX 3/8-16X1-1/2
12 43086LOCK WASHER
13 43064SKT-STOP-MUTTER
14 44487tube
15 44458WHEEL ASSY
16 44459WHEEL ASSY
17 23687ZUGKLAMMER
18 23522CROSS SHAFT PIVOT PIN
19 43851ROLL PIN 3/4 X 1/8
20 43871WELLE F.BUCHSE
21 1540-032WASHER, FLAT 1.25x.78x.015
22 1540-162USE 736-0305
23 44798R,B-NSK-TK55-7
24 44474TUBING
25 23524SHAFT
26 AF-04367SPREADER PLATE
27 43850CLAMP SLEEVE
28 44468KETTENRAD 6 ZÄHNE
29 43852LAGERBUCHSE AUS NYLON
30 23766bush
31 43878ARM ASSY AGITATOR
32 736-0692WASH:FLAT:10,5 IDx20 OD DIN125
33 41576NUT-HEX 3/8-16X1-1/2
34 44469ROD-SHIELD PIVOT 30"
35 23525STIRRUP
36 23762231174
37 710-0136HHCS:1/4-20:1.75:GR5:STD
38 43866SKT-SCHR. 1/4-20X5/8"
39 1543-069WASHER-NYLON
40 43088WASHER, PLAIN 1/4"
41 23755HEIGHT ADJUSTMENT PLATE
42 AF-23754ASS`Y FLOW CONTROL MOUNT
43 62474PULLEY
44 23757SPRING ASSY
45 44101PIN, COTTER 3/32 x 3/4 PLTD
46 23533CAM ASSY. CONTROL
47 43000EXTENSION SPRING
48 43848HANDLE
49 43087SKT-SCHR.3/8-16X1 1/4"LG.
50 43093PIN-COTTER
51 43009USE 736-0300
52 43849KNOPF AUS PLASTIK
53 44285R,B-NSK-TK55-7
54 43054NUT-HEX 3/8-16X1-1/2
55 43003LOCK WASHER
56 43962KUNSTSTOFFABDECKUNG
57 44566SPRING TORSION
58 710-0252SCREW-HEX
59 R19111116SPACER
60 23697FASTENER
61 AF-46055TENSION SLEEVE 1/8"X1"LG
62 44950SCHLOßSCHR. 1/4-20X5/8"
