IMPELLER/AXLE ASSY.

Articolo numero:
AF-63701
Posizione:
16
DINNORM:
63701 Achse ca.485mm lg.
Modell Year:
45-0241 (196-030-000) / 1999 45-0241 (196-030-000) / 2001
non più disponibile

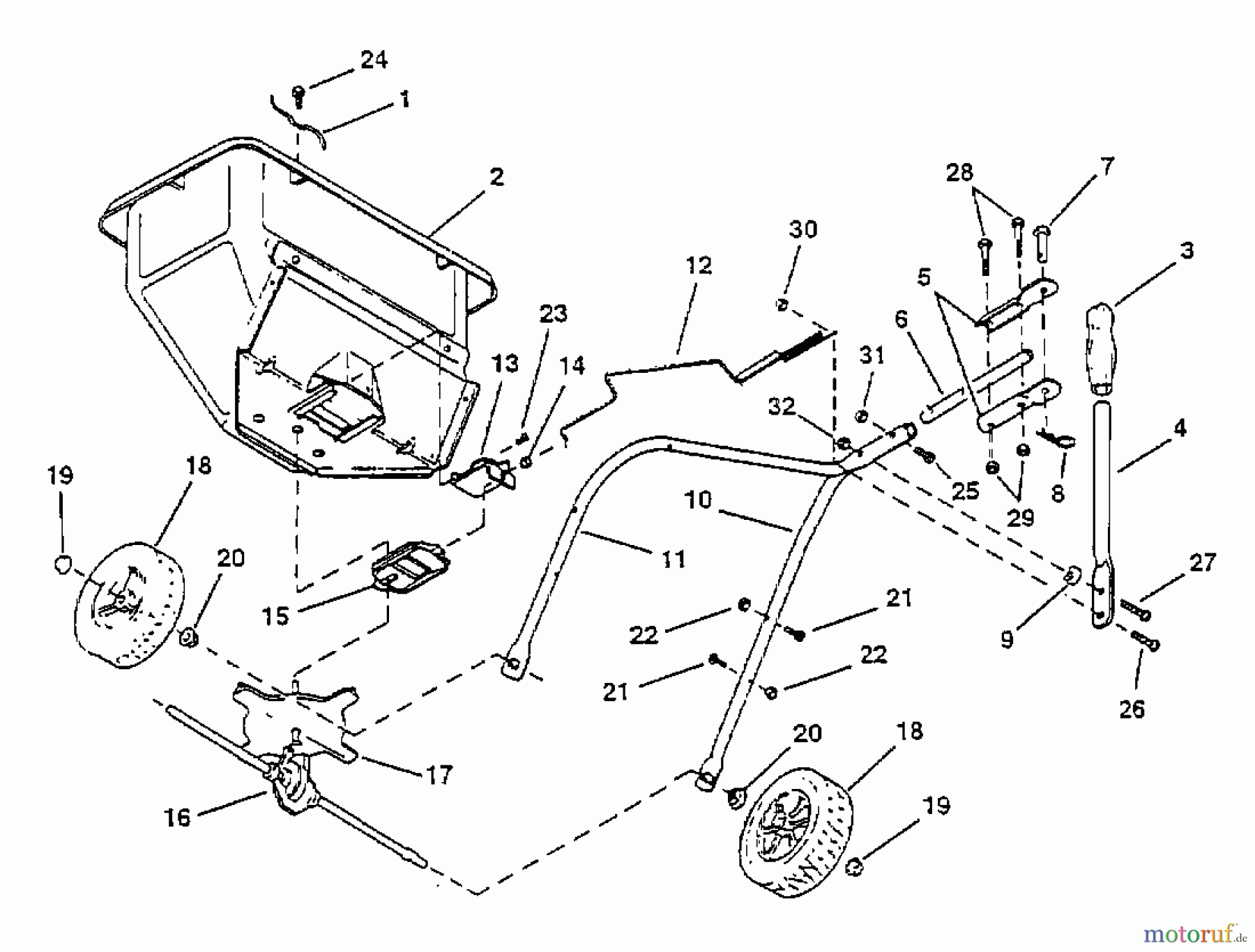

MTD Accessories Accessories garden and lawn tractors Spreader 45-0241 (196-030-000) 190-565-000 (1999) Basic machine
PosizioneArticolo numeroDescrizione
1 43878ARM ASSY AGITATOR
2 AF-63698POLY TRAY
3 AF-47183Handle
4 AF-47174CONTROL ARM
5 AF-24446BRACKET-CABLE
6 AF-47175TONGUE, (10 CU.FT.) .75" AXLE
7 AF-47184CLEVIS PIN
8 AF-47134CLEVIS PIN
9 AF-47181COVER
10 AF-47172LEG, RIGHT HAND
11 AF-47173LEG, LEFT HAND
12 AF-63761ASSY CONTROL ROD
13 AF-63699SETTING CAM BRACKET ASSY.
14 AF-47157BUSHING
15 AF-47109FEED SLIDE
16 AF-63701IMPELLER/AXLE ASSY.
17 AF-47124IMPELLER
18 AF-47168WHEEL,10" RUBBER
19 44663PLUG-EXPANSION
20 AF-47155BUSHING, BRUSH SHAFT
21 AF-47156SLOT HEAD BOLT 10-32X1-1/4"
22 43662SKT-MUTTER NR.10-32"
23 AF-47159SLOT HEAD BOLT 8X1/4"
24 AF-47126HEX HEAD SCREW
25 AF-47186Bolt
26 AF-47187Bolt
27 AF-47188PIN
28 43648NUT-HEX 3/8-16X1-1/2
29 AF-43013NUT HEX 1/4-20
30 AF-47189HEX LOK NUT,NYLON UNSERT1/4-20
31 43662SKT-MUTTER NR.10-32"
32 AF-47171USE 712-0375
