BRUSH, 26" SWEEPER 13-1/4"

Nota: Questo articolo è4 volte installato nel dispositivo, il prezzo è per pezzo!

Articolo numero:

AF-46780

Posizione:

DINNORM:

46780

Description:

45"

Modell Year:

45-02603 (190-163-000) / 2010

63.11 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Articolo aggiunto al carrello1

Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

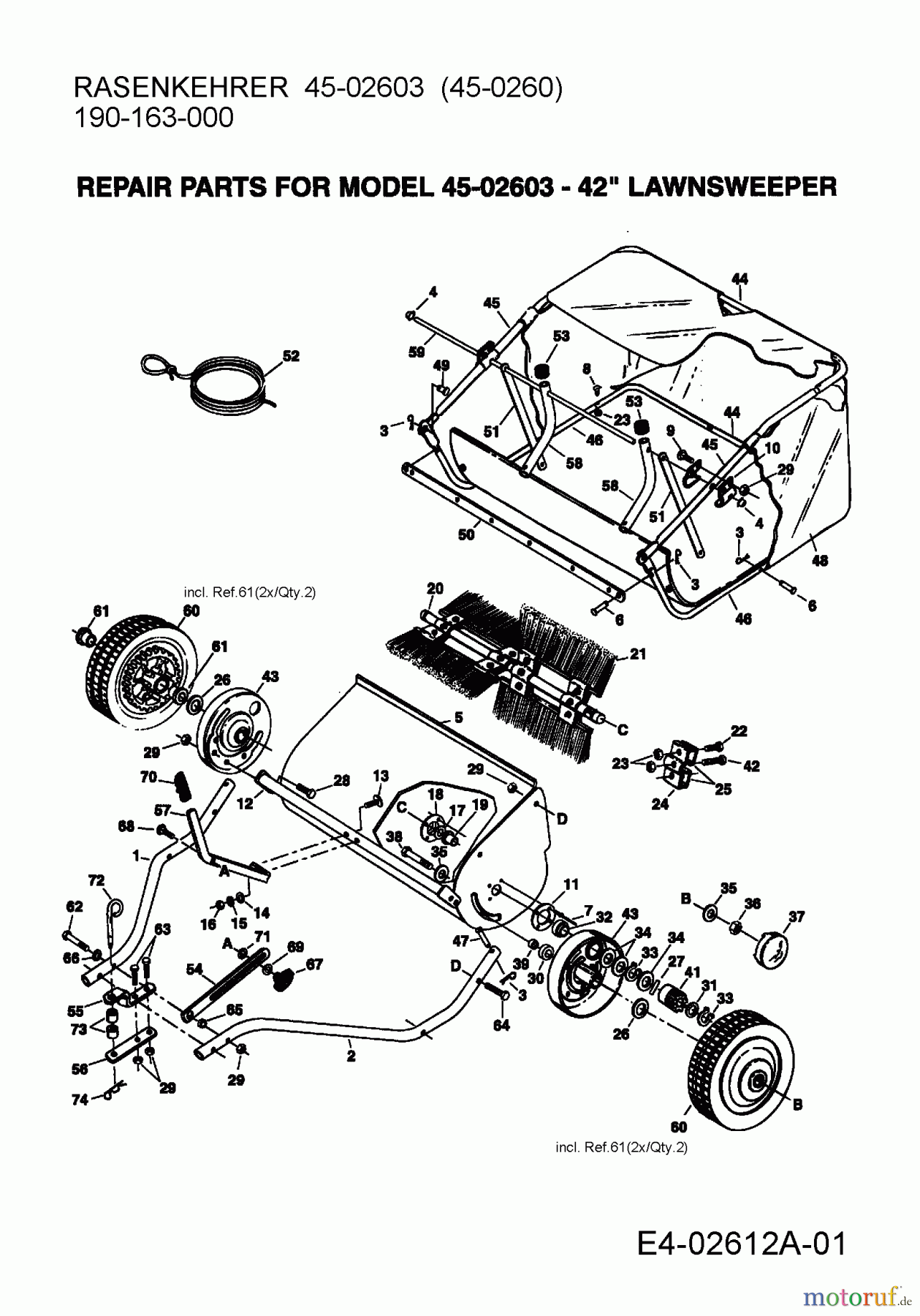

MTD Accessories Accessories garden and lawn tractors Sweeper 45-02603 (190-163-000) 190-163-000 (2010) Basic machine

Posizione	Articolo numero	Descrizione
1	AF-46776	LEG, RIGHT HAND
2	AF-46777	HITCH TUBE L.H.
3	AF-43055	PIN-COTTER
4	726-0100	CAP
5	AF-68163
6	AF-48365	Bolt
7	AF-C9M-5732	RIVET
8	AF-43978	BOLT-TORX HD
9	710-0451	BOLT:CRG:5/16-18:.750 GR1
10	AF-23331	CLAMP, HOPPER MT
11	AF-23336	WASHER, SPECIAL
12	AF-63463	HEIGHT ADJUSTMENT TUBE ASSY
13	AF-44947	BOLT, CVD HD 5/16-18x1-5/8
14	AF-44695	WASHER, BOWED 1x.32x.06
15	24.8195.56	SPRING LOCK WASHER/DIA 8
16	AF-43083	NUT, 5/16-18 PLTD
17	AF-R19212113	WASHER,5/8" SAE
18	AF-1629-56	RETAINER-BRG
19	AF-44910	BUSHING, BRUSH SHAFT
20	AF-24188	SHAFT, BRUSH - 42" HD
21	AF-46780	BRUSH, 26" SWEEPER 13-1/4"
22	710-0252	SCREW-HEX
23	AF-47189	HEX LOK NUT,NYLON UNSERT1/4-20
24	AF-23580	BRUSH RETAINER (DOUBLE)
25	AF-23581	BRUSH RETAINER (SINGLE)
26	AF-44008	WASHER FLAT
27	AF-47046	PIN DOWEL
28	710-3008	SCREW HHCS:5/16-18:.75:GR5:STD
29	712-3004A	NUT:FLGLK:5/16-18:GR5:SD LK
30	AF-44911	SPACER, .39 IDx1-1/4 ODx.50 LG
31	AF-44006	WASHER, FLAT .849x.598x.025 HT
32	AF-46219	SPACER
33	AF-1650-21	RING, RETAINING .594 ID
34	AF-44007	W-PLAIN-S
35	AF-141	WASHER
36	AF-1038	USE 712-0375
37	AF-2674-32	HUB CAP
38	AF-44961	BOLT ASSY-HEX
39	AF-23400	SPACER SHIFT KEY
40	AF-2692-6	DRIVE PINION R.H.
41	AF-2692-7	DRIVE PINION LH
42	AF-43661	BOLT, HEX 1/4-20x1 GR 5
43	AF-63027	ASS`Y, DUST COVER
44	AF-47477	TUBE,UPPER HOPPER FRAME
45	AF-49765	UPPER HOPPER FRAME TUBE
46	AF-48726	LOWER HOPPER FRAME TUBE
47	AF-46867	PIN, CLEVIS 1/4X1-3/4
48	AF-49768	HOPPER BAG ASSY.
49	AF-48366	Bolt
50	AF-24189	FIXATION STRIP, OUTSIDE
51	AF-25813	pivot plate
52	AF-43737	ROPE, HOPPER BLK 1/4"x10'(W/
53	AF-44481	CAP, VINYL
54	AF-24191	STRAP,HEIGHT ADJUSTMENT
55	AF-23687	BRACKET, HITCH
56	AF-24192	BRACKET,HITCH(STRAIGHT)
57	AF-24193	HEIGHT ADJUSTING LEVER
58	AF-49766	TUBE, BAG
59	AF-46823	ROD,HYDRO DISENGAGEMENT
60	AF-44985	ASS`Y, WHEEL & TITE COMPLETE
61	AF-45088	BEARING, WHEEL (38" SWEEP)
62	AF-46782	BOLT-TORX HD
63	AF-43224	BOLT-TORX HD
64	AF-43084	SCREW,HEX CAP
65	AF-46847	SLEEVE
66	AF-R19111116	WASHER. 1.59x1.032x.060
67	AF-43720	KNOB, WING 5/16-18 (x-9966)
68	AF-44326	BOLT, CARR 5/16-18x1" PLTD GR5
69	AF-43081	WASHER, 5/16" STD WRT PLTD
70	AF-43943	GRIP HT. ADJ 32"/38"
71	AF-44732	WASHER, TOOTH LOOK 5/16" ID
72	AF-23353	CLEVIS PIN
73	AF-23368	SPACER
74	AF-43343	PIN-COTTER
