Global Garden Products GGP Baujahr 2017 Benzin Mit Antrieb 2017 MP2 504 SV-R (Roller) Deck And Height Adjusting Ricambi

Or Ring

Articolo numero:

119035002/0

Posizione:

3.79 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Articolo aggiunto al carrello1

Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

Baujahr 2017

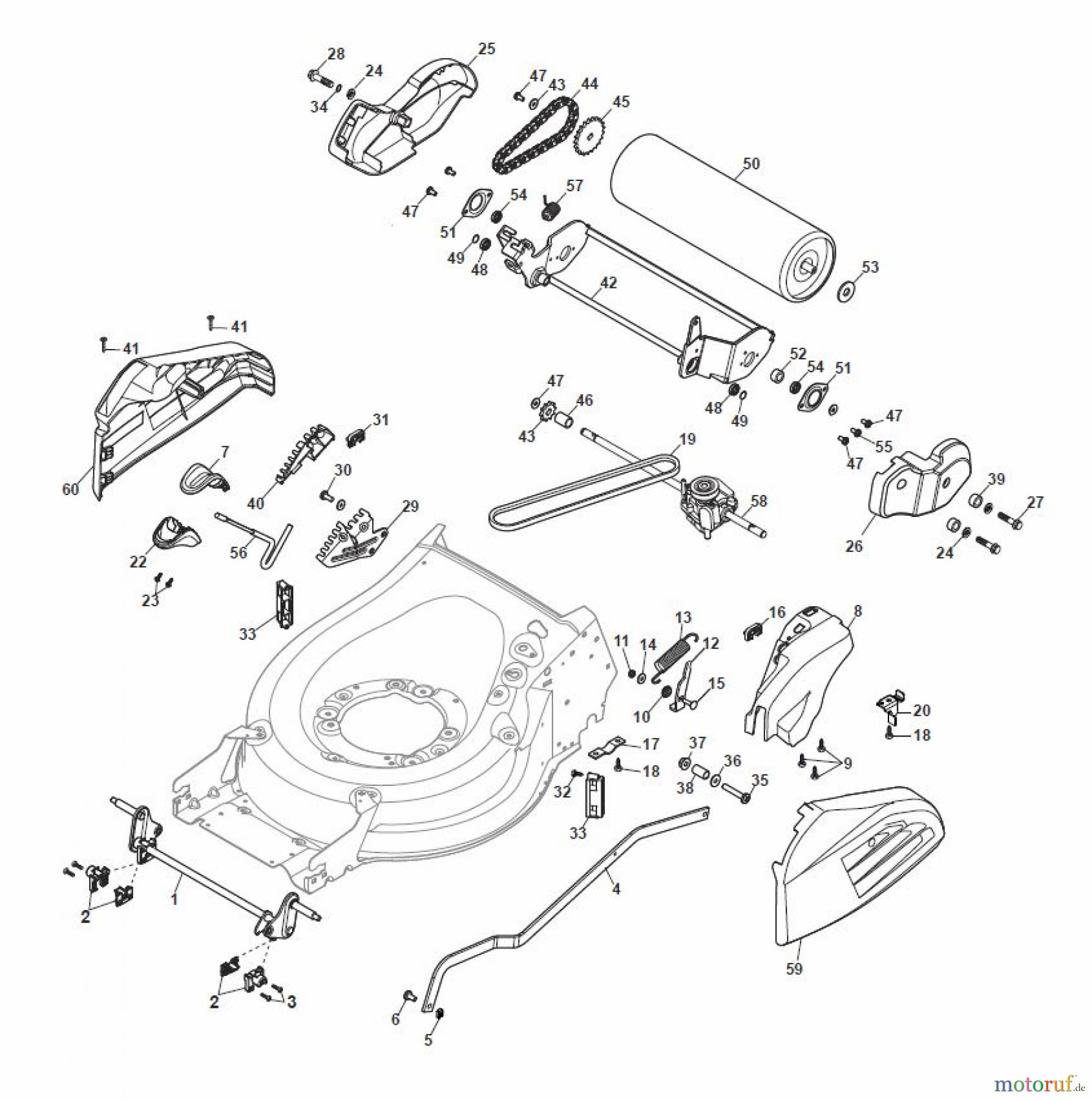

Posizione	Articolo numero	Descrizione
1	381302885/0	Front Wheel Axle
2	322785305/1	Support
3	112728697/0	Screw
4	322869719/0	Adjustment Rod
5	112436051/0	Plate
6	122519823/0	Pin
7	322394541/0	Cap
8	322055329/0	Cover
9	112728699/0	Screw
10	122517873/0	Pin
11	112154510/0	Nut
12	322778475/0	Bracket
13	122450780/0	Spring
14	112523040/0	Washer
15	112815270/0	Screw
16	322038407/0	Brass
17	322545147/0	Plate
18	112735654/0	Screw
19	135064393/0	Belt
20	322778491/0	Plate
21	122450478/0	Spring
22	322394537/0	Cap
23	112728706/0	Screw
24	112523040/0	Washer
25	322060272/1	Right Carter
26	322060273/1	Left Carter
27	112735592/0	Screw
28	112735594/0	Screw
29	322735605/0	Sector, Height Adjustment
30	112735654/0	Screw
31	118737864/0	Brass
32	112728706/0	Screw
33	322546053/0	Plate
34	119035002/0	Or Ring
35	112691200/0	Screw
36	122671651/0	Washer
37	112155015/0	Nut
38	122167840/0	Spacer
39	122170610/0	Spacer
40	322570216/0	Plate
41	112728696/0	Screw
42	381302907/0	Rear Wheel Axle
43	112523040/0	Washer
44	1111-3562-01	Chain
45	1111-3424-01	Sprocket
46	1111-3423-01	Sprocket
47	112735662/1	Screw
48	119216035/0	Bearing
49	112608600/0	Seeger
50	1111-3429-01	Roller
51	322207325/0	Bearing
52	122170820/0	Spacer
53	112523100/0	Washer
54	119216036/0	Bearing
55	112735664/0	Screw
56	322321551/0	Lever, Height Adjustment
57	122446194/0	Spring
58	181003121/0	Gear Box
59	322060276/1	Left Carter Red
59	322060280/1	Left Carter Green
59	322060296/0	Left Carter Black
59	322060294/0	Left Carter Black with Mountfiled Logo
60	322060275/1	Right Carter Red
60	322060279/1	Right Carter Green
60	322060295/0	Right Carter Black
60	322060293/0	Right Carter Black with Mountfiled Logo
