Global Garden Products GGP Benzin 2017 B 42 D Engine Ricambi

Outfit, Screws

Nota: Questo articolo è2 volte installato nel dispositivo, il prezzo è per pezzo!
Articolo numero:
112760475/0
Posizione:
58
2.94 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
yellow Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.
Baujahr 2017

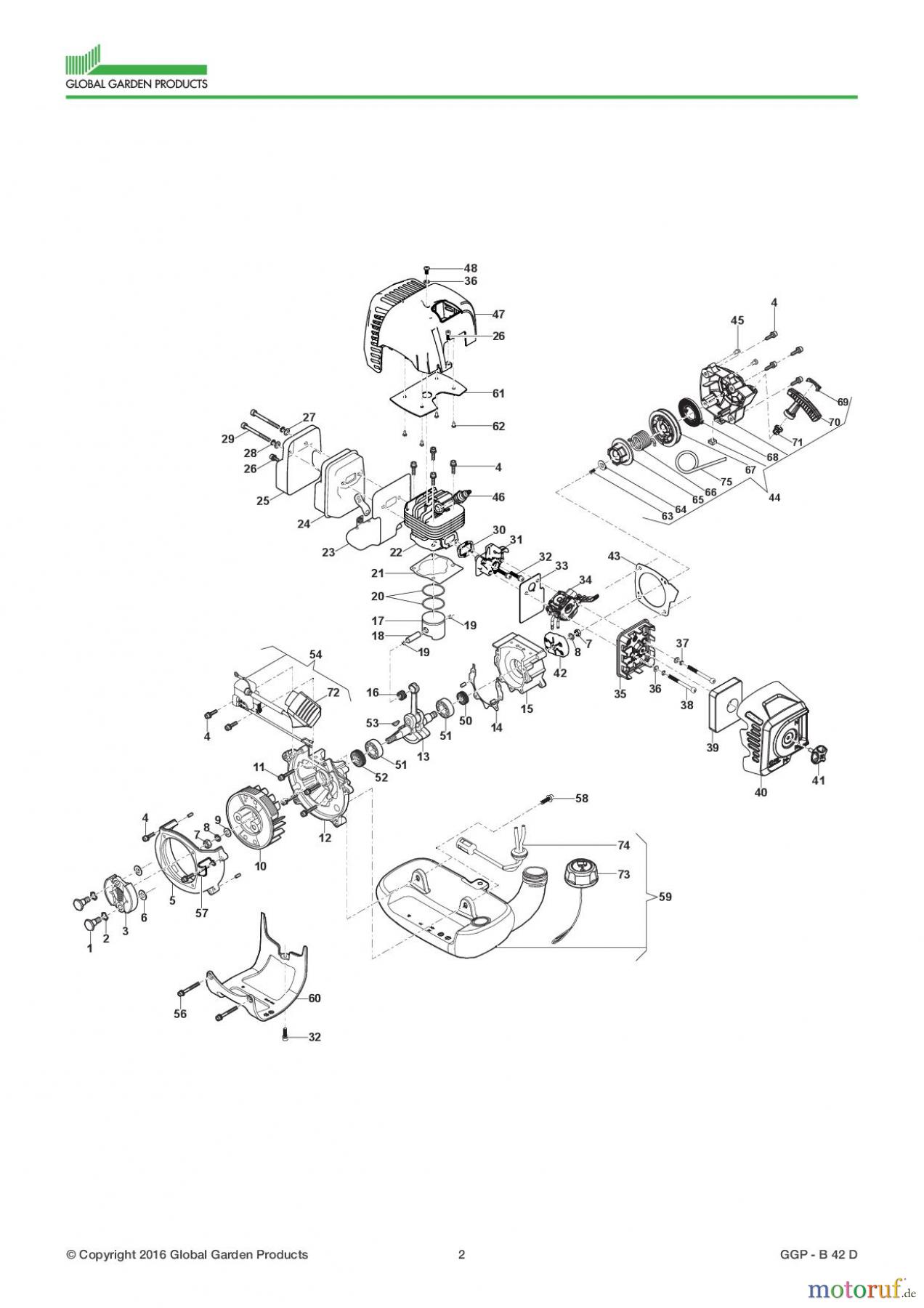

Global Garden Products GGP Motorsensen und Trimmer Benzin 2017 B 42 D Engine
PosizioneArticolo numeroDescrizione
1 118804038/0Screw
2 118804045/0Washer
3 118804000/0Clutch
4 112789008/0Screw
5 118804033/0Flywheel Cover
6 118804046/0Washer
7 112293200/0Nut
8 Global Garden Products GGP Elastic Washer 112369500/0Elastic Washer
9 112521350/0Washer
10 118804013/0Flywheel
11 2135130Screw
12 118804025/0Crank Case
13 118803989/0Crankshaft
14 118804079/0Crankcase Gasket
15 118804027/0Crank Case
16 118804018/0Needle Bearing
17 118804028/0Piston
18 118804039/0Piston Pin
19 118804049/0Circlip
20 118804022/0Piston Ring
21 118804080/0Cylinder Gasket
22 118804034/0Cylinder
23 118804085/0Muffler Gasket
24 118803992/0Muffler
25 118804048/0Muffler Guard
26 2135180Screw
27 112521330/0Washer
28 112582100/0Grower
29 118801180/0Screw
30 118804081/0Gasket
31 118804064/0Intake Manifold
32 6981102Outfit, Screws
33 118804083/0Carburetor Gasket
34 118804008/0Carburetor
35 118804063/0Air Cleaner Base
36 112521320/0Washer
37 112581500/0Grower
38 2135250Screw
39 118804074/0Air Filter
40 118803963/0Filter Cover White White
40 118803968/0Filter Cover Yellow Yellow
40 118803978/0Filter Cover Red Red
41 118803174/0Knob, Grey
42 118803996/0Starter Cup
43 118804051/0Gasket
44 118803993/0Starter Assy White Insert
44 118803994/0Starter Assy Yellow Insert
44 118803995/0Starter Assy Red Insert
45 112727356/0Screw
46 3210024Spark Plug
47 118803970/0Yellow Cylinder Cover Yellow
47 118803979/0Red Cylinder Cover Red
47 322055542/0White Cylinder Cover White
48 112727796/0Screw
50 118801188/0Seal Ring
51 3112040Ball Bearing
52 118804020/0Seal Ring
53 123072002/0Flywheel Key
54 118804010/0Ignition Assy
56 2135110Screw
57 118804055/0Wire Clamp
58 112760475/0Outfit, Screws
59 118804004/0Fuel Tank Assy
60 118803962/0Support
61 118804087/0Air Guide
62 112727815/0Screw
63 112727790/0Screw
64 112523020/0Washer
65 118803975/0Starter Cam
66 118804061/0Starter Spring
67 118803976/0Starter Pulley
68 118804060/0Spring
69 118804069/0Yellow Starter Plate Yellow
69 118804070/0Red Starter Plate Red
69 118804071/0White Starter Plate White
70 118803984/0Starter Handle
71 118804068/0Rope Guide
72 118803163/0Spark Plug Cap
73 322735152/0Oil Cap
74 Global Garden Products GGP Fuel Hose 118804005/0Fuel Hose
75 118803181/0Starter Cord
