Global Garden Products GGP Seitenauswurf 98-108cm 2017 SD 98 Steering for B&S Engine with Oil Filter Ricambi

Articolo numero:

125510109/0

Posizione:

4.62 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

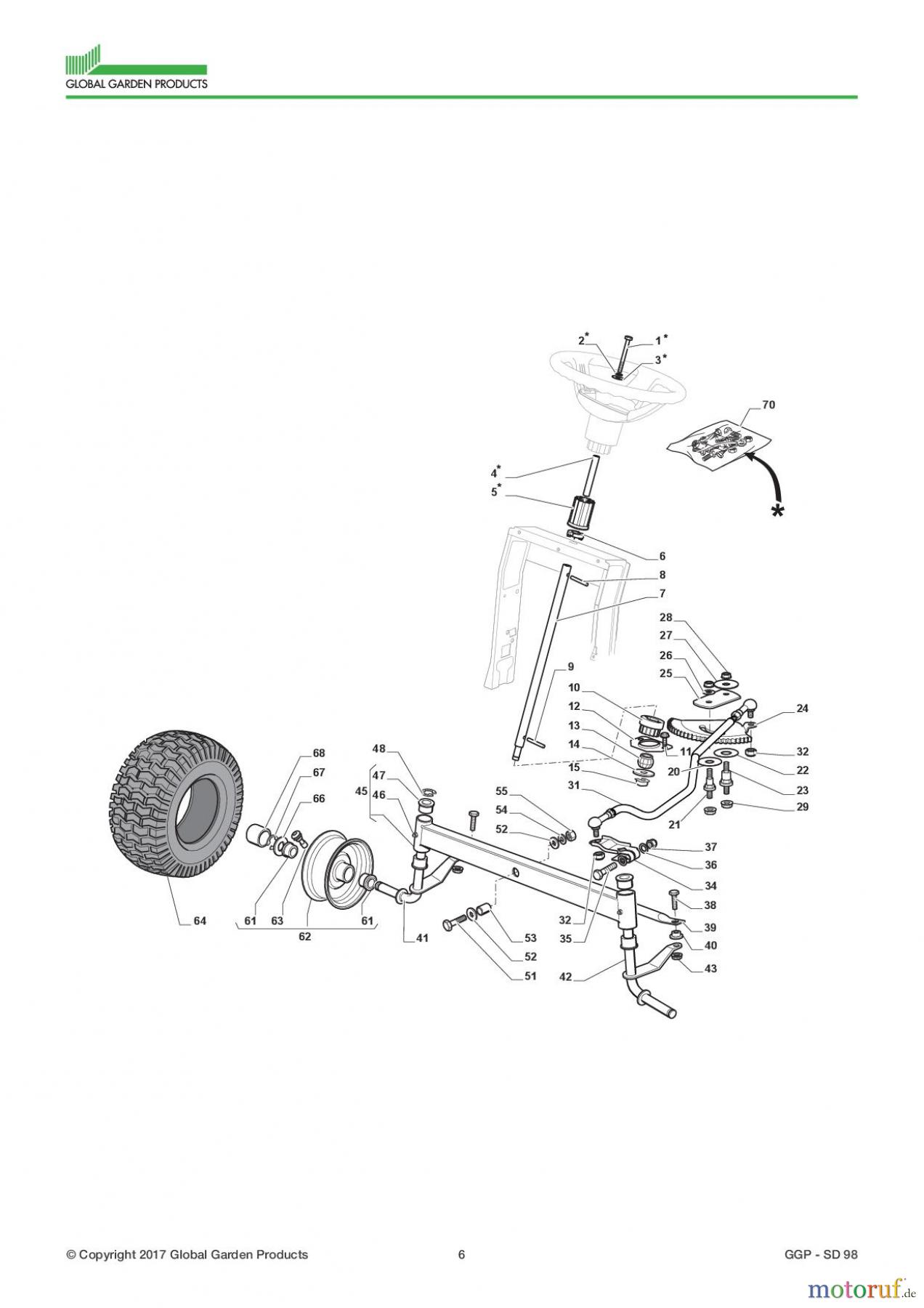

Posizione	Articolo numero	Descrizione
1	112692050/0	Screw
2	112540260/0	Grower
3	112523070/0	Washer
4	125160047/0	Spacer
5	325785318/0	Support
6	325038008/0	Bushing
7	125520007/0	Steering Column
8	112620300/0	Spring
9	112622650/0	Dowel pin
10	125570003/0	Pinion
11	127943051/0	Screw
12	325785213/1	Support
13	325743000/0	Joint
14	112521370/0	Washer
15	112436030/0	Plate
20	322672151/0	Antifriction Washer
21	125510104/0	Pin
22	125670023/0	Washer
23	125510109/0	Pin
24	325735519/0	Steering Sector
25	325547233/0	Plate
26	112369500/0	Elastic Washer
27	122160400/0	Elastic Disc
28	112155010/0	Nut
29	112155010/0	Nut
31	382000665/1	Steering Rod
32	112156602/0	Nut
34	325318243/0	Lever
35	112692390/0	Screw
36	112521360/0	Washer
37	112156602/0	Nut
38	125510103/0	Pin
39	325840029/0	Tie Rod
40	325038007/0	Bushing
41	382230369/0	Right Stub Axle 13" inch
41	382230373/0	Right Stub Axle 15" inch
42	382230371/0	Left Stub Axle 13" inch
42	382230375/0	Left Stub Axle 15" inch
43	112155000/0	Nut
45	382034030/0	Equalizer With Bush And Lubricator
46	112379511/0	Grease Dispenser
47	125034002/1	Bushing
48	112001010/0	Benzing Ring
51	112692695/0	Screw
52	112523100/0	Washer
53	125160016/1	Spacer
54	112587100/0	Grower
55	112295300/0	Nut
61	125122200/2	Bearing
62	182000598/0	Rimm
63	125950000/0	Valve
64	125590014/0	Tyre 13" inch
64	125590019/0	Tyre 15" inch
64	125590018/0	Tyre 13" inch - For Stiga Models
64	125590020/0	Tyre 15" inch - For Stiga Models
66	125670005/2	Washer
67	112001010/0	Benzing Ring
68	322110233/0	Hub Cover Standard Black Cover
68	322110240/0	Hub Cover Black with Stiga Logo
70	382180124/0	Outfit, Screws

Pin
