Columbia RD 11/660 131-5240 (1991) Drive system, Engine pulley, Pedal, Rear wheels Ricambi

SCREW-HEX

Articolo numero:
710-0316
Posizione:
33
Modell Year:
RD 11/660 / 1991
DINNORM:
710-0316
3.36 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
in magazzino in magazzino

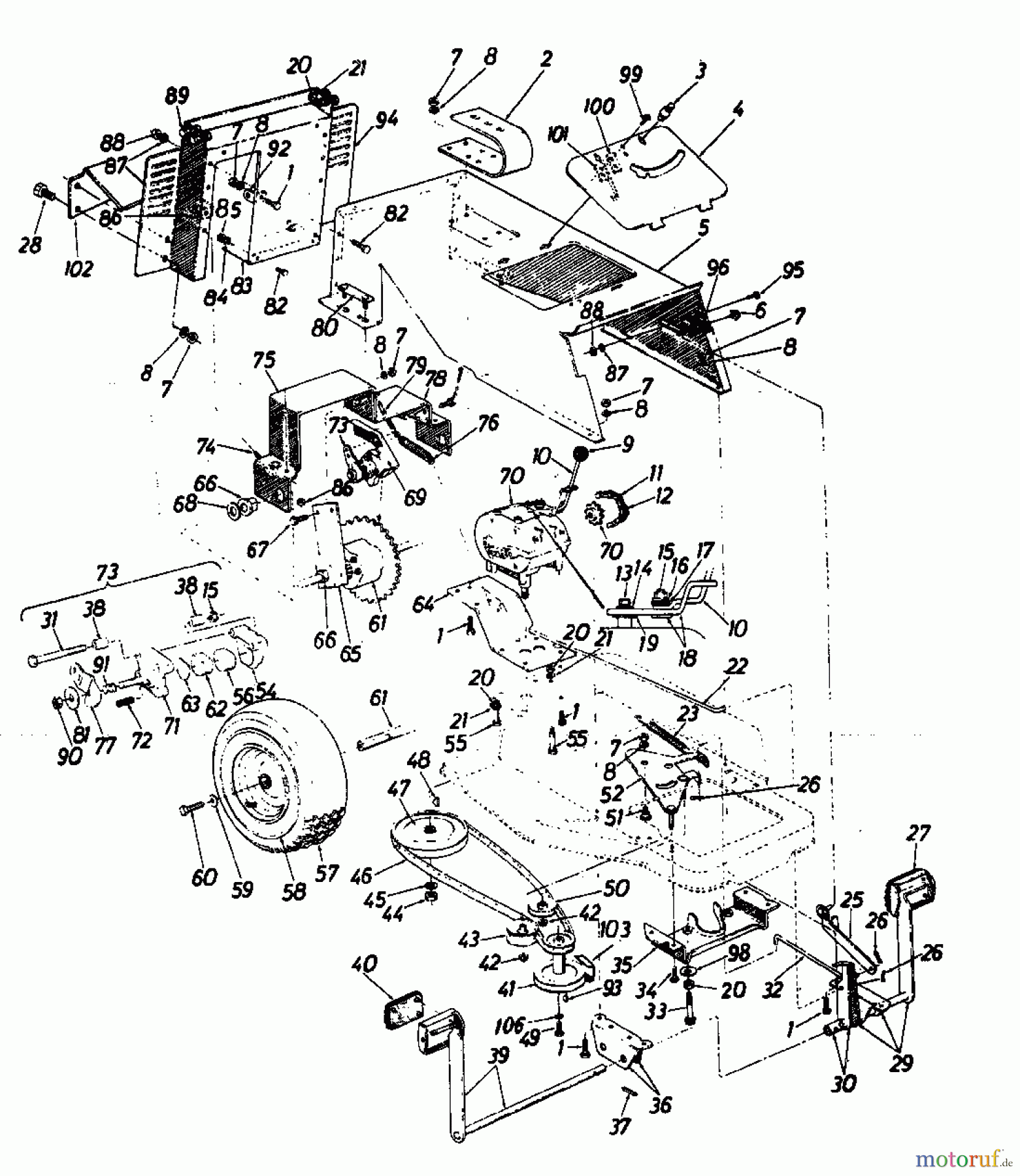

Columbia Lawn tractors RD 11/660 131-5240 (1991) Drive system, Engine pulley, Pedal, Rear wheels
PosizioneArticolo numeroDescrizione
2 732-0541SPRING-SEAT
3 726-0151FASTENER
4 12471AFENDER-RR
5 12450AFRAME-RR
6 726-0121CAP-PUSH 1/4 IN
7 712-0267NUT:HEX:5/16-18:GR2
8 Columbia WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
9 720-0165BALLGRIP
10 11545Shift rod
11 713-0189#420 CHAIN 1/2 PITCH
12 Columbia #420 MASTER LINK713-0154#420 MASTER LINK
13 710-0513BOLT
14 Columbia WASHER:BLVL:.265 x .750 x .060736-0270WASHER:BLVL:.265 x .750 x .060
15 712-0158NUT:HEXLK:5/16-18:GRA:CTRLK
16 736-0159WASH .349 ID X .879 OD X .063
17 735-0126WASHER-RUBBER
18 11548ABRACKET ASSY-SHIFT
19 717-0234WASHER-H
20 712-0798NUT:HEX:3/8-16:GR2
21 Columbia WASH:LOCK:3/8:REGULAR DUTY736-0169WASH:LOCK:3/8:REGULAR DUTY
22 747-0155ROD-PARK BRAKE
23 732-0233SPRING-TENSION
25 16023LOCKOUT ASSY.
26 Columbia PIN:COT:3/32 X .750714-0507PIN:COT:3/32 X .750
27 12379PAD-CLUTCH PEDAL
28 710-0118HHCS:5/16-18:.75:GR2:STD
29 12539PEDAL & BRKT ASSY
30 Columbia LEVER ASSY-BRAKE12486LEVER ASSY-BRAKE
31 Columbia HHCS:5/16-18:2.50:GR5:STD710-0378HHCS:5/16-18:2.50:GR5:STD
32 747-0156ROD-LOCKOUT
33 710-0316SCREW-HEX
34 710-0211SCREW-HEX SEMS
35 12488AGUARD ASSY-BELT
36 12534PEDALFÜHRUNG RECHTS
37 715-0114SPRING PIN
38 HH-11-03527SPACER,IDLER ARM PULLEY
39 12543BRAKE PEDAL SHAFT
40 12378BRAKE PEDAL PAD
41 756-0436PULLEY-ENGINE
42 Columbia NUT:JAMLK:3/8-24:GR2:NYLON712-0116NUT:JAMLK:3/8-24:GR2:NYLON
43 756-0217FL-IDLER W/ FLANGES 2.750 OD
44 712-0922NUT-HEX JAM
45 736-0921WASHER:LOCK:1/2:REGULAR DUTY
46 Columbia BELT-V754-0198BELT-V
47 756-0174PULLEY
48 714-0129KEY:HI-PRO:3/32 x 5/8 DIA
49 Columbia SCRE.HHCS:7/16-20:1.50:GR5:STD710-0757SCRE.HHCS:7/16-20:1.50:GR5:STD
50 756-0116PUL:IDLR:V TYPE X 3.06 DIA
51 Columbia SCR:SHLD:.435 X.178-5/16X.56738-0140SCR:SHLD:.435 X.178-5/16X.56
52 12484BRACKET ASSY-IDLER
54 HH-12-03293EXTERIOR BRAKE HOUSING
55 738-0129SCREW-SHLD
56 HH-15-03149PAD-FRICTION-D
57 734-0714TIRE-TUBELESS
58 734-0517RIM
59 Columbia WASH:BLVL:.340 x .872 x .060736-0242WASH:BLVL:.340 x .872 x .060
60 Columbia SCREW HHCS:5/16-24:.750GR5LOCK710-0627SCREW HHCS:5/16-24:.750GR5LOCK
61 717-0319DIFFERENTIAL ASSY
62 HH-15-02124PAD-FRICTION-D
63 HH-03-03303DISC-BACK UP-D
64 12853SEAT BASE
65 12508PLATE-AXLE-RR
66 Columbia BEARING-FLANGE741-0490BEARING-FLANGE
67 710-0322SCREW-HEX SEMS
68 736-0134WASH:FLAT:.812 x 1.38 x.100
69 Columbia BRACKET ASSY12482BRACKET ASSY
71 HH-12-03292INTERIOR BRAKE HOUSING
72 HH-05-03034PIN
73 761-0130BRAKE ASSY-DISC
74 710-0437ALINK-CHAIN ADJ
75 12460BRACKET-AXLE-RR-RH
76 732-0245SPRING-BRAKE
77 HH-18-03493LEVER, PARK BRAKE ENGAGEMENT
78 12459BRACKET-AXLE-RR-LH
79 732-0157SPRING-EXTENSION
80 10360PLATE ASSY-AXLE BOLT
81 HH-03-03022
82 710-0425SCR:MACH:#10-24:0.625:TRUSPHI
83 12537PLATE
84 736-0147WASHER-EXTERN L
85 712-0121NUT-HEX
86 Columbia NUT:HEXLK:5/16-18:GR5:NYLON712-0429NUT:HEXLK:5/16-18:GR5:NYLON
87 Columbia WASHER:LOCK:1/4:REGULAR DUTY736-0329WASHER:LOCK:1/4:REGULAR DUTY
88 712-0287NUT:HEX:1/4-20:GR2
89 738-0143SCR:SHLDR:.496x.336:3/8-16
90 Columbia NUT-HEX CENTER L712-0237NUT-HEX CENTER L
91 HH-06-03031spring
92 12541SUPPORT
93 Columbia KEY-HI-PRO714-0365KEY-HI-PRO
94 12544ACONNECTING FRAME GRASSCATCHER
95 710-0289HHCS:1/4-20:.50:GR2:STD
96 725-0577SWITCH-SAFETY
98 Columbia SPRING WASHER .401 x.870 x.063736-0105SPRING WASHER .401 x.870 x.063
99 Columbia SCR:AB:#8-18:0.500:HXINDWH710-0227SCR:AB:#8-18:0.500:HXINDWH
100 726-0222PLATE-INSULATOR NUT
101 725-0759Switch
102 15734BAFFLE-CHUTE
103 13980UNTERER KEILRIEMENSCHUTZ
106 Columbia WASHER:LOCK:7/16:REGULAR DUTY736-0171WASHER:LOCK:7/16:REGULAR DUTY
