Columbia RD 11/660 131-5240 (1991) Mowing deck 26"/66cm Ricambi

NUT:JAMLK:3/8-24:GR2:NYLON

Columbia NUT:JAMLK:3/8-24:GR2:NYLON
Articolo numero:
712-0116
Posizione:
89
Modell Year:
RD 11/660 / 1991 RD 11/660 / 1992
DINNORM:
FINISH:MTD STD 701-01000
3.79 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
yellow Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

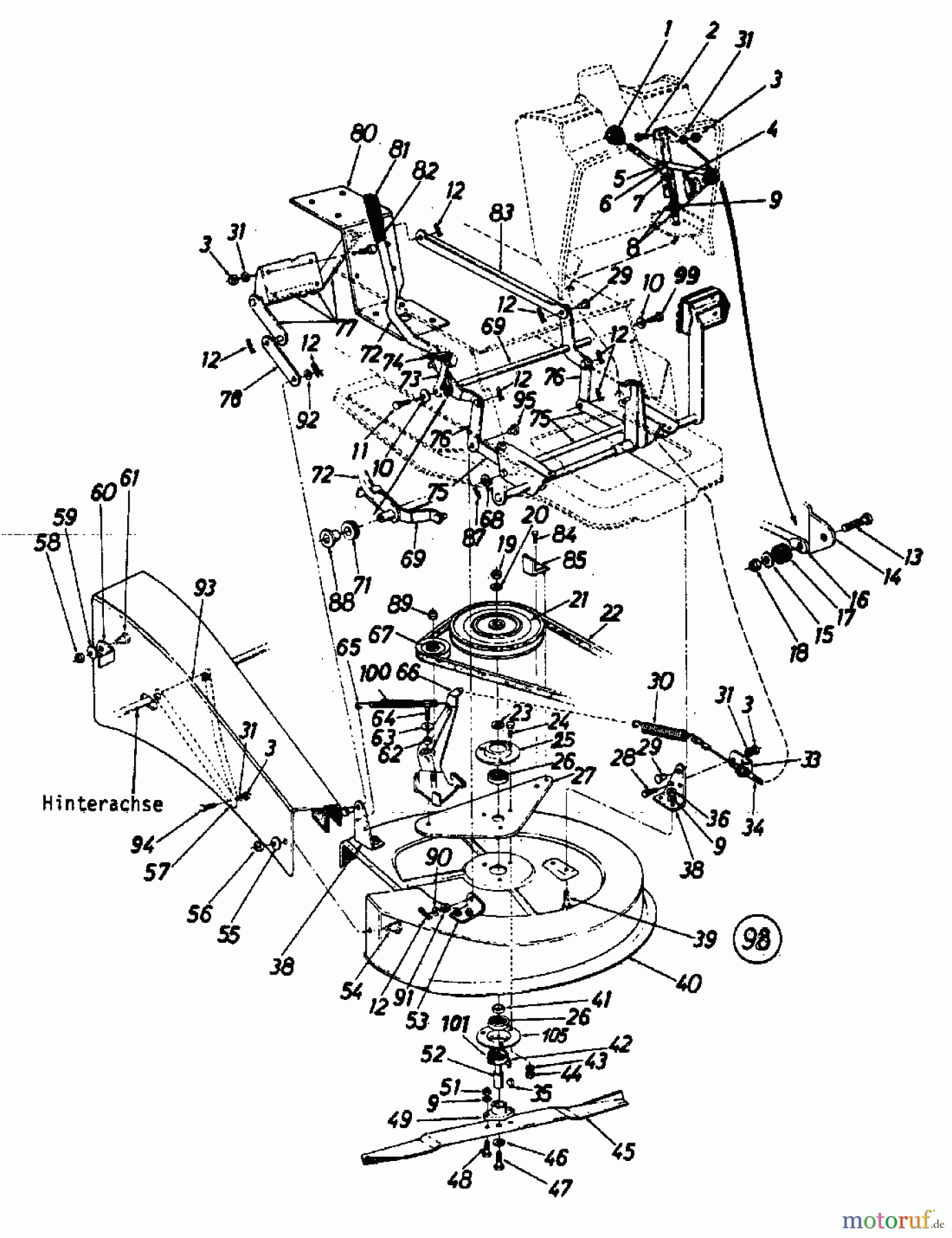

Columbia Lawn tractors RD 11/660 131-5240 (1991) Mowing deck 26
PosizioneArticolo numeroDescrizione
1 720-0165BALLGRIP
2 710-0286SCREW
3 712-0287NUT:HEX:1/4-20:GR2
4 725-0465ASWITCH-SAFETY
5 710-0282SCHWEISSBOLZEN
6 Columbia CAP SPEED NUT726-0106CAP SPEED NUT
7 761-0145Terminal
8 712-0256NUT:JAM:5/16-24:GR2
9 Columbia WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
10 736-0219WASH:BELL:.389 x 1.120 x.030
11 Columbia SCR:TTSEMS:3/8-16:1.250:HXLWSH710-0502ASCR:TTSEMS:3/8-16:1.250:HXLWSH
12 Columbia PIN:COT:INT:.08 X 1.42714-0101PIN:COT:INT:.08 X 1.42
13 710-0106HHCS:1/4-20:1.25:GR5:SPEC
14 12476ABRACKET
15 736-0173WASH:FL:.28ID:.74OD:.063
16 747-0157LEVER-BLADE CLUTCH
17 735-0126WASHER-RUBBER
18 712-0107NUT-HEX CENTER L
19 712-0261NUT-HEX CENTER L
20 Columbia WASHER:LOCK:5/8:SPLT:REG736-0158WASHER:LOCK:5/8:SPLT:REG
21 756-0143PULLEY
22 Columbia BELT-V 1/754-0195ABELT-V 1/
23 748-0198SPACER
24 710-0322SCREW-HEX SEMS
25 Columbia BEARING HOUSING 1.85 ID08253BBEARING HOUSING 1.85 ID
26 Columbia BRG:BALL:.787IDx1.85ODx.551741-0919BRG:BALL:.787IDx1.85ODx.551
27 Columbia COVER PLATE12453COVER PLATE
28 710-0211SCREW-HEX SEMS
29 Columbia PIN:CLV:.50 DIA x.78 LG711-0332PIN:CLV:.50 DIA x.78 LG
30 732-0180EXTENSION SPRING
31 Columbia WASHER:LOCK:1/4:REGULAR DUTY736-0329WASHER:LOCK:1/4:REGULAR DUTY
33 12509BOWDEN CABLE FASTENER
34 746-0253CABLE-CLUTCH CONTROL
35 Columbia KEY-HI-PRO714-0365KEY-HI-PRO
36 712-0267NUT:HEX:5/16-18:GR2
38 12531USE 16707A-0637
39 Columbia BOLT:CRG:5/16-18:.750 GR1710-0451BOLT:CRG:5/16-18:.750 GR1
40 Columbia USE 12455-063712455USE 12455-0637
41 Columbia SPACER750-0142SPACER
42 714-0388KEY-WOODRUFF NR.61 3/16X5/8"
43 Columbia WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
44 712-0267NUT:HEX:5/16-18:GR2
45 Columbia BLADE-26"742-0255ABLADE-26"
46 Columbia WASHER:LOCK:3/8:HEAVY DUTY736-0217WASHER:LOCK:3/8:HEAVY DUTY
47 710-0459HHCS:3/8-24:1.5:GR5:STD
48 Columbia HEX SCR SPECIAL710-0888HEX SCR SPECIAL
49 748-0189ADAPTER-BLADE
51 712-0123NUT:HEX:5/16-24:GR2
52 Columbia WASH:BLVL:.340 x .872 x .060736-0242WASH:BLVL:.340 x .872 x .060
53 12532BRACKET-CHUTE-DECK
54 738-0183SCREW-SHLD .500X.215"
55 736-0140WASH:FLAT:.385 x.62 x.063
56 712-0375NUT:HEXLK:3/8-16:GRA:CTRLK
57 12464CHUTE ASSY
58 Columbia NUT:HEXLK:5/16-18:GR5:NYLON712-0429NUT:HEXLK:5/16-18:GR5:NYLON
59 Columbia WASH:BLVL:.340 x .872 x .060736-0242WASH:BLVL:.340 x .872 x .060
60 12541SUPPORT
61 Columbia SCR:SHLD:.435 X.178-5/16X.56738-0140SCR:SHLD:.435 X.178-5/16X.56
62 750-0258SPCR:.315 X .75 X .375LG
63 Columbia WASHER:FLAT:.344x1.125x.120736-0231WASHER:FLAT:.344x1.125x.120
64 Columbia HHCS:5/16-18:1.00:GR5:STD710-0376HHCS:5/16-18:1.00:GR5:STD
65 Columbia SPR:EXTN:.50 DIA x 6.37 LG732-0308SPR:EXTN:.50 DIA x 6.37 LG
66 12469ABRACKET ASSY-DECK
67 756-0116PUL:IDLR:V TYPE X 3.06 DIA
68 736-0116WASH:FLAT:.635 x.93 x.06
69 12472SHAFT ASSY-LIFT HDLE
71 735-0180WASHER-RUBBER
72 749-0174ASS`Y, LIFT HANDLE (WLDM)
73 12479LOCKING LEVER
74 11249KNOB-HGT ADJ
75 12477SHAFT ASSY-LIFT
76 10317ROD-SUPPORT
77 12502BRACKET ASSY
80 12853SEAT BASE
81 720-0233GRIP:HNDL:DECK LIFT
82 710-0258HHCS:1/4-20:.625:GR2:STD
83 12495LINK-CONNECTING
84 Columbia SCREW HHCS:5/16-24:.750GR5LOCK710-0627SCREW HHCS:5/16-24:.750GR5LOCK
85 10426GUARD ASSY-BELT
87 Columbia PIN:COT:3/32 X .750714-0507PIN:COT:3/32 X .750
88 748-0176FLANGE BEARING
89 Columbia NUT:JAMLK:3/8-24:GR2:NYLON712-0116NUT:JAMLK:3/8-24:GR2:NYLON
90 736-0160WASH:FLAT:.530x.930x.050
91 735-0185WASHER-RUBBER
92 736-0192WASH:FL:.535 X .93 X .090
93 12852BAFFLE-48 IN.DECK
94 710-0167SCR:CRG:1/4-20:.50:
95 711-0310CLEVIS PIN
98 12550DECK ASSY
99 710-0413SCREW-HEX F-TAP
100 731-0675TUBE
101 Columbia SHLD:BRG13703SHLD:BRG
105 15298A
