Spareparts
Gasket
Articolo numero:
090.03.996
Posizione:
396
Modell Year:
BM 100-2/G / 1985
DINNORM:
270571
non più disponibile

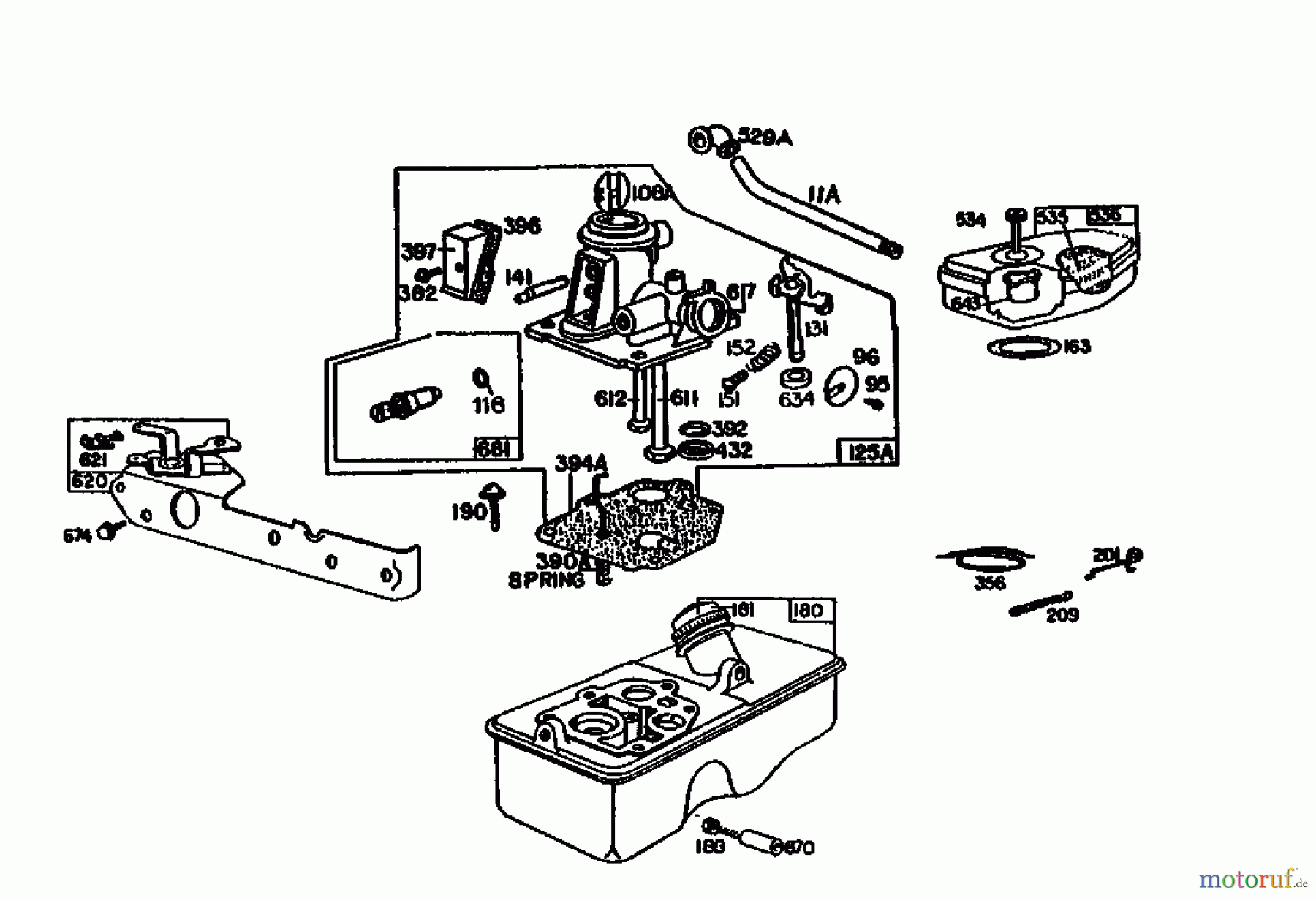

| Posizione | Articolo numero | Descrizione | |
| 11A | 090.03.641 | BREATHER TUBE | |
| 95 | 090.03.644 | Screw | |
| 96 | 090.03.523 | THROTTLE VALVE | |
| 108A | 092.05.187 | 280 178 | |
| 116 | 092.05.188 | O-Ring | |
| 125A | 092.05.274 | CARBURETOR ASSM | |
| 131 | 090.03.986 | THROTTLE VALVE AXLE | |
| 141 | 090.03.988 | 68908 | |
| 151 | 090.03.662 | Screw | |
| 152 | 090.03.666 | Spring | |
| 163 | 092.05.106 | Gasket | |
| 180 | 090.64.410 | Fuel tank | |
| 181 | 090.03.534 | Cap fuel tank | |
| 188 | 090.03.965 | Screw | |
| 190 | 090.03.664 | 94152/691090 | |
| 201 | 090.03.667 | Governor lever | |
| 209 | 090.03.668 | Spring | |
| 356 | 092.05.301 | CABLE | |
| 382 | 090.03.993 | 94152/691090 | |
| 390A | 090.03.994 | Spring | |
| 392 | 090.03.556 | Spring | |
| 394A | 090.03.995 | Carburetor | |
| 396 | 090.03.996 | Gasket | |
| 397 | 090.03.997 | PLATE-COVER-HI LO | |
| 432 | 090.03.558 | Cap | |
| 529A | 090.03.692 | BREATHER MANIFOLD | |
| 534 | 090.03.568 | Screw | |
| 535 | 090.64.020 | FILTER INSERT | |
| 536 | 090.03.998 | AIR FILTER | |
| 611 | 090.03.690 | Fuel pipe | |
| 612 | 090.03.575 | FUEL LINE | |
| 617 | 090.03.687 | SEALING WASHER | |
| 620 | 090.64.045 | Carburetor | |
| 621 | 090.03.584 | SWITCH | |
| 634 | 090.03.589 | Lock washer | |
| 643 | 092.05.297 | PLATE-COVER-HI LO | |
| 670 | 092.05.298 | Spacer | |
| 674 | 090.03.767 | BOLT-TORX HD | |
| 681 | 092.05.202 | Needle valve kit | |
