Name: SEAL RING
Price: 2.72 EUR

SEAL RING

Articolo numero:

28.5871.28

Posizione:

Modell Year:

BM 100-2/G / 1996

DINNORM:

A14X18 AL

2.72 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Articolo aggiunto al carrello1

Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

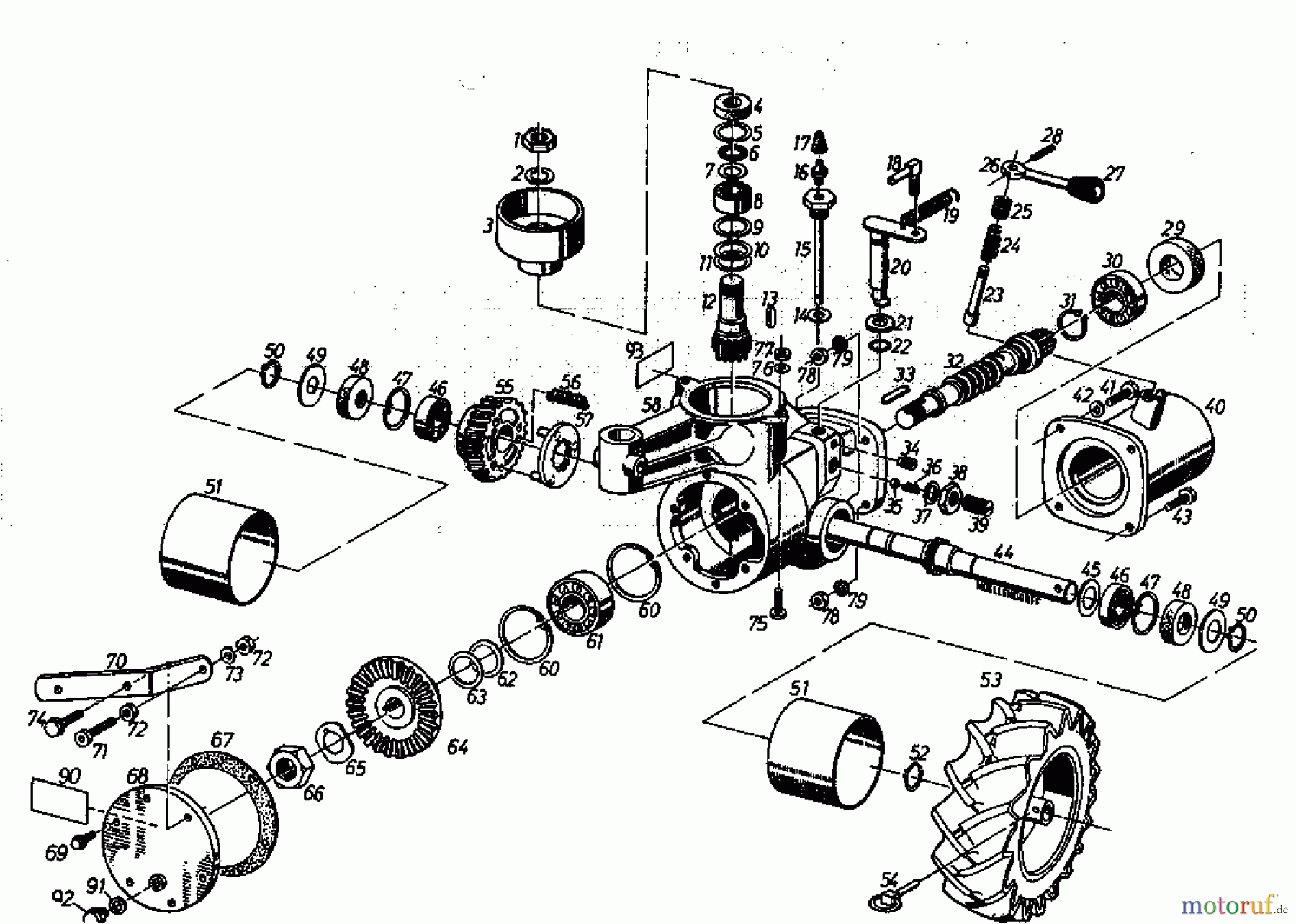

Gutbrod Cutter bar mower BM 100-2/G 07508.06 (1996) Gearbox, Wheels

Posizione	Articolo numero	Descrizione
1	24.1424.25	NUT
2	24.8195.60	Spring washer
3	073.19.108	Coupling housing
4	28.1152.55	Oil seal
5	28.3596.35	Retaining ring
6	000.25.004	Gasket
7	000.20.007	Washer
8	26.1325.02	Ball bearing
9	28.3592.35	Circlip
10	24.6273.51	Shim
11	24.6273.52	Shim
12	080.80.069	Pinion
13	25.5231.23	Key
14	28.5871.28	SEAL RING
15	073.80.849	Oil level dipstick
16	000.75.030	VALVE
17	000.37.074	Cap
18	073.80.844	Bowden wire bracket
19	000.31.071	SPRING, GOVERNOR
20	073.80.841	SHAFT
21	000.35.090	Gasket
22	000.25.007	Ring
23	080.80.026	LIMITING BOLT
24	000.30.011	spring
25	073.80.044	Guide screw
26	000.04.188	EYESCREW
26	1000.05
27	000.36.048	Ball grip
28	25.3197.61	Pin
28	25.3197.60	Clamping sleeve
29	28.1153.41	Oil seal
30	26.1100.06	Ball bearing
31	28.3591.30	Retaining ring
32	080.80.066	Worm shaft
33	25.5231.75	Key
34	23.3413.42	Stud
35	26.9611.43	Ball
36	000.29.023	Spring
37	28.5871.28	SEAL RING
38	24.1422.28	Nut
39	080.29.048	LOCK PIN
40	073.80.036	P.T.O housing
41	21.1443.94	Screw
42	24.6273.33	Distance shim
43	21.1443.93	Screw
44	080.80.067	Shaft
45	24.6278.58	Shim
46	26.1000.05	Ball bearing
47	28.3592.47	Snap ring
48	28.1112.26	Seal
49	000.20.413	Washer
50	28.3591.22	Retaining ring
51	080.80.092	Protection
52	28.3591.22	Retaining ring
53	080.80.879	Wheel assy. 3,50-6
54	000.17.817	Folding pin
55	080.80.065	WHEEL-WORM
56	000.30.062	Spring
57	073.80.806	Drive disc
58	080.80.022	Gear housing
60	28.3592.52	Circlip
61	26.1030.04	Bearing
62	24.6271.12	Shim
63	24.6278.44	Shim
64	080.80.068	Bevel gear
65	000.11.015	Lock plate
66	24.1421.35	Nut
67	073.80.067	Gasket
68	080.80.876	Cover assy.
69	23.8430.20	Screw
70	073.80.104	Bracket
71	000.02.003	SCREW,VALVE ADJUST
72	24.1421.18	Nut
73	24.8190.18	Lockwasher
74	23.8430.26	Screw
75	21.1443.75	Screw
76	24.6481.18	WASHER 8.4 DIN125
77	24.1426.18	NYL STOP NUT M5 DIN 985-8
78	24.1426.22	L-nut
79	24.8190.22	Lockwasher
90	000.51.788	ERSATZTYPENSCHILD BM 100/2G
91	28.5871.28	SEAL RING
92	28.5514.67	Oil drain plug
93	000.50.425	Decal
