Gutbrod HE 48 L 18C-T5H-604 (2000) Basic machine Ricambi

INSULATING WASHER

Nota: Questo articolo è2 volte installato nel dispositivo, il prezzo è per pezzo!
Articolo numero:
079.06.307
Posizione:
3
Modell Year:
HE 48 L / 2000
DINNORM:
SCHWARZ RAL 9005 731-2471
non più disponibile

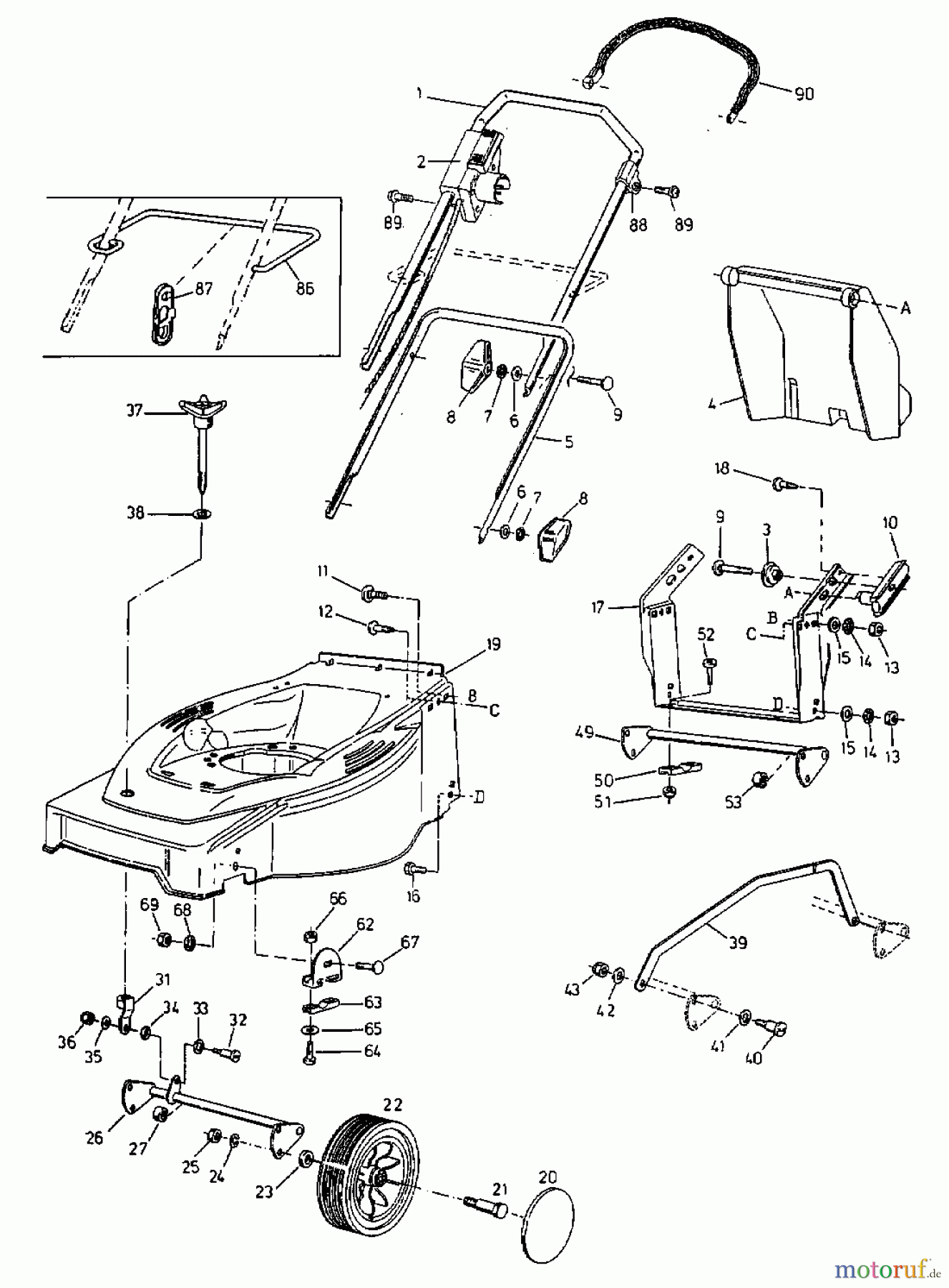

Gutbrod Electric mower HE 48 L 18C-T5H-604 (2000) Basic machine
PosizioneArticolo numeroDescrizione
1 749-1201UPPER HANDLE
2 Gutbrod SWITCH-PLUG-COMBINAT.725-1908SWITCH-PLUG-COMBINAT.
3 079.06.307INSULATING WASHER
4 731-1822638DEFLECTOR
5 749-1196637LOWER HANDLE
6 736-0700WASH:FLAT:8.4 x 16 x 1.60
7 736-0689WASH:LOCK:B 8.4:DIN 6798
8 000.02.377WING NUT
9 Gutbrod BOLT:CRG:M8x1.25x50 DIN 603710-1719BOLT:CRG:M8x1.25x50 DIN 603
10 079.06.308HANDLE BRACKET
11 000.02.578SCREW M8X12
12 000.02.583SCREW
13 Gutbrod NUT:HEX:M8-1.25 DIN 934712-0690NUT:HEX:M8-1.25 DIN 934
14 736-0708LOCK WASHER SCHNORR D 8
15 736-0700WASH:FLAT:8.4 x 16 x 1.60
16 710-1714SCREW:HEX:M8X12 DIN 933-8.8
17 782-3078A638RAIL
18 000.02.499SCREW
19 782-0348638MOWER HOUSING
20 720-0337638HUB CAP STANDARD
21 079.29.166Wheel bolt
22 Gutbrod WHEEL DIA 180mm, BAR, SLEEVE B734-1897WHEEL DIA 180mm, BAR, SLEEVE B
23 736-0695WASHER
24 736-0649WASHER:LOCK:B8:DIN 12
25 Gutbrod NUT:HEX:M8-1.25 DIN 934712-0690NUT:HEX:M8-1.25 DIN 934
26 682-0233FRONT AXLE ASM
27 079.30.092CLAMP RING
31 079.30.678ADJUSTING LEVER
32 710-1710SCREW
33 24.6273.20Shim
34 736-0694WAVED SPRING WASHER B7 DIN 137
35 736-0661WASHER A 5,3 DIN 9021
36 712-0675NUT:HEX:M5 x.80:DIN 985
37 079.31.933HANDLE GRIP CPL.
38 000.20.656WASHER
39 682-0234638CONNECTING ROD
40 23.5427.47Screw
41 24.6273.16ADJUSTING WASHER
42 736-0697PLAIN WASHER
43 712-0636NUT: HEX: M4: DIN 985
44 818-60928GRASS BAG
45 731-1955638GRASS CATCHER HALF-ABOVE
46 731-1954638GRASS CATCHER HALF BELOW
47 731-1956638HNDL:GRSBG:T-DECK BLACK
48 731-1817638BEARING BOLT ( GRASS BOX )
49 079.30.667REAR AXLE
50 731-2082REAR AXLE SUPPORT
51 712-0675NUT:HEX:M5 x.80:DIN 985
52 23.5421.91Screw
53 079.30.095CLAMP RING
55 724-0293MTR:ELEC:1600W
56 Gutbrod CONDENSER725-1848CONDENSER
57 Gutbrod FAN731-2136FAN
62 731-2079FRONT AXLE BEARING FORM B
63 Gutbrod FRONT AXLE BRACKET731-2081FRONT AXLE BRACKET
64 21.5441.16Screw
65 Gutbrod WASHER A 5,3 DIN 125736-0602WASHER A 5,3 DIN 125
66 712-0675NUT:HEX:M5 x.80:DIN 985
67 22.3419.24Screw
68 Gutbrod LOCK WASHER736-0757LOCK WASHER
69 Gutbrod NUT:HEX:M8-1.25 DIN 934712-0690NUT:HEX:M8-1.25 DIN 934
70 000.02.495SCREW
71 000.02.498SCREW-TORX HD 5/16-18
72 731-2075RING -WB-
73 631-0115FAN ASM:ELEC:T-DECK
74 Gutbrod BLADE742-0806BLADE
75 Gutbrod PLT:LOCK:BLADE782-7051PLT:LOCK:BLADE
76 Gutbrod BOLT ASM:BLADE:T-DECK:ELEC624-0075BOLT ASM:BLADE:T-DECK:ELEC
77 731-2073PROTECTION BOX
78 782-3081BRACKET
79 782-3077638PROTECTION PLATE
80 710-1355SCR:TT:M5-.8:10.00:HXFLG
81 731-2089704SHROUD
82 710-1385SCREW PT K50x16 WN 1423
83 731-2091638COVER
86 747-1034ADJUSTABLE BRACKET
87 079.06.417RET:CORD:ELECTRIC
88 731-1823LEVER SUPPORT L.H.
89 000.02.483Screw
90 731-2041SHIFT LEVER
