Spareparts

Washer

Articolo numero:
24.8190.14
Posizione:
72
DINNORM:
6 FEDERST. VERZINKT 736-0688
Modell Year:
/ 1992 GAE 35 / 1992
2.52 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Articolo aggiunto al carrello1
in magazzino in magazzino

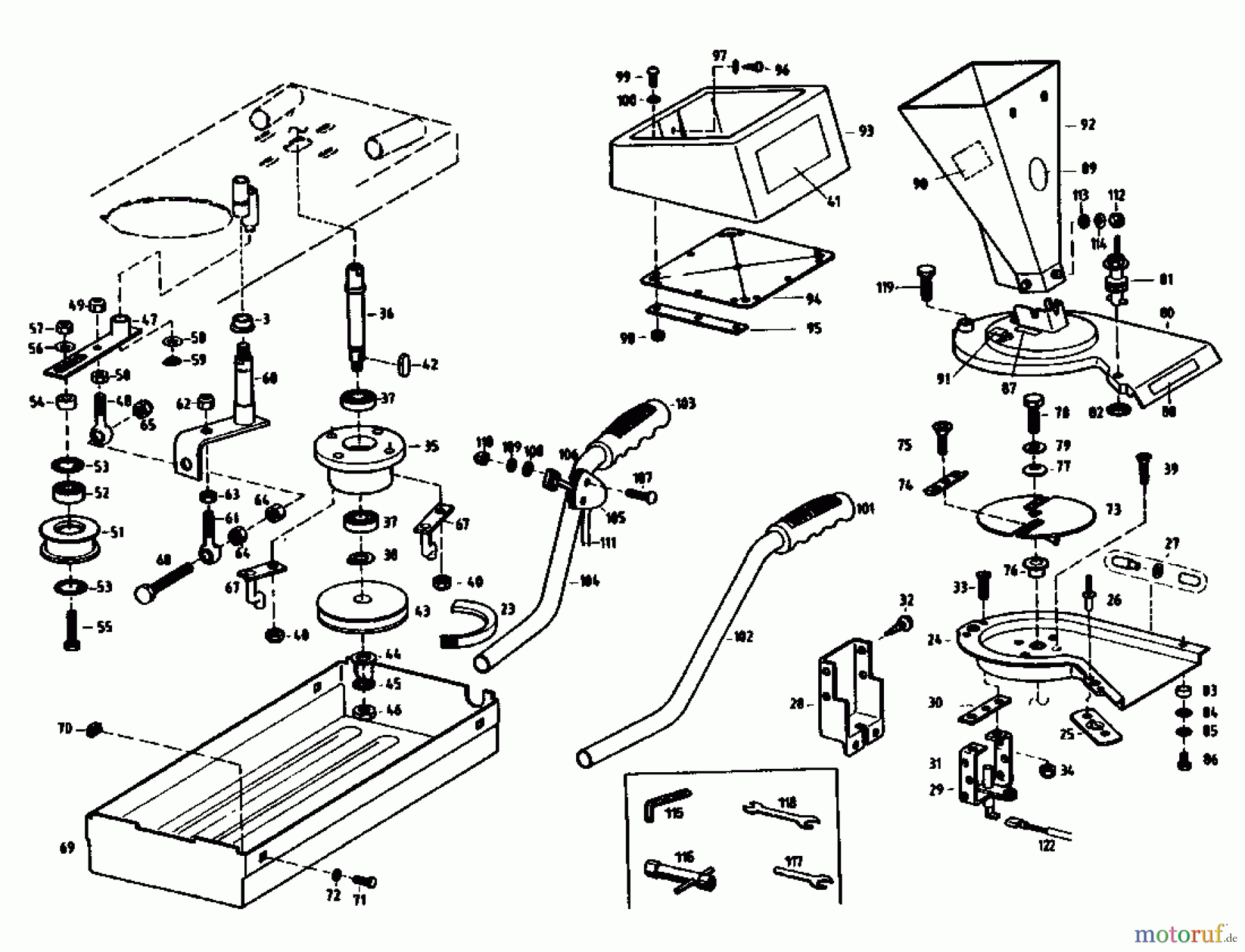

Gutbrod Chipper GAE 35 04003.03 (1992) Basic machine
PosizioneArticolo numeroDescrizione
3 000.24.068Bearing
23 000.75.952V-belt
24 079.95.827Engine support
25 079.95.100Holder plate
26 000.05.082Rivet
27 079.95.093Ring
28 079.95.128Cover
29 079.39.808VACUUM CELL
30 079.95.116Nut
31 079.95.117Switch support
32 22.6417.32Screw
33 22.1418.38Screw
34 24.1426.09Nut
35 079.95.053Bearing carrier
36 079.95.052Shaft
37 26.1027.04Ball bearing
38 28.3591.20Circlip
39 22.1447.75Screw
40 24.1426.18NYL STOP NUT M5 DIN 985-8
41 000.50.101Decal
42 25.5231.54Key
43 079.95.054Grooved pulley
44 24.6481.25Washer
45 24.8190.25L-washer
46 24.1421.74Nut
47 079.95.833Tension lever assy.
48 23.6221.01EYESCREW
49 24.1426.14NYL-STOP-NUT M6 DIN985-8
50 24.1421.14Nut
51 079.85.023Roller
52 26.1027.00Ball bearing
53 28.3592.30Circlip
54 079.85.045SPACER
55 21.1441.92Screw
56 24.6273.32Shim
57 24.1426.22L-nut
58 24.6481.22Washer
59 28.3591.10Circlip
60 079.95.832Lever
61 23.6221.01EYESCREW
62 24.1426.14NYL-STOP-NUT M6 DIN985-8
63 24.1421.14Nut
64 24.1421.14Nut
65 24.1426.14NYL-STOP-NUT M6 DIN985-8
67 079.95.836Plate V-belt
68 21.1441.60Screw
69 079.95.129HOOD
70 000.06.369Nut
71 21.1451.46HEX CAP SCREW
72 24.8190.14Washer
73 079.95.802Washer-Blade
74 079.95.016Blade
75 22.1447.36Screw
76 079.95.030BUSHING
77 079.95.037WASHER
78 21.1452.10Screw
79 24.8190.24Lock washer
80 079.95.924Housing half
81 079.95.101Cover Trunnion
82 079.95.099Holder washer
83 079.95.094STOP
84 24.6481.12WASHER A5.3 DIN 125-ST
85 24.8195.12LOCK WASHER
86 21.1441.24Screw
87 000.49.973Type plate
88 000.50.025Decal
89 000.50.159Decal
90 000.50.486Decal
91 000.50.481Decal
92 079.95.805FEED HOPPER
93 079.95.066Filler tunnel
94 079.95.139Protective plate
95 079.95.140Tension plate
96 23.5421.77Screw
97 24.6481.09Washer
98 24.1426.09Nut
99 22.6417.11Screw
100 24.6486.13Washer
101 000.36.078Handle
102 079.95.113Handle left
103 000.36.078Handle
104 079.95.114Handle right
105 079.12.726THROTTLE CONTROL
106 000.49.421Decal
107 23.5422.24Screw
108 24.6481.14WASHER A6.4 DIN 125-ST
109 24.8195.14LOCK WASHER
110 24.3423.14Nut
111 079.11.700BOWDEN CABLE
112 24.1421.18Nut
113 24.6481.18WASHER 8.4 DIN125
114 24.8190.18Lockwasher
115 000.40.510Spanner
116 000.40.853Spark plug spanner
117 000.40.354Single head wrench
118 000.40.501SPANNER
119 21.1442.40Screw
122 079.39.810Short-circuiting
