Gutbrod HB 40 L 02896.02 (1986) Basic machine Ricambi

Screw

Articolo numero:
21.1443.80
Posizione:
49
Modell Year:
HB 40 L / 1986
DINNORM:
M8X60 ZN5GL CB 8.8
3.05 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
in magazzino in magazzino

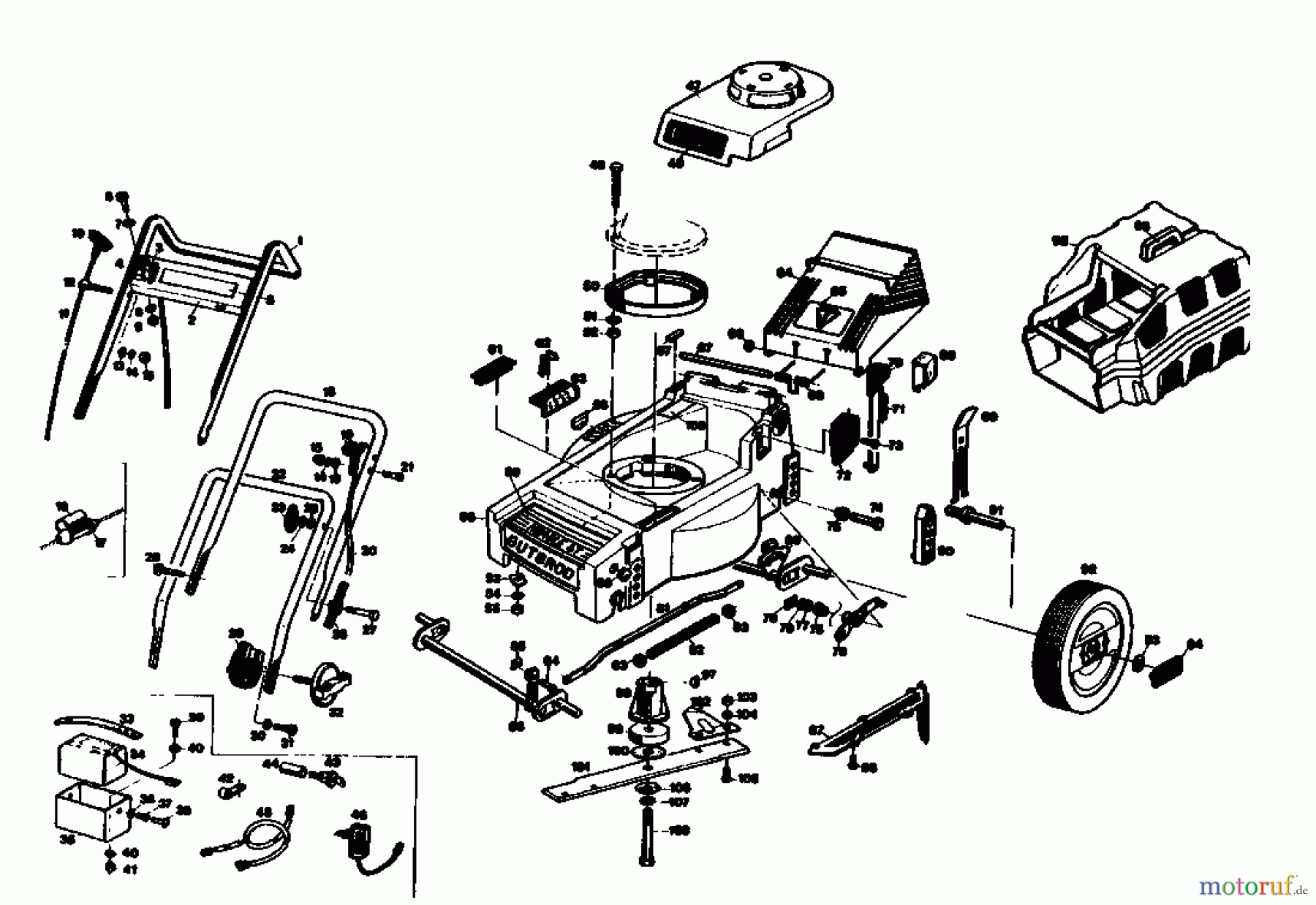

Gutbrod Petrol mower HB 40 L 02896.02 (1986) Basic machine
PosizioneArticolo numeroDescrizione
1 079.05.097HANDLE UPPER PART
2 079.05.216PLATE
2 079.05.334PLATE
3 079.12.960Gas control cpl.
4 000.49.048Decal
5 000.48.696Label - GUTBROD
6 23.5422.13CROSS RECESSED RAISED CHEESE
7 24.6481.14WASHER A6.4 DIN 125-ST
8 24.8195.14LOCK WASHER
9 24.1421.14Nut
10 090.93.199handle
11 090.93.968
12 000.02.430Screw
13 24.6481.14WASHER A6.4 DIN 125-ST
14 24.8195.14LOCK WASHER
15 24.3423.14Nut
16 090.93.686COVER
17 090.93.687Joining piece
18 079.05.333HANDLE UPPER PART
20 079.11.696BOWDEN CABLE
21 23.5422.23CURVED CARR. BOLT M6x30
22 079.05.332LOWER HANDLE
22 079.05.302LOWER HANDLE
23 090.26.829WING NUT
24 24.8191.18L-washer
25 24.6481.18WASHER 8.4 DIN125
26 079.05.304WIRE SLEEVE
27 21.1443.78Screw
28 22.3417.32Screw
29 079.05.301Handle support
30 28.7111.03Spring washer
31 23.5422.16Screw
32 000.02.435HANDLE
33 000.37.486BELT
34 090.93.761BATTERIE KPL.
35 079.11.297TRAY:BATTERY:400`96
36 24.6273.23ADJUST. WASHER & SUPP. SHIM
37 000.02.447NYLATCH-SPREIZKNOPF
38 000.02.448NYLATCH-VERSCHLUSSMUTTER
39 21.1441.47HHCS:M5x30:DIN 933-8.8 Zn5glcB
40 24.6486.16Washer
41 24.1426.14NYL-STOP-NUT M6 DIN985-8
42 001.10.056Clamp
43 090.93.763Ignition look
44 000.37.484TUBING-SPRING COVER
45 090.93.764WIRE HARNESS
46 090.93.762Battery scharg.
47 079.24.164Protection plate
48 000.48.660LABEL GUTBROD
49 21.1443.76SCREW:DIN 931-8.8:M10X70
49 21.1443.80Screw
50 079.25.661FLANGE
51 24.6486.18WASHER A8.4 DIN 9021
52 079.11.296SPACER
53 079.11.295Shim
54 28.7111.05BELLEVILLE
55 24.1426.18NYL STOP NUT M5 DIN 985-8
56 079.25.692E-TEIL-SET
57 079.25.589CAP
58 000.49.073Decal
59 000.49.527LBL:HB 42 L SIGNATURE FOR
59 000.49.583LBL:HB 42 L SIGNATURE FOR
59 000.49.528LBL:HB 42 L SIGNATURE FOR
61 079.25.538Cap
62 079.30.802Indicator assy.
63 079.25.540COVER-HARD TOP
64 079.25.565Rear flap
66 000.02.427Lock washer
67 079.25.536Base pin
68 000.31.168SPRING-EXTENSION
70 079.29.988Adjusting lever
71 000.30.277spring
72 079.29.517Guide
73 000.02.423Screw
74 000.02.439Bolt
75 000.24.038Bushing
76 079.29.795Lever
77 24.6273.30Shim
78 24.6273.33Distance shim
79 000.55.026Lock
80 079.29.794REAR AXLE
81 079.29.507Connector rod
83 24.6273.35Distance shim
84 000.02.335BOLT
85 000.55.024SL-Lock part
86 079.29.793FRONT AXLE ASSY 50911/50998
87 079.25.541COVER-HARD TOP
90 079.25.554REAR FLAP
91 079.29.554Bolt
92 079.29.740RAD 7" VOLLST. ET-TEIL-SET
93 000.02.401Lock washer
94 Gutbrod SPRITZGUSSTEIL NDPE079.29.455SPRITZGUSSTEIL NDPE
95 079.80.933GRASS BOX
96 079.80.084HANDLE
97 25.5239.09DISC SPRING
98 079.77.196BLADE HUB
99 079.77.048Spacer
100 079.77.053Friction washer
101 079.77.628Blade assy.
102 079.77.122Air guide plate
103 24.1421.14Nut
104 24.8195.14LOCK WASHER
105 000.02.379BOLT
106 090.26.348LOCK WASHER
107 24.8195.22LOCK WASHER
109 000.49.529LBL.IDENTIFICATION
109 000.49.561LBL.IDENTIFICATION
109 000.49.530LBL.IDENTIFICATION
