Gutbrod MH 532 04005.01 (1992) Basic machine Ricambi

GEARBOX COVER

Articolo numero:
079.19.325
Posizione:
69
DINNORM:
SCHWARZ RAL 9005 PP
Modell Year:
MH 532 / 1992
non più disponibile

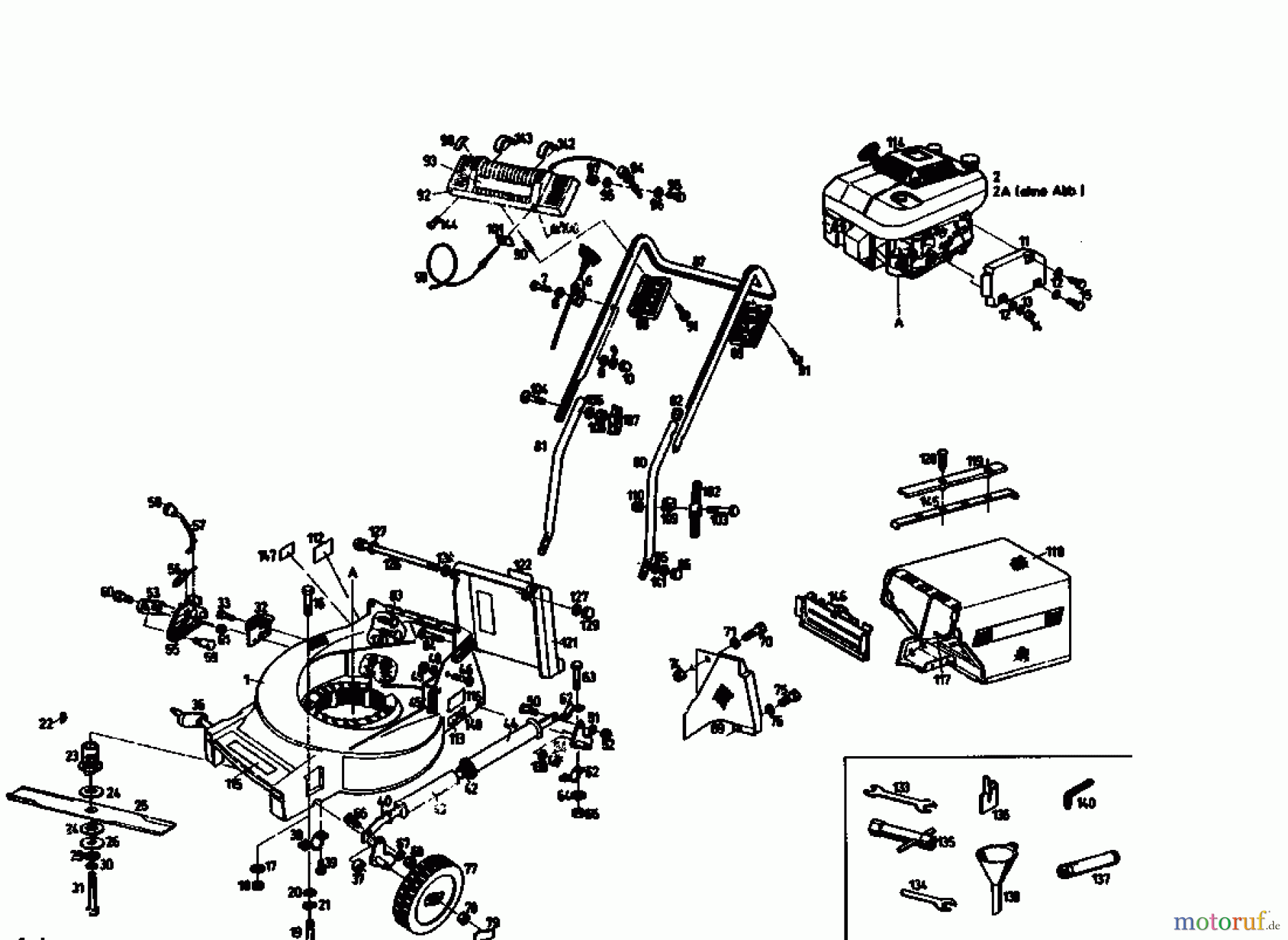

Gutbrod Petrol mower MH 532 04005.01 (1992) Basic machine
PosizioneArticolo numeroDescrizione
1 079.27.910Deck
2 079.12.698Engine assy.
2A 090.64.958ENGINE
6 079.11.350Starter holder
7 23.5422.22Screw
8 24.6481.14WASHER A6.4 DIN 125-ST
9 28.7111.03Spring washer
10 24.3423.14Nut
11 079.11.363COVER-HARD TOP
12 24.6486.13Washer
13 24.8195.09LOCK WASHER
14 24.1421.09Nut
15 22.7416.43Screw
16 21.1443.77Screw
17 24.6481.18WASHER 8.4 DIN125
18 24.1426.18NYL STOP NUT M5 DIN 985-8
19 21.5441.67Screw
20 24.6481.22Washer
21 24.8190.22Lockwasher
22 000.12.026key
23 079.77.332Blade hub
24 079.77.257Friction washer
25 079.77.209Blade
26 079.77.327Washer
29 090.26.348LOCK WASHER
30 24.8190.22Lockwasher
31 000.02.384Screw
32 079.30.062Adjusting plate
33 21.1441.47HHCS:M5x30:DIN 933-8.8 Zn5glcB
34 24.6481.14WASHER A6.4 DIN 125-ST
35 24.1426.14NYL-STOP-NUT M6 DIN985-8
36 079.30.866Front axle assy.
37 079.30.094CLAMP RING
38 079.29.230AXLE BRACKET
39 000.02.334Screw
40 079.30.206Rod
42 000.30.268COMPRESSION SPRING
44 079.30.208OUTER TUBE
45 079.30.127Counter bracket
46 22.1420.52Screw
48 24.8195.14LOCK WASHER
49 24.1421.14Nut
50 22.1420.39Screw
51 24.6481.12WASHER A5.3 DIN 125-ST
52 24.1426.12NYL STOP NUT M5 DIN 985-8
53 079.30.896REAR AXLE
55 079.30.897Adjusting piece
56 000.30.254SPRING
57 079.30.899Adjusting lever
58 000.36.023Knob
59 079.30.041Wheel bolt
60 21.1441.50Screw
61 24.1426.14NYL-STOP-NUT M6 DIN985-8
62 079.30.087AXLE BRACKET
63 21.1443.32Screw
64 24.6486.15Washer A5.3 DIN 9021-ST
65 24.1426.12NYL STOP NUT M5 DIN 985-8
66 22.1420.39Screw
67 24.6481.12WASHER A5.3 DIN 125-ST
68 24.1426.12NYL STOP NUT M5 DIN 985-8
69 079.19.325GEARBOX COVER
70 21.1441.26Screw
71 24.6486.15Washer A5.3 DIN 9021-ST
74 24.1426.12NYL STOP NUT M5 DIN 985-8
75 000.02.419Screw
76 24.6486.15Washer A5.3 DIN 9021-ST
77 079.30.938Wheel assy.
78 000.02.364Nut
79 079.30.646Wheel cap
80 079.05.589Lower handle
81 079.05.590Lower handle
82 000.34.287Plug
83 22.3419.30Screw
84 000.02.555Screw
85 24.6486.18WASHER A8.4 DIN 9021
86 24.3225.18Nut
87 079.05.500Upper handle
88 079.05.471Holder plate
89 079.05.441Holder plate
90 079.05.507Bolt
91 000.02.457Screw
92 079.06.134DASHBOARD
93 000.50.121Decal
94 079.06.841THROTTLE LEVER
95 21.1441.26Screw
96 24.6486.15Washer A5.3 DIN 9021-ST
97 24.1426.12NYL STOP NUT M5 DIN 985-8
99 079.12.667BOWDEN CABLE
100 079.11.355Shim inside
101 079.11.357Shim outside
102 079.05.515CABLE PROTECTION
103 21.1441.69Screw
104 22.3419.33SCREW
105 24.6481.18WASHER 8.4 DIN125
107 000.02.548Wing nut
109 001.10.152Clamp
110 24.3225.18Nut
112 000.49.768Decal
113 000.49.634LABEL
114 000.50.151Decal
115 000.50.046Decal
116 000.50.361Decal
117 079.80.973GRASS BAG FRAGE
118 079.80.880Sack
119 079.80.274Grip half
120 000.02.337Screw
121 079.26.634Rear flap
122 000.50.309Decal
126 079.26.608ROD ASSY- RELEASE
127 24.6486.18WASHER A8.4 DIN 9021
129 24.3225.18Nut
130 22.3419.28Screw
133 000.40.365SPANNER
134 000.40.354Single head wrench
135 000.40.864Spark plug spanner
136 000.41.298LOCK PLATE
137 000.40.207Box spanner
138 000.82.089Funnel
139 28.3595.64Circlips
140 000.40.479Spanner
141 24.6487.20Washer
142 079.06.674INDICATOR, BLACK
143 079.06.169INDICATOR
144 000.02.481PT-Screw
145 079.80.284GRIP
146 079.80.275FLAP
147 000.50.530Decal
148 000.49.377LGA-Decal
