Gutbrod 610 EBS 02651.02 (1986) Gearbox Ricambi

BOLT

Articolo numero:
092.15.404
Posizione:
4
Modell Year:
610 EBS / 1986
DINNORM:
710-0809
non più disponibile

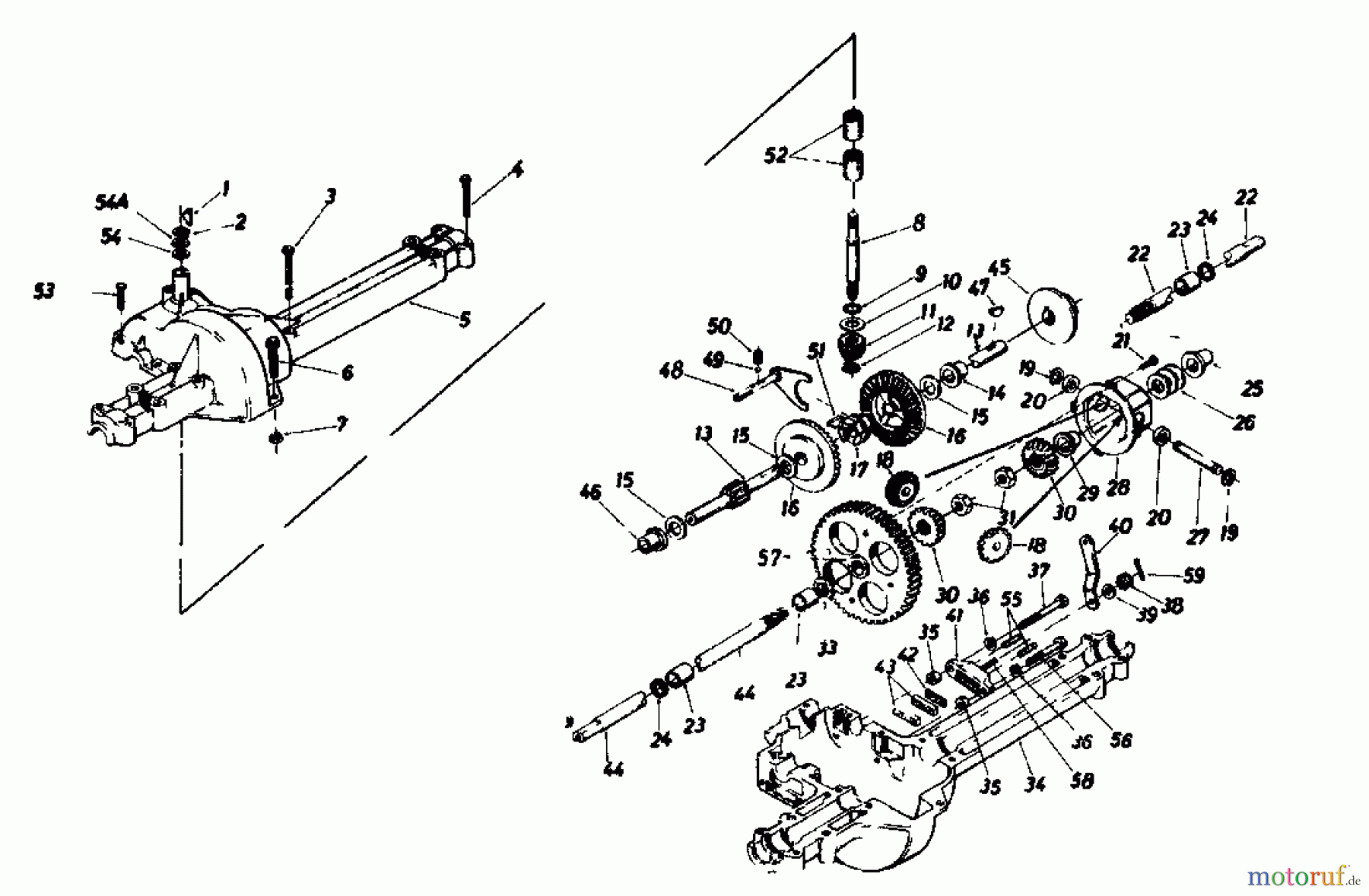

Gutbrod Lawn tractors 610 EBS 02651.02 (1986) Gearbox
PosizioneArticolo numeroDescrizione
1 090.47.490key
2 090.47.140Circlip
3 092.15.403BOLT
4 092.15.404BOLT
5 092.15.405UPPER HOUSING PART
6 092.15.406SCREW,HEX FLANGE
7 090.65.750Nut
8 092.15.407DRIVE SHAFT
9 092.15.408SEALING WASHER
10 092.15.409WASHER
11 092.15.410KEGELRITZEL 14 ZAEHNE
12 092.15.411STOPPING RING
13 092.15.412DRIVE SHAFT
14 092.15.413FLANGE BEARING
15 092.15.414SHAFT SPACER
16 092.15.417KEGELRAD 42 ZAEHNE
17 092.15.418CLUTCH-PTO
18 092.15.419PLANETENRAD
19 092.15.420CIRCLIP WALBRO
20 092.15.421THRUST BEARING
21 092.15.422SCREW
22 092.15.423AXLE-RH
23 092.15.424BEARING BUSHING
24 092.15.425SEALING WASHER
25 092.15.426LAGERFLANSCH
26 090.47.180washer
27 092.15.427SHAFT CARBURETOR THROTTLE
28 092.15.428DIFFERENTIAL HOUSING
30 092.15.429PLANETENRAD
31 090.65.150Nut
33 090.47.180washer
34 092.15.430LOWER HOUSING PART
35 092.15.431Spacer
36 090.47.173SPRING WASHER
37 092.15.432SCREW,HEX FLANGE
38 092.15.433NUT
39 090.47.397washer
40 092.15.434CONTROL LEVER
41 092.15.435BRAKE CALIPER
42 092.15.436BRAKE PAD PLATE
43 092.15.437STATOR-BRAKE
44 092.15.438AXLE-LH
45 092.15.439BRAKE DISC
46 092.15.440BEARING, HEX FLANGE
47 092.15.441SEMICIRCLE KEY, CRANKSHAFT
48 092.15.442TRANSMISSION FORK
49 090.47.015Ball
50 090.47.016Spring
51 092.15.44352928
52 092.15.444NEEDLE BEARING
53 092.15.445BOLT
54 092.15.415SHAFT SPACER
54A 092.15.416SHAFT SPACER
55 092.15.446PIN,DOWEL
56 092.15.432SCREW,HEX FLANGE
57 092.15.447ZAHNRAD 72 ZAEHNE
58 092.15.448Bolt
59 092.15.449CLIP, HITCH PIN
