Gutbrod Sprint 1000 E 02840.04 (1990) Drive system, Steering wheel, Steering, Wheels Ricambi

Name: Nut
Price: 2.63 EUR

Nut

Articolo numero:

24.1421.25

Posizione:

DINNORM:

M12 ZN5GL CB 712-0630

Modell Year:

Sprint 1000 E / 1990

2.63 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

in magazzino

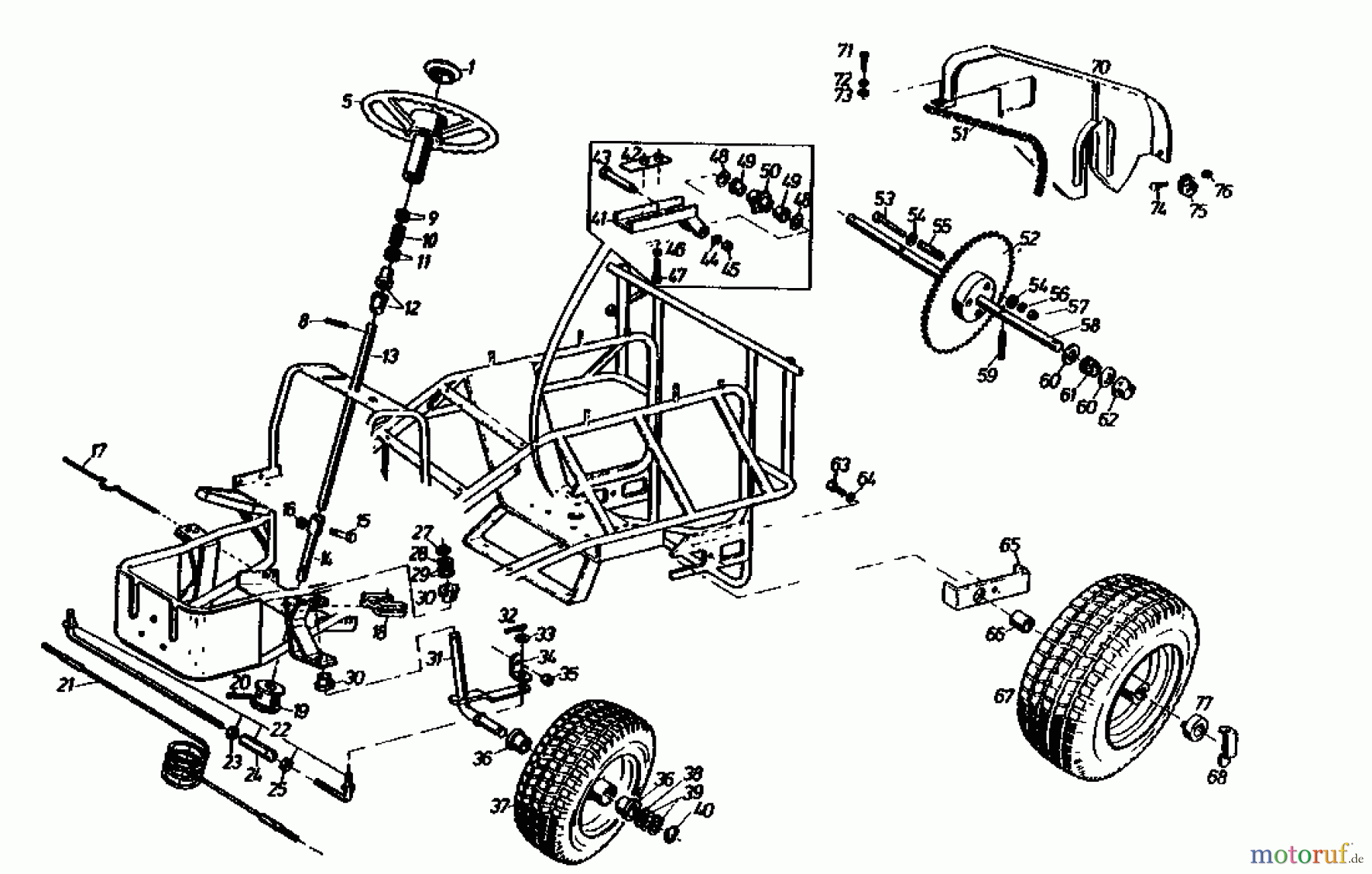

Gutbrod Lawn tractors Sprint 1000 E 02840.04 (1990) Drive system, Steering wheel, Steering, Wheels

Posizione	Articolo numero	Descrizione
1	029.27.037	steering column cover
5	029.27.013	Steering wheel
8	25.3221.99	Cylinder pin
9	24.6273.54	Shim
10	000.30.278	spring
11	24.6273.54	Shim
12	029.27.021	bush
13	029.27.036	Steering rod
14	029.27.807	Steering rod short
15	21.1443.52	Screw
16	24.1426.14	NYL-STOP-NUT M6 DIN985-8
17	029.27.019	Spring
18	029.27.012	SKID SHOE
19	029.27.034	ROLLER
20	25.3193.83	PIN
21	029.27.033	KIT, CABLE 300341
22	029.27.902	Tie rod cpl.
23	24.1421.25	Nut
24	28.8012.03	Adjusting nut
25	24.1421.74	Nut
27	24.8170.08	Circlip
28	000.20.137	WASHER
29	000.20.514	SHIM
30	000.24.034	FLANGE BEARING
31	029.27.806	Shaft left
31	029.27.804	Shaft right
32	25.3197.78	Clamping sleeve
33	24.6483.23	Washer
34	029.27.029	Bracket right
35	24.1426.14	NYL-STOP-NUT M6 DIN985-8
36	000.24.034	FLANGE BEARING
37	029.27.904	Wheel assy
38	24.6484.32	Washer
39	000.20.137	WASHER
40	24.8170.08	Circlip
41	029.25.821	Bracket
42	029.25.819	Guide
43	25.9421.37	BOLT
44	24.6481.18	WASHER 8.4 DIN125
45	24.1426.18	NYL STOP NUT M5 DIN 985-8
46	24.8195.18	Spring washer
47	21.1443.72	Screw
48	24.6481.22	Washer
49	029.25.067	bush
50	029.25.066	SPROCKET-GEAR SUB ASS`Y 38"
51	000.75.924	CHAIN
52	029.25.110	Chain crown
53	21.1443.54	Screw
54	24.6487.18	Washer
56	24.8195.14	LOCK WASHER
57	24.1421.14	Nut
58	029.25.808	SHAFT - SPARE PARTS SET
59	25.3198.13	Pin
60	24.6483.85	Washer
61	029.25.064	bush
62	029.25.042	bush
63	21.1441.68	Screw
64	24.8195.18	Spring washer
65	029.25.113	Tension bracket
66	029.25.062	Spacer
67	029.25.830	Wheel, left 15x6.00
68	029.25.803	SPRING
70	029.46.073	Chaine protection
71	710-1389	SCREW:M6X16 ZN5GLCB DIN 7985
72	24.8195.14	LOCK WASHER
73	24.6486.16	Washer
74	21.1441.45	SCREW M6X18 DIN 933
75	001.10.144	Clamp
76	24.1426.14	NYL-STOP-NUT M6 DIN985-8
77	029.25.097	Drive hub
