Gutbrod Sprint 800 E 02840.05 (1988) Drive system, Steering wheel, Steering, Wheels Ricambi

Name: LOCK WASHER
Price: 2.84 EUR

LOCK WASHER

Articolo numero:

24.8195.25

Posizione:

DINNORM:

B12 FEDERST. Zn 5glcB 736-0778

Modell Year:

Sprint 800 E / 1988

2.84 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

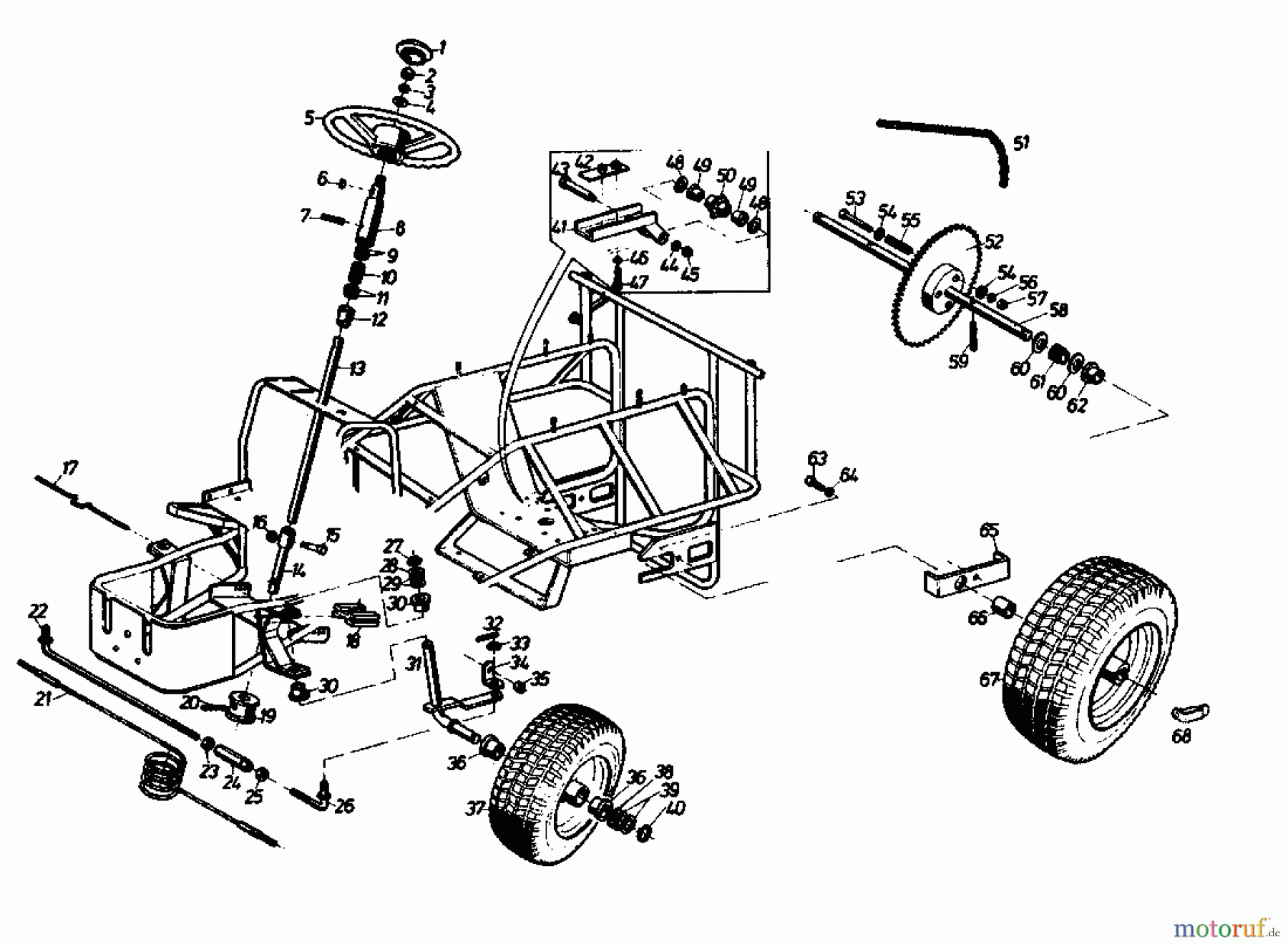

Gutbrod Lawn tractors Sprint 800 E 02840.05 (1988) Drive system, Steering wheel, Steering, Wheels

Posizione	Articolo numero	Descrizione
1	000.70.562	Cap
2	24.1423.25	Nut
3	24.8195.25	LOCK WASHER
4	24.6481.25	Washer
5	000.70.561	Steering wheel
6	25.5239.11	DISC SPRING
7	25.3197.95	Pin
8	029.27.028	CONNECTING PART
9	24.6273.54	Shim
10	000.30.278	spring
11	24.6273.54	Shim
12	029.27.021	bush
13	029.27.014	Steering rod
14	029.27.807	Steering rod short
15	21.1443.52	Screw
16	24.1426.14	NYL-STOP-NUT M6 DIN985-8
17	029.27.019	Spring
18	029.27.012	SKID SHOE
19	029.27.011	ROLLER
20	25.3193.83	PIN
21	029.27.018	KIT, CABLE 300341
22	029.27.810	SPURSTANGE LANG VOLLST.
23	24.1421.22	Nut
24	28.8012.02	SPANNSCHLOSS DIN 1479
25	24.1421.72	SECHSKANTMUTTER DIN 934
26	029.27.809	SPURSTANGE KURZ VOLLST.
27	24.8170.08	Circlip
28	000.20.137	WASHER
29	000.20.513	SHIM
30	000.24.034	FLANGE BEARING
31	029.27.804	Shaft right
31	029.27.806	Shaft left
32	25.3197.78	Clamping sleeve
33	24.6481.22	Washer
34	029.27.030	Bracket left
34	029.27.029	Bracket right
35	24.1426.14	NYL-STOP-NUT M6 DIN985-8
36	000.24.034	FLANGE BEARING
37	029.27.901	Wheel assy
38	24.6484.32	Washer
39	000.20.137	WASHER
40	24.8170.08	Circlip
41	029.25.821	Bracket
42	029.25.819	Guide
43	25.9421.37	BOLT
44	24.6481.18	WASHER 8.4 DIN125
45	24.1426.18	NYL STOP NUT M5 DIN 985-8
46	24.8195.18	Spring washer
47	21.1443.72	Screw
48	24.6481.22	Washer
49	029.25.067	bush
50	029.25.066	SPROCKET-GEAR SUB ASS`Y 38"
51	000.75.925	CHAIN
52	029.25.110	Chain crown
53	21.1443.54	Screw
54	24.6487.18	Washer
55	25.3198.58	Spring pin
56	24.8195.14	LOCK WASHER
57	24.1421.14	Nut
58	029.25.822	REAR AXLE
59	25.3198.13	Pin
60	24.6483.33	Washer
61	029.25.064	bush
62	029.25.042	bush
63	21.1441.68	Screw
64	24.8195.18	Spring washer
65	029.25.113	Tension bracket
66	029.25.062	Spacer
67	029.25.813	Wheel 15x6.00
68	029.25.803	SPRING
