Gutbrod HB 47 R 02847.01 (1989) Basic machine Ricambi

TUBING-SPRING COVER

Articolo numero:
000.37.484
Posizione:
129
Modell Year:
HB 47 R / 1989
DINNORM:
R00.37.484
non più disponibile

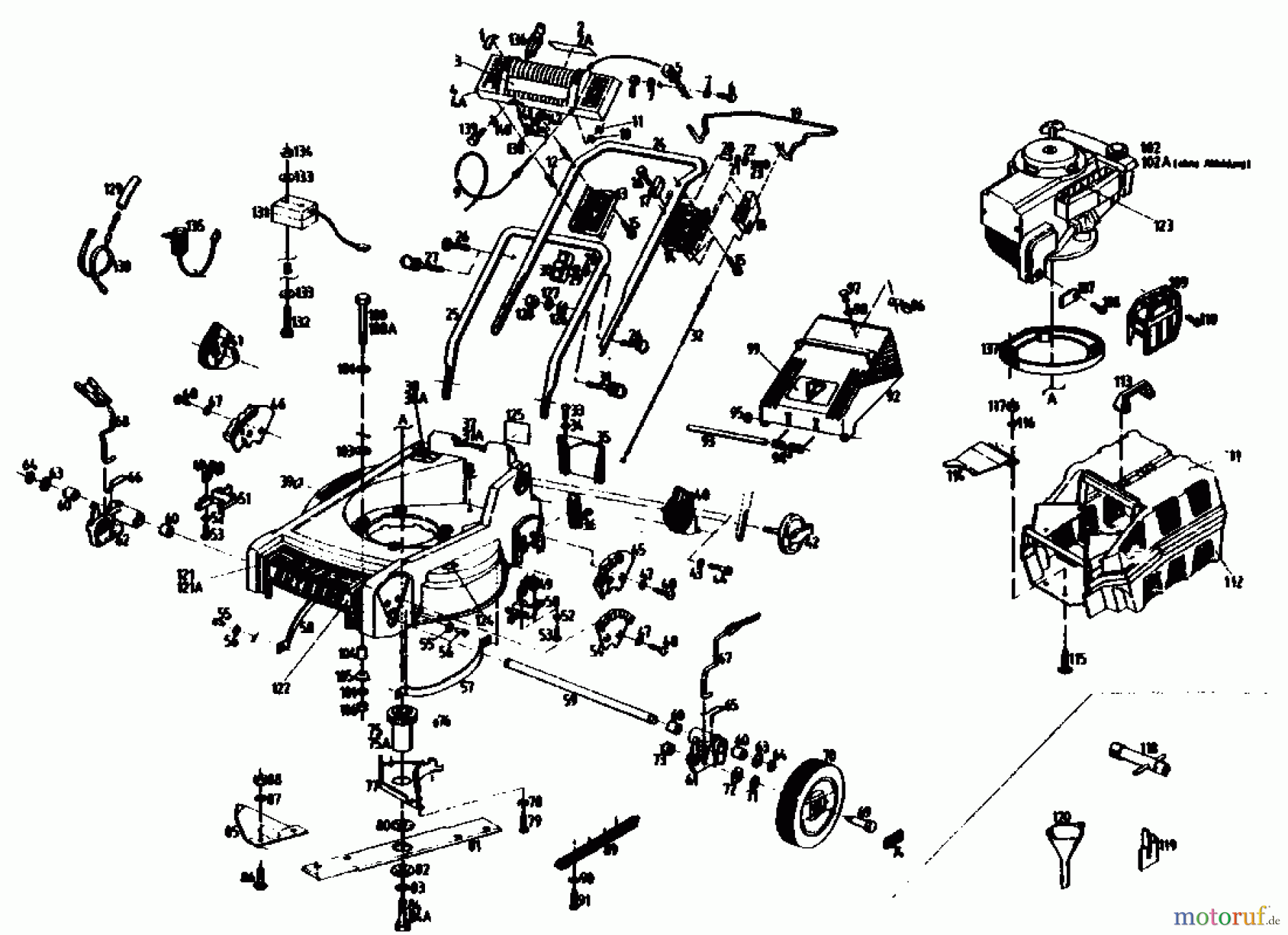

Gutbrod Petrol mower self propelled HB 47 R 02847.01 (1989) Basic machine
PosizioneArticolo numeroDescrizione
1 079.05.485CAP
2 000.49.807Decal (HB 56 R)
2A 000.49.805Decal (HB 56 REL)
3 000.49.800LABEL:RELIEF:GUTBROD:SMALL
4 079.05.405DASHBOaRD
4A 079.05.522DASH-INSTRUMENTAL
5 079.05.628THROTTLE LEVER
6 21.1441.27Screw
7 24.6486.15Washer A5.3 DIN 9021-ST
9 079.11.737BOWDEN CABLE
10 24.6273.17Shim
11 28.3595.56Retaining ring
12 089.05.507
13 079.05.460Holder plate right
14 079.05.435Holder plate Left
15 000.02.457Screw
16 000.02.468SCREW
17 079.05.523Stop
18 079.05.490Counter support
19 079.05.643HOLDER
20 079.05.516Sleeve
21 24.8190.14Washer
22 24.6481.14WASHER A6.4 DIN 125-ST
23 23.5422.22Screw
24 079.05.514Upper handle
25 079.05.513Lower handle
26 22.3417.32Screw
27 079.05.648Screw
28 24.6481.18WASHER 8.4 DIN125
29 24.8191.18L-washer
30 000.02.462WING NUT
31 079.05.654PROTECTION
32 079.19.891CABLE
33 000.02.371Screw
34 24.8190.10Washer
35 079.26.054CAP
36 079.19.272Guide
37 079.26.073RASENMAEHERGEHAEUSE NACHARBEIT
37A 079.26.074RASENMAEHERGEHAEUSE NACHARBEIT
38 000.49.731LBL.IDENTIFICATION
38A 000.49.733LBL.IDENTIFICATION
39 000.49.073Decal
40 079.05.510Handle support
41 079.05.511Bracket right
42 000.02.451Fastening grip
43 28.7111.03Spring washer
44 23.5422.16Screw
45 079.29.669Adusting segment
46 079.29.670Adusting segment
47 24.8190.12Lock washer
48 000.02.423Screw
49 079.26.055SPACER
50 079.26.066Shaft holder left
51 079.026.065
52 24.8190.10Washer
53 000.02.477Screw
54 079.29.606PUCK,ADJUSTING
55 24.6481.12WASHER A5.3 DIN 125-ST
56 000.05.046RIVET
57 079.26.063BAIL
58 079.29.062Spacer
59 079.29.686AXLE-EDGER
60 000.24.053BUSHING D 12/14x20 LG
61 079.30.836Adjusting part
62 079.30.837Zn 10 glcB
63 24.6481.25Washer
64 Gutbrod Circlip DIN 47128.3591.12Circlip DIN 471
65 000.30.255Spring left "B"
66 000.30.254SPRING
67 079.30.831Adjusting lever
68 079.30.832Lever
69 079.29.166Wheel bolt
70 079.30.821Wheel
71 000.20.623DISC
72 24.6486.18WASHER A8.4 DIN 9021
73 079.29.260NUT,HEX FLANGE
74 079.29.595Wheel cap
75 079.77.263MESSERNABE MIT KEILRIEMENSCHEI
75A 079.77.264DRUCKGUSS E-TEIL-SET
76 25.5239.09DISC SPRING
77 079.77.261COVER
78 24.8190.10Washer
79 000.02.477Screw
80 079.77.053Friction washer
81 079.77.818Blade assy.
82 090.26.348LOCK WASHER
84 000.02.384Screw
84A 000.02.460Screw
85 079.77.122Air guide plate
86 000.02.379BOLT
87 24.8195.14LOCK WASHER
88 24.1421.14Nut
89 079.26.064COVER
90 24.8190.10Washer
91 000.02.371Screw
92 079.25.565Rear flap
93 079.25.536Base pin
94 000.31.168SPRING-EXTENSION
95 000.02.427Lock washer
96 079.26.016Anchor
97 000.05.009Rivet
98 24.6486.13Washer
99 000.49.423Decal
100 21.1443.78Screw
100A 21.1443.80Screw
101 28.7111.05BELLEVILLE
102 090.49.938ASPERA ENGINE BVS 143
102A 090.49.947TECNA ENGINE
103 24.6486.18WASHER A8.4 DIN 9021
104 079.11.329SPACER
105 079.11.295Shim
106 24.1426.18NYL STOP NUT M5 DIN 985-8
109 090.93.765HEAT PROTECTION
110 090.93.188Screw
112 079.80.176GRASSBOX
113 079.80.084HANDLE
114 079.80.168Adjusting part
115 000.02.379BOLT
116 24.8195.14LOCK WASHER
117 24.1421.14Nut
118 000.40.853Spark plug spanner
119 000.41.298LOCK PLATE
120 000.82.0089
121 000.49.728Decal
121A 000.49.730SCHILDER
122 000.49.824LABEL
123 000.49.718Decal
124 000.49.637LABEL
125 000.49.579Decal
126 24.6481.18WASHER 8.4 DIN125
129 000.37.484TUBING-SPRING COVER
130 090.93.764WIRE HARNESS
131 090.93.811BATTERY 12V 2,5AH
132 21.1443.42Screw
133 24.6485.15Washer
134 24.14.26.12
135 090.93.762Battery scharg.
136 090.93.763Ignition look
137 079.25.668FLANGE
138 079.05.509Strap
139 21.1441.07Screw
140 24.6486.08Washer
141 24.6481.09Washer
142 24.1426.06Nut
