Massey Ferguson MF 50-22 FMZ 17AI4BFP695 (2010) Pedals Ricambi

SHAFT ASM:LIFT:CRG

Articolo numero:
603-04697
Posizione:
6
DINNORM:
SCHWEISSTEIL:603-04697-0637
Modell Year:
MF 50-22 FMZ / 2010 FMZ 48 / 2010 FMZ 50 / 2010
83.67 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
yellow Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

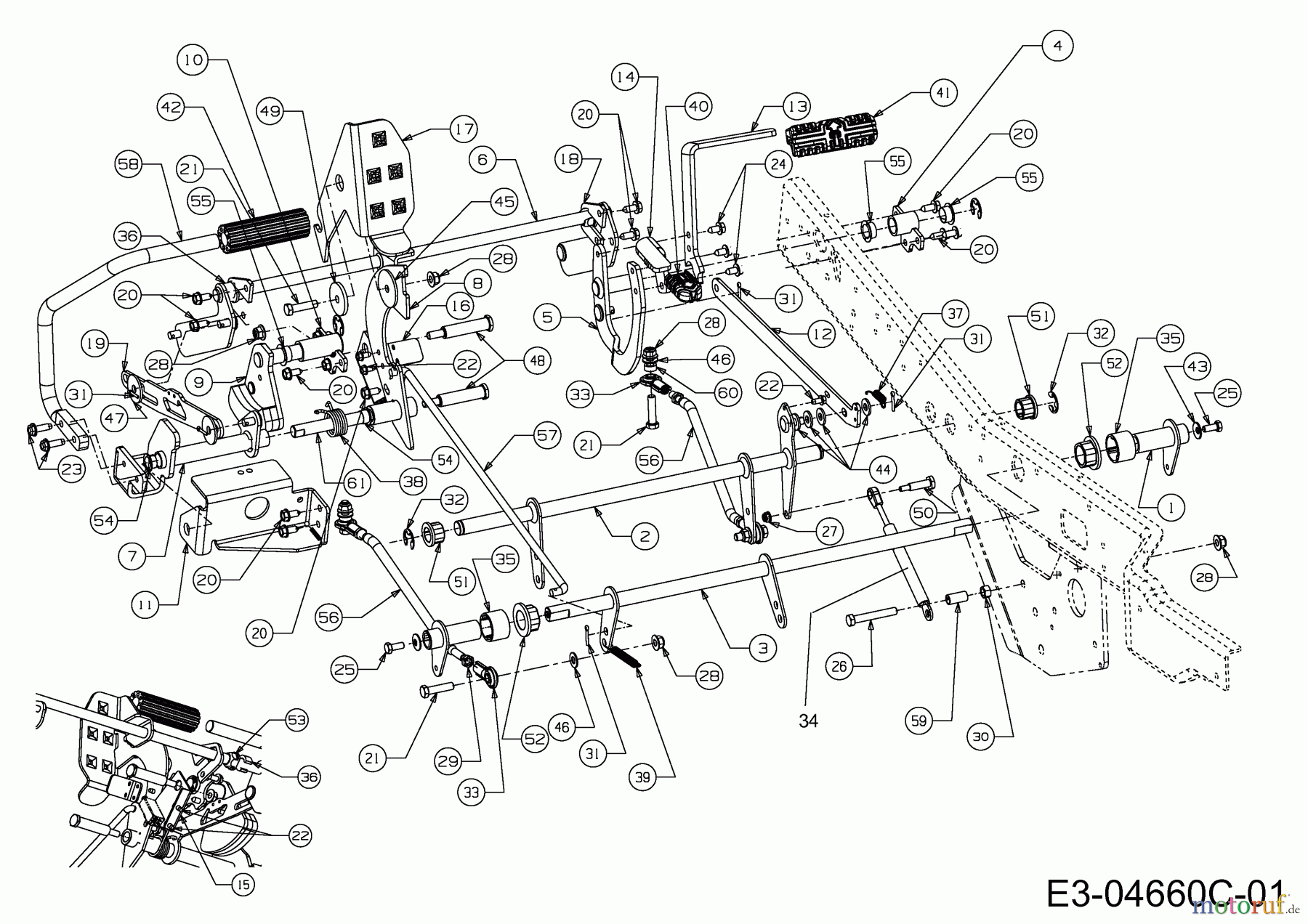

Massey Ferguson Zero Turn MF 50-22 FMZ 17AI4BFP695 (2010) Pedals
PosizioneArticolo numeroDescrizione
1 603-04526BBRAKE LEVER
2 603-04535BSHF ASM:PED CONT
3 603-04560ASHF ASM:CROSS:BRAKE
4 603-04587AHUB ASM:PIVOT:PED
5 603-04590PED ASM:FWD REV
6 603-04697SHAFT ASM:LIFT:CRG
7 603-04699APIVOT ASM:LIFT PEDAL
8 603-04704PED ASM:PIVOT:BRAKE
9 603-04750APLT ASM:PENDULUM SW
10 603-04751HUB VOLLST:PIVOT:PENDULUM SW
11 603-04775BEAM ASM:LOGSP:31/33 W/O TRAY
12 703-06339ALINK:FWD/REV
13 703-06636APED:FWD:FMZ
14 703-06654PEDAL:REVERSE
15 703-06676BRAKE BRACKET
16 703-06678ABRKT:BRAKE SW
17 703-07102PEDAL-BRAKE
18 703-07198LIFT:SUPPORT
19 703-07509ALIFT:LINK:CONNECTOR
20 Massey Ferguson SCR:TT:5/16-18:.750:HXINDWSH710-04484SCR:TT:5/16-18:.750:HXINDWSH
21 Massey Ferguson HHCS:3/8-16:1.50:GR5:STD710-0520HHCS:3/8-16:1.50:GR5:STD
22 Massey Ferguson SCREW:TT:1/4-20:0.500:HXINDWSH710-0599SCREW:TT:1/4-20:0.500:HXINDWSH
23 Massey Ferguson SCREW:TT:5/16-18:1.00:HXINDWSH710-0602SCREW:TT:5/16-18:1.00:HXINDWSH
24 Massey Ferguson SCREW:TT:5/16-18:0.625HXINDWSH710-0604ASCREW:TT:5/16-18:0.625HXINDWSH
25 Massey Ferguson SCREW HHCS:5/16-24:.750GR5LOCK710-0627SCREW HHCS:5/16-24:.750GR5LOCK
26 710-0859SCREW HHCS:3/8-16:2.50:GR5:STD
27 Massey Ferguson NUT:FLGLK:1/4-20:GRF:NYLON712-04064NUT:FLGLK:1/4-20:GRF:NYLON
28 Massey Ferguson NUT:FLGLK:3/8-16:GRF:NYLON712-04065NUT:FLGLK:3/8-16:GRF:NYLON
29 Massey Ferguson NUT:JAM:3/8-24:GR5712-0711NUT:JAM:3/8-24:GR5
30 Massey Ferguson NUT:JAM:3/8-16:GR5712-3017NUT:JAM:3/8-16:GR5
31 Massey Ferguson PIN:COTTER 1/8 OD x.75714-0474PIN:COTTER 1/8 OD x.75
32 Massey Ferguson RING:E-TYPE:.750716-0231RING:E-TYPE:.750
33 723-04035END:ROD:B/JNT:.375
34 727-04141CYL:DAMPER .59 OD x 7.84 LG
35 731-05163SPACER: 1.50ODX1.00IDX1.00LG
36 731-06918SPACER:.62ID x .50 LG
37 732-04549SPR:EXTN:.375 OD x 1.48 LG
38 732-04637SPR:TORSN:1.120 ID x .675 LG
39 Massey Ferguson SPR:EXTN:.38 OD x 3.6 LG732-0611SPR:EXTN:.38 OD x 3.6 LG
40 735-04117PAD:PEDAL:REVERSE
41 735-04118APAD:PEDAL:FORWARD
42 735-04174PAD:FOOT 4.6" LG
43 Massey Ferguson WASH:BLVL:.340 x .872 x .060736-0242WASH:BLVL:.340 x .872 x .060
44 Massey Ferguson WASK:FLAT:.385 x.870 x.092736-0262WASK:FLAT:.385 x.870 x.092
45 736-04018WASH:FLAT:.380x2.000x.120
46 736-0864WASH:THRST:.375x.812x.060
47 736-3039WASH:FLAT:.406 x 1.5 x .105
48 738-04216ABOLT:SHLDR:.625x2.515:3/8-16
49 738-04392SPCR:SHLDR:.884 X .190
50 Massey Ferguson SCR:SHLD:.374 DIA x 1.16 LG738-0572SCR:SHLD:.374 DIA x 1.16 LG
51 Massey Ferguson BRG:HEX FLANGE x.75 ID741-0245BRG:HEX FLANGE x.75 ID
52 741-04324BRG:FLG:HEX:1.25ID x.775LG
53 Massey Ferguson BRG:HEX FLG:.628 ID:SPLIT741-3065BBRG:HEX FLG:.628 ID:SPLIT
54 741-3074BRG:FLG:.626x.938x.344
55 Massey Ferguson BRG:FLG:.751x1.125x.375741-3084BRG:FLG:.751x1.125x.375
56 747-04883AROD:CONT:F/R FC
57 747-04996ROD:BRAKE:FMZ
58 747-05103LIFT:PEDAL
59 750-0434SPACER:.375 x.50 x 1.02 LG
60 750-04776SPACER .380ID X.625 OD X .265
61 750-05244SHAFT:LIFT:PEDAL
