Wolf-Garten UV 32 EL 3568003 Series H (2000) Rotor, Wheels Ricambi

REINFORCING

Articolo numero:
3568010
Posizione:
2
Modell Year:
UR-ES / 2000 UV 32 EL / 2000 UV 32 EL / 2000
5.15 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
in magazzino in magazzino

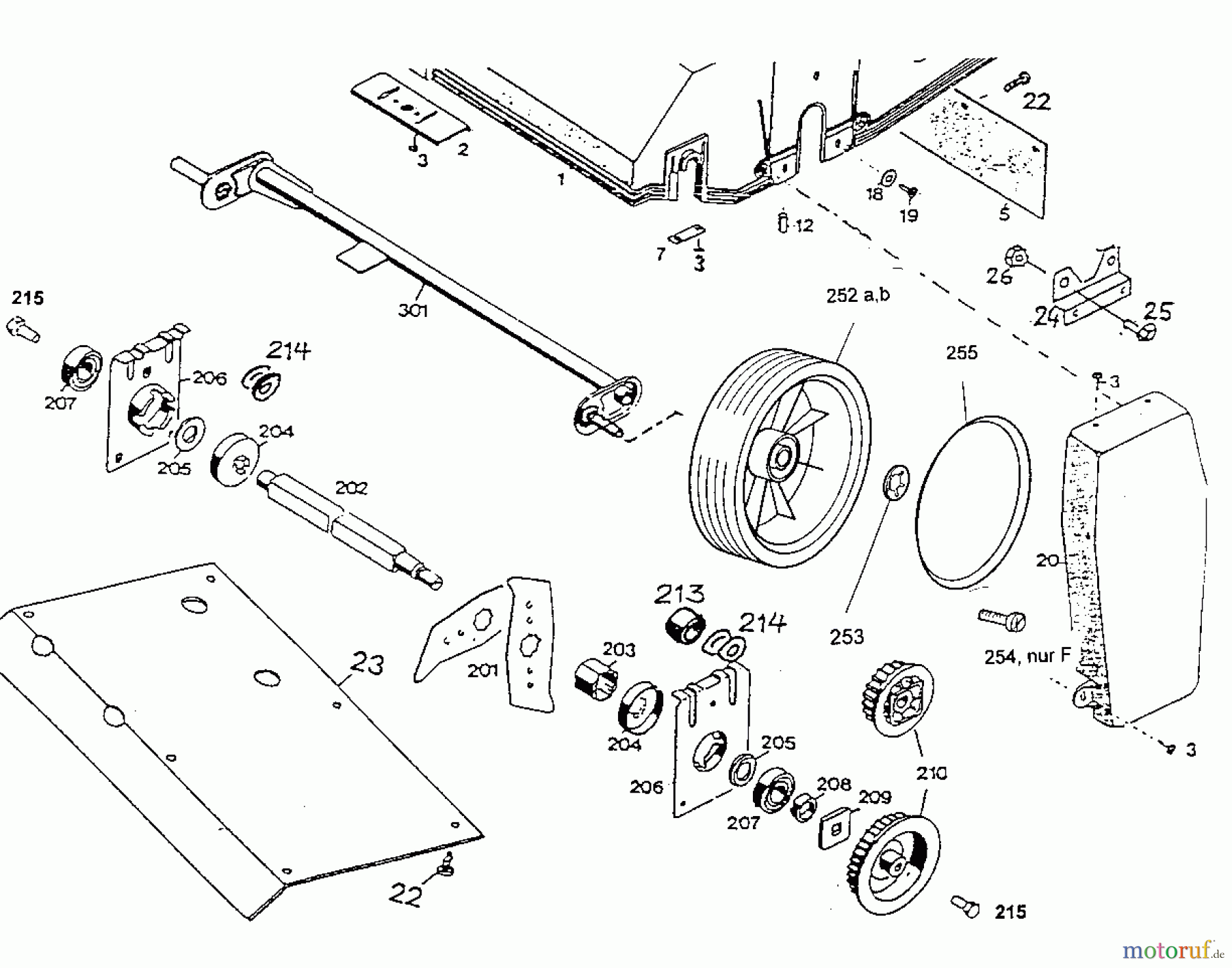

Wolf-Garten Electric verticutter UV 32 EL 3568003 Series H (2000) Rotor, Wheels
PosizioneArticolo numeroDescrizione
1 3568320CHASSIS
2 3568010REINFORCING
3 0012632SCREW
4 3568011HANDWHEEL
5 Wolf-Garten COVER3568206COVER
6 0012880SCREW
7 3568505CLIP
8 4557208CLAMP
9 0012625SCREW
10 3586016NUT
12 3568209MOUNT-SHOCK
14 0012890SCREW
18 0017289DISC
19 0012874SCREW
20 3568303COVER
22 0012880SCREW
23 3568112GUARD PANEL
24 3568113CONSOLE
25 Wolf-Garten SCREW0010893SCREW
26 00163536KTSI-MUTTER M6 06
27 3585121GUIDING PLATE
28 0051145WOLF-GARTEN LABEL
36 4950307CABLE CLIP
51 3568325REAR FLAP
52 3568208PIVOT PIN
53 3585115TORSION SPRING
54 3585223SAFETY LABEL
55 0015652SCREW
101 3568304MOUNTING BRACKET
110 3568211CONSOLE
151 1103053MOTOR
*** 3576309DECKEL-LUEFTER
153 Wolf-Garten HEX. HEAD SCREW0010366HEX. HEAD SCREW
155 0039004TOOTHED BELT
165 4305013Connecting Cable
166 1133040CONDENSER
201 3568400VERTICUTTER BLADE
202 3568507SHAFT
203 Wolf-Garten DISTANCE BUSH FOR BLADES3585510DISTANCE BUSH FOR BLADES
204 Wolf-Garten COVER3568509COVER
205 3568512RING
206 3568017BEARING SHELL
207 0023148BEARING
208 3576406Bushing
209 Wolf-Garten DRIVE DISC3576407DRIVE DISC
210 Wolf-Garten CROWN GEAR3568511CROWN GEAR
212 0010930SCREW
213 35865013586501
214 3586110WASHER
215 0010892SCREW
*** 3585040ROLLER
252A 4960059WHEEL, 200MM DIA.
*** Wolf-Garten BEARING4960516BEARING
252B Wolf-Garten WHEEL, 200MM DIA.6340051WHEEL, 200MM DIA.
*** 6340516BEARING
253 0020698SPEEDFIX RETAINER
254 Wolf-Garten SCREW0010893SCREW
255 4936535HUB CAP, FOR 170MM DIA. WHEEL,
255 6340512HUB CAP, FOR 200MM DIA. WHEEL,
301 3568063FRONT AXLE
302 3568065REAR AXLE
303 3568131CONNECTING ROD
304 0020981RETAINING CLIP
305 3568130CONNECTING ROD
306 Wolf-Garten BOLT3568524BOLT
351 Wolf-Garten COVER3568101COVER
352 3568107bush
353 0012867SCREW
354 0016310HEXAGON NUT M5
355 0013525SCREW
356 0017275WASHER, RECESSED
357 0016718WING NUT
359 3585123LOWER HANDLEBAR
360 3585127TUBE PIECE, RIGHT HAND
361 3585125TUBE PIECE, LEFT HAND
362 3568520PIN-FRIC DISC BRG
401 3585023UPPER HANDLEBAR
402 3632103Case, Right
403 3632102Case, Left
404 3568104SPRING ASSY
405 3568213BOLT
406 3568018TOWING BAR
407 3568132TOWING BAR
408 0013640SCREW
409 3568308WRING NUT
410 3568047TOWING BAR
411 Wolf-Garten CONNECTOR3568111CONNECTOR
412 0012864OVAL HEAD SCREW
420 4906051SWITCH FOR UV34E
420 4906053SWITCH
421 4940105BEARING
422 49401074940107
423 4935105CLAMP
425 0012625SCREW
430 4940100Shackle
431 3575503RETAINER
432 4936323CABLE GUIDE
466 Wolf-Garten SLEEVE6340125SLEEVE
*** 0054048OPERATOR INSTRUCTIONS
*** Wolf-Garten UV-EV SET OF TINES3568081UV-EV SET OF TINES
*** 4665000TK-UV GRASS COLLECTOR
