ELECTRIC MOTOR 1000W

Articolo numero:
FV51-15-3474
Posizione:
26A
Modell Year:
32-10 E / 2008 32-9 E / 2008 34-11 E / 2008 FF 327-1 / 2008 FF 327-1 / 2008
Description:
1000 W
DINNORM:
FU742F7R10 / 51-15-3474
non più disponibile

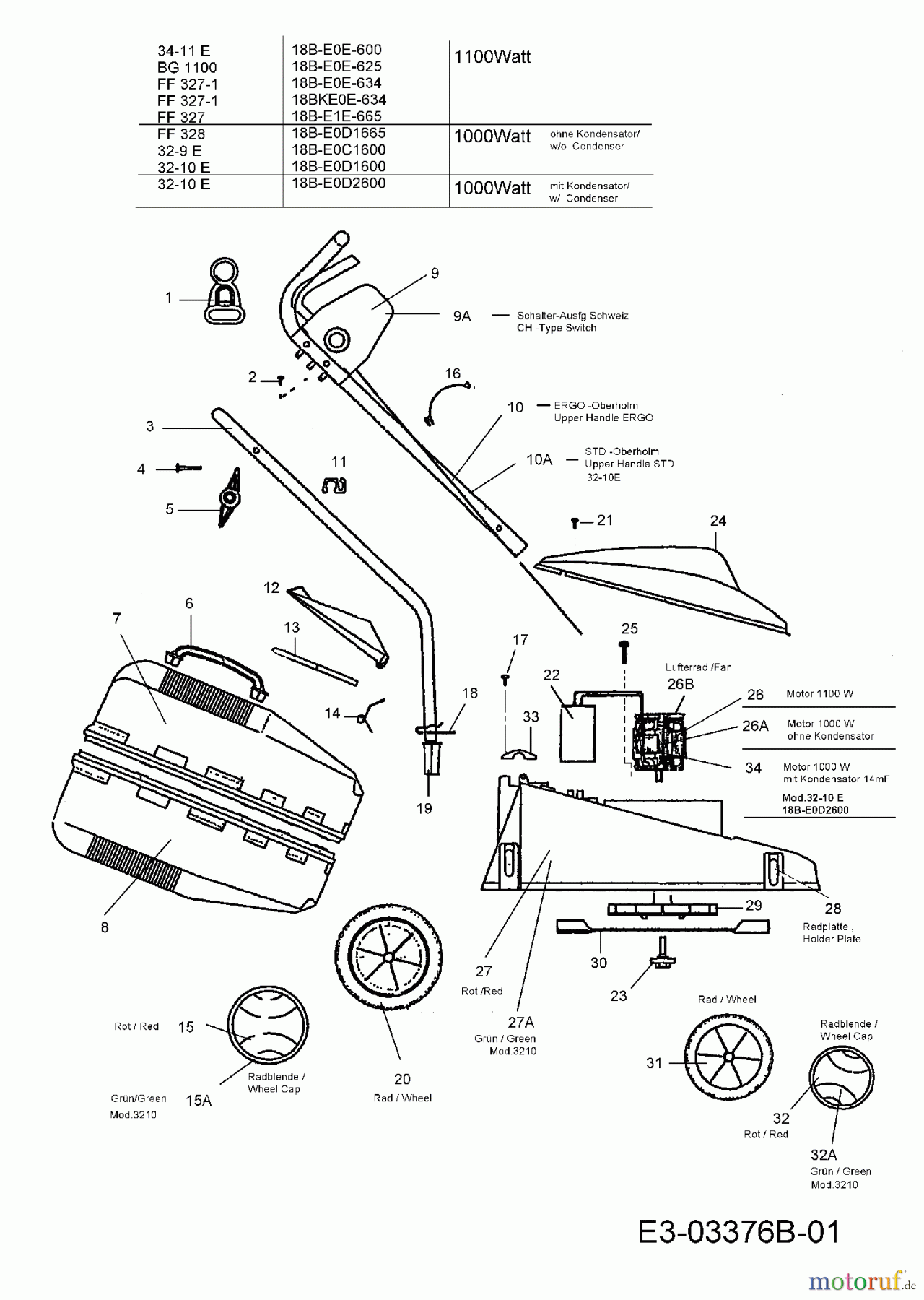

MTD Electric mower 32-10 E 18B-E0D2600 (2008) Basic machine
PosizioneArticolo numeroDescrizione
1 FV-325518BRACKET-CABLE RETAINER
2 710-1744PLASTITE-SCREW KB 40x25
3 749-1342LOWER HANDLE
4 22.3419.16Screw
5 FV-8105000WING NUT
6 FV-9110210GRIP GRASS CATCHER
7 FV-9110200FGRASS CAT. HALF ABOVE
8 FV9100200A-SGRASS CATCHER LOWER SIDE
8A FV9100200A-RGRASS CAT. HALF BELOW
9 FV51-16-1656SWITCH
9A FV-204P112SWITCH-PLUG-COMBINATION
10 749-1343UPPER-HANDLE-ERGO
10A 749-1345UPPER HANDLE
11 FV-9101050CLAMP, CABLE
12 FV-9100401TRAILSHIELD
13 FV-9150410ROD
14 FV-9100420SPRING-EXTENSION
15 FV-9120610WHEEL CAP
15A FV-9120610/ZWHEEL CAP-GREEN
16 000.70.563CABLE TIE
17 000.02.501SCREW
18 FV-9131021HAIRPIN
19 FV-9101011HANDLE BRACKET
20 FV-9120601WHEEL REAR
21 000.02.501SCREW
22 FV-9131300CONDENSER
23 MTD BOLT-BLADEFV-9140810BOLT-BLADE
24 FV-9110302BOOT,HARD TOP
25 000.02.580WN 1451
26 724-0336ELECTRIC MOTOR 1100W
26A FV51-15-3474ELECTRIC MOTOR 1000W
26B FV-416511416511
27 FV-9150100MOWER HOUSING 32 CM
27A FV-9150100/ZMOWER HOUSING-GREEN
28 FV-9100110INDEX PLATE
29 MTD BLADE HUB CPL.FV-9100703BLADE HUB CPL.
30 742-0833516747-H / 31,5 CM
31 FV-9120501WHEEL FRONT CASTER
32 FV-9120510WHEEL CAP
32A FV-9120510/ZWHEEL CAP-GREEN
33 FV-645169MCABLE TIE
34 724-04035MOTOR:1000W:C-0706/M-2
