Name: STRIP-FLAP
Price: 8.70 EUR

STRIP-FLAP

Articolo numero:

781-0633

Posizione:

DINNORM:

781-0633

Modell Year:

463 / 2006 463 / 2007 465 / 2006

8.70 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Articolo aggiunto al carrello1

Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

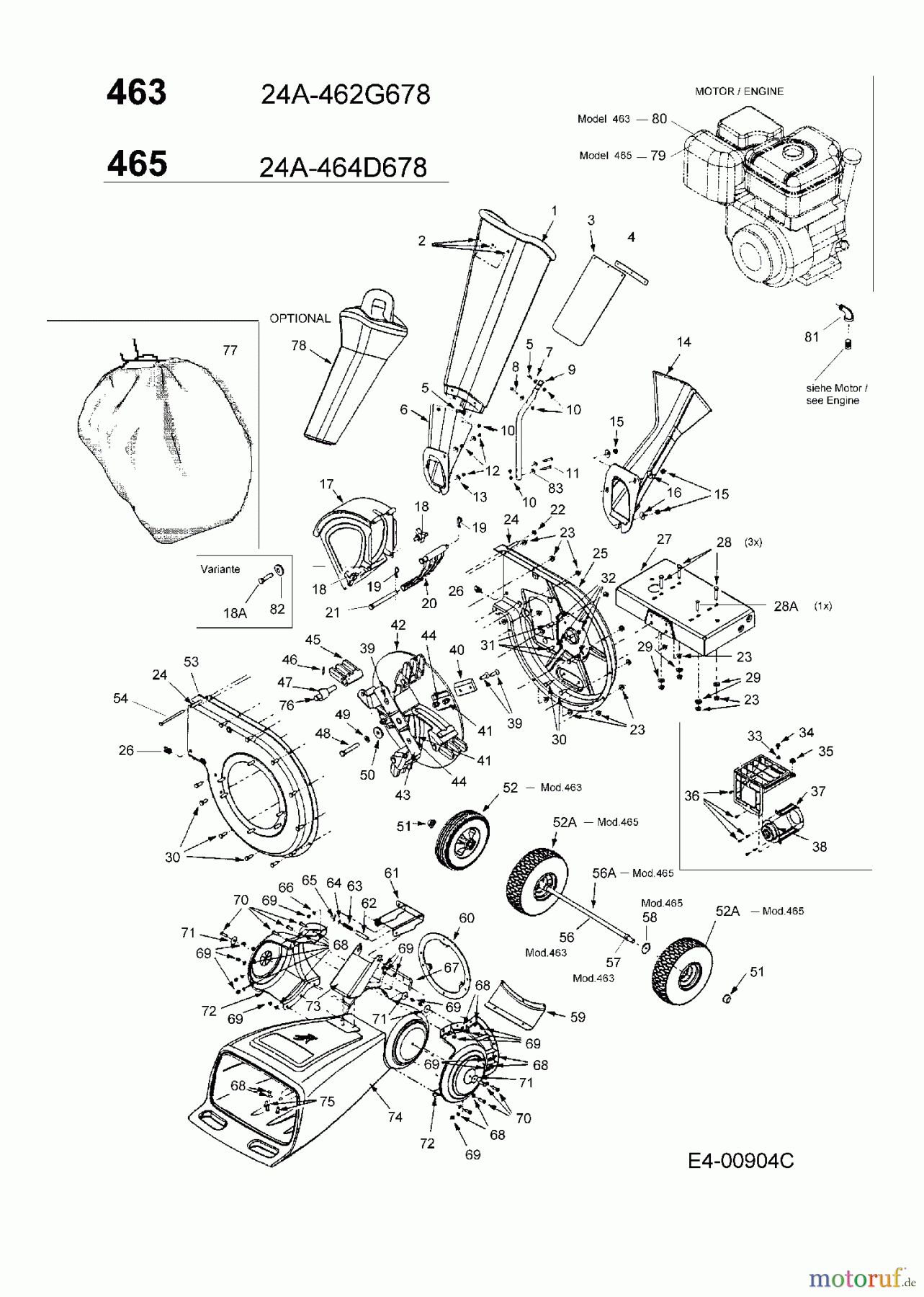

MTD Chipper 465 24A-464D678 (2006) Basic machine

Posizione	Articolo numero	Descrizione
1	731-1899	CHIPPER CHUTE
2	728-0175	RIV:POP: .156 DIA: #56
3	735-0249	FLAP-CHUTE
4	781-0633	STRIP-FLAP
5	710-0751	HHCS:1/4-20:.620:GR5:STD
6	681-0068A	ASSY-CHUTE
7	736-0173	WASH:FL:.28ID:.74OD:.063
8	710-0106	HHCS:1/4-20:1.25:GR5:SPEC
9	749-1004	CHUTE SUPPORT
10	712-3027	NUT:FLGLK:1/4-20:GRF
11	710-0106	HHCS:1/4-20:1.25:GR5:SPEC
12	712-3010	NUT:HEX:5/16-18:GR5
13	736-0242	WASH:BLVL:.340 x .872 x .060
14	681-0095	CHUTE CHIPPER COMP
15	712-3010	NUT:HEX:5/16-18:GR5
16	736-0242	WASH:BLVL:.340 x .872 x .060
17	681-0094	CHUTE DEFLECTOR ASSY.
18	720-0170	KNOB:ARM:THREE 5/16-18
18A	710-3038	SCRE.HHCS:5/16-18:.875:GR5:STD
19	714-0149B	INTERNAL COTTER PIN
20	781-0457	SCREEN
21	711-0835	Bolt
22	712-3027	NUT:FLGLK:1/4-20:GRF
23	712-3004A	NUT:FLGLK:5/16-18:GR5:SD LK
24	750-0793	SPACER-PULLEY
25	681-0117	FLAIL HOUSING ASSY. RIGHT
26	726-0211	NUT:U:5/16-18
27	781-0510C
28	710-0805	SCRE.HHCS:5/16-18:1.50:GR5:STD
28A	710-0502A	SCR:TTSEMS:3/8-16:1.250:HXLWSH
29	736-0170	WASH:BLVL:.326x.875x.145
30	710-3008	SCREW HHCS:5/16-18:.75:GR5:STD
31	710-0157	HHCS:5/16-24:.75:GR5:STD
32	736-0119	WASHER:LOCK:5/16:SPLT:REG
33	736-0329	WASHER:LOCK:1/4:REGULAR DUTY
34	710-0599	SCREW:TT:1/4-20:0.500:HXINDWSH
35	712-3004A	NUT:FLGLK:5/16-18:GR5:SD LK
36	710-1502	SCR:AB:8-18:.375 HXINDWSH
37	751-0646	EXHAUST BRACKET
38	751-0447	DEFLECTOR
39	710-1054	SCR:MACH:5/16-24:1.000:CSK HEX
40	781-0490	BLADE-CHIPPER
41	712-0411	NUT:HEXLK:5/16-24 GR8:NYLON
42	681-0030	IMPELLER ASSY-COMP
43	742-0571	SHREDDER BLADE-TOOL STEEL
44	736-0119	WASHER:LOCK:5/16:SPLT:REG
45	719-0329	BLADE-FLAIL
46	715-0166	PIN:SPR:SPRL:.156 X 1.000 STD
47	781-0735	CLIP:RET:PIN
48	710-1254	SCRE.HHCS:3/8-24:2.25:GR8:LOCK
49	736-0217	WASHER:LOCK:3/8:HEAVY DUTY
50	736-0247	WASH:FLAT:.406x1.250x.157:HD
51	726-0214	CAP:PUSH 5/8
52	734-1600	WHEEL ASSY W/TIRE
52A	734-1845	WHL:COMPL:10 X 4 X 4:GRAY
53	681-0004A	FLAIL HOUSING ASSY. LEFT
54	710-0825	SCREW HHCS:1/4-20:3.75:GR5:STD
56	738-0814	AXLE-EDGER
56A	738-0813	AXLE-EDGER
57	750-0786	SPACER-PULLEY
58	736-0366	WASHER:FLAT:.640 x 1.120x .125
59	781-0515	SUPPORT-HANDLE PANEL
60	781-0574	PLATE
61	681-0104	BRKT ASM:HOPR:RR
62	748-0453	spacer
63	732-0306	COMPR.SPRING:.406x.531x1.75 LG
64	736-0117	WASH:FLAT:.385 x.620 x.033
65	714-0104	PIN:COT:.072 DIA x 1.13 LG
66	736-0264	WASH:FLAT:.330 x.630x.0635
67	711-1128	ROD, HOPPER BAG (42" SWEEPER)
68	736-0264	WASH:FLAT:.330 x.630x.0635
69	712-0429	NUT:HEXLK:5/16-18:GR5:NYLON
70	710-0376	HHCS:5/16-18:1.00:GR5:STD
71	736-0362	WASH-FLAT:.330 x 1.25 x.06:HD
72	731-1710A	COLLAR HOPPER
73	681-0123	BRKT ASM:HOPR:FRT
74	731-1707	HOPPER
75	710-3008	SCREW HHCS:5/16-18:.75:GR5:STD
76	711-0833B	PIN: CLEVIS Ò .496
77	764-0199A	BAG-SHREDDER
78	731-1617	TAMPR. PLUG
79	752B0409B1	ENGINE B&S
80	752B0407B1	ENGINE B&S
81	737-0195	ELBOW-DRAIN
82	736-0242	WASH:BLVL:.340 x .872 x .060
83	736-0451	WASH:SDL:.320 x.93 x.060
