MTD GARTENTILLER 5 218-3200 (1988) Basic machine Ricambi

TINE ASSY-OUTER-LH

Articolo numero:
784-0093
Posizione:
32
DINNORM:
784-0093-0637
Modell Year:
GARTENTILLER 5 / 1988
non più disponibile

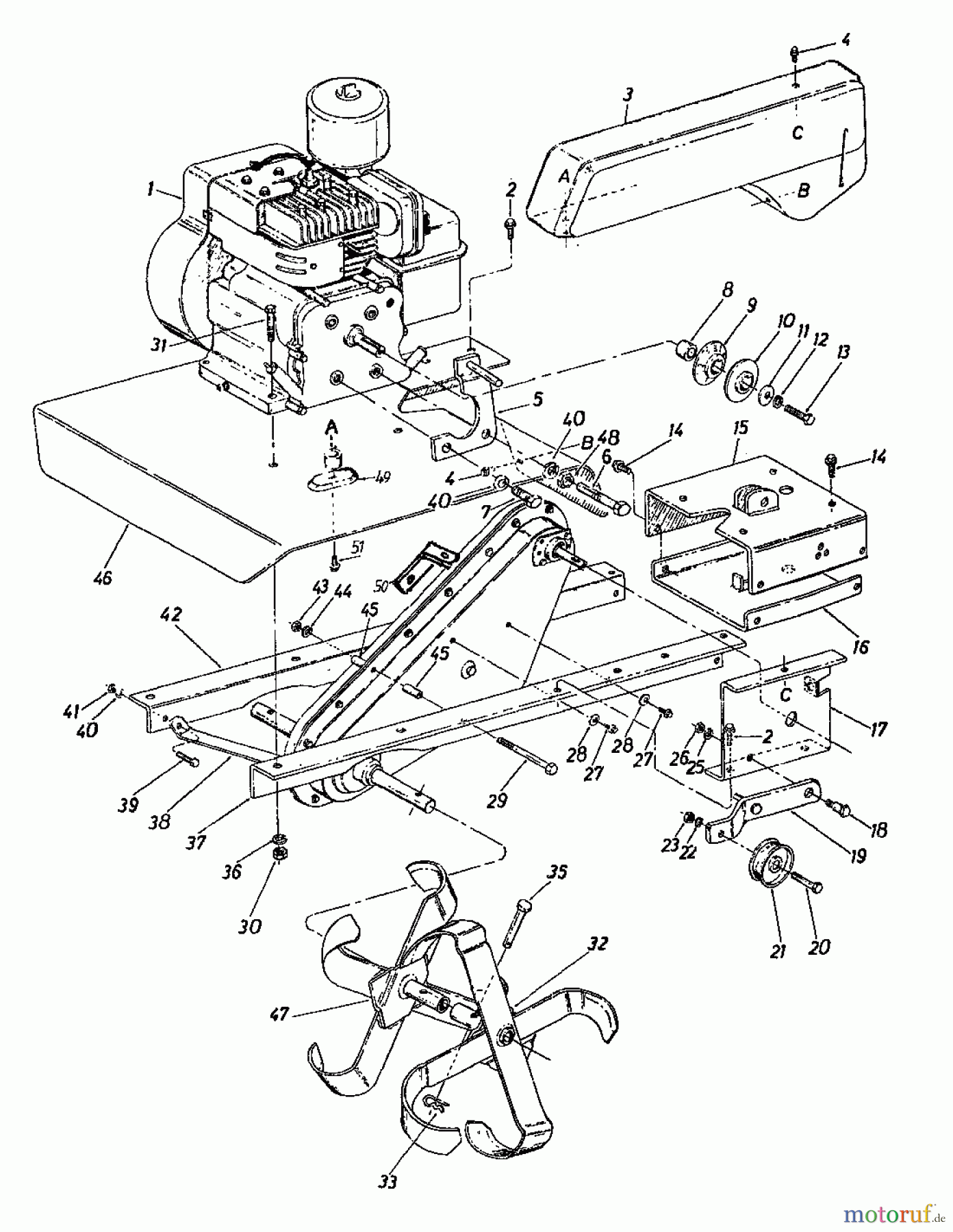

MTD Tillers GARTENTILLER 5 218-3200 (1988) Basic machine
PosizioneArticolo numeroDescrizione
2 710-0600SCREW-HEX WASH SF
3 04958COVER-BELT
4 710-0600SCREW-HEX WASH SF
4 MTD SCREW:TT:1/4-20:0.500:HXINDWSH710-0599SCREW:TT:1/4-20:0.500:HXINDWSH
5 784-0114BRACKET ASSY-BELT
7 710-0237HHCS:5/16-24:.625:GR5:STD
8 750-0345SPACER
9 748-0282PULLEY HALF-ENGINE
10 748-0282PULLEY HALF-ENGINE
11 MTD WASHER:FLAT:.385 x 1.0 x.135736-0258WASHER:FLAT:.385 x 1.0 x.135
12 MTD WASH:LOCK:3/8:REGULAR DUTY736-0169WASH:LOCK:3/8:REGULAR DUTY
13 710-0152SCREW HHCS:3/8-24:1.00:GR5:STD
14 MTD SCR:TT:3/8-16:.750 HXINDWSH710-0623SCR:TT:3/8-16:.750 HXINDWSH
15 04950
16 04943
17 04934
18 738-0322SCR:SHLD:.625 DIA x .217
19 784-0027BRKT:IDLR:CENTER DBL
20 710-0344HHCS:3/8-16:1.50:GR5:SPEC
21 756-0137PULLEY-IDLER-FLAT
22 MTD WASH:LOCK:3/8:REGULAR DUTY736-0169WASH:LOCK:3/8:REGULAR DUTY
23 712-0342NUT-HEX CENTER L-JAM
25 MTD WASH:LOCK:3/8:REGULAR DUTY736-0169WASH:LOCK:3/8:REGULAR DUTY
26 712-0342NUT-HEX CENTER L-JAM
27 MTD SCREW:TT:1/4-20:0.500:HXINDWSH710-0599SCREW:TT:1/4-20:0.500:HXINDWSH
28 MTD WASHER:BLVL:.265 x .750 x .060736-0270WASHER:BLVL:.265 x .750 x .060
29 710-0189HHCS:5/16-18:3.00:GR5:STD
30 712-0267NUT:HEX:5/16-18:GR2
31 710-0442HEX BOLT 5/16-18X1.5"
32 784-0093TINE ASSY-OUTER-LH
33 714-0149
35 1545-029
36 MTD WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
37 04949
38 04933
39 710-0118HHCS:5/16-18:.75:GR2:STD
40 MTD WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
41 712-0158NUT:HEXLK:5/16-18:GRA:CTRLK
42 04948
43 712-0158NUT:HEXLK:5/16-18:GRA:CTRLK
44 MTD WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
45 750-0470SPACER:.47 OD x.96 LG
46 04884
47 784-0092TINE ASSY-INNER-RH
48 712-0123NUT:HEX:5/16-24:GR2
49 750-0214SPACER
50 784-0047BRACKET-SHIELD MTG
51 MTD SCR:TT:1/4-20:.750:HXINDWSH710-0642SCR:TT:1/4-20:.750:HXINDWSH
