MTD T 035 21A-035-678 (1999) Basic machine Ricambi

HANDLE ADJUSTMENT CRANK

Articolo numero:
784-0190
Posizione:
80
DINNORM:
784-0190
Modell Year:
T 035 / 1999
30.66 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
yellow Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

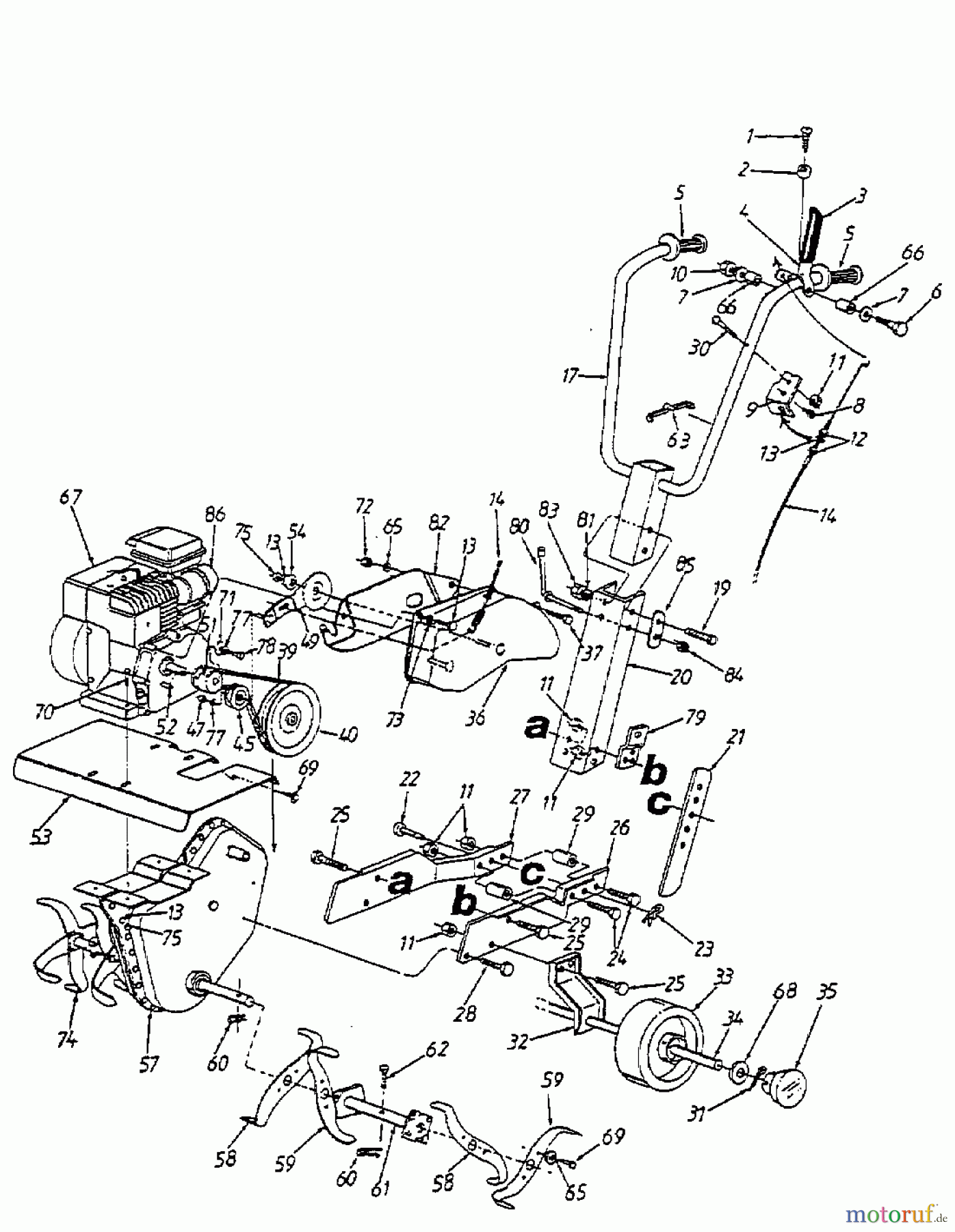

MTD Tillers T 035 21A-035-678 (1999) Basic machine
PosizioneArticolo numeroDescrizione
1 710-1167SCREW-TAP
2 720-0263BUMPER-RECESS
3 731-0473VINYL-GRIP
4 686-0002LEVER ASSY-CLUTCH
5 720-0233GRIP:HNDL:DECK LIFT
6 710-0501HHCS:1/4-20:2.0:GR5:STD
7 736-3090FL.WASHER:.260 X .720 X .060
8 710-1201SCR:T:1/4-20:0.500:HXINDWSH
9 15093Cidler wheel bracket
10 712-0324NUT:HEXLK:1/4-20:GR8:NYLON
11 MTD NUT:HEXLK:5/16-18:GR5:NYLON712-0429NUT:HEXLK:5/16-18:GR5:NYLON
12 712-0256NUT:JAM:5/16-24:GR2
13 MTD WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
14 746-0926WIRE
17 649-0018HANDLE ASSY.
19 710-0572BOLT:CRG:5/16-18:2.50:GR1
20 786-0146HANDLE CHANNEL - FRAME
21 04764
22 711-0653PIN-CLEVIS
23 MTD PIN:CLICK:.092 x 1.64 LG714-0145PIN:CLICK:.092 x 1.64 LG
24 MTD HHCS:5/16-18:1.00:GR5:STD710-0376HHCS:5/16-18:1.00:GR5:STD
25 710-0759HHFLG:5/16-18:.625:GR5:STD
26 786-0011FRAME HALF-LH
27 786-0010FRAME HALF-RH
28 MTD SCREW:TT:5/16-18:.500:HXINDWSH710-0607SCREW:TT:5/16-18:.500:HXINDWSH
29 750-0845SLEEVE
30 710-1090HHFLG:5/16-18:1.25:GR5:STD
31 714-3017PIN:COT:3/32 x .875
32 786-0012BRACKET-WHEEL
33 634-0013WHEEL
34 738-0855AXLE-EDGER
35 720-0258HUB-CAP
36 786-0151
37 710-0258HHCS:1/4-20:.625:GR2:STD
39 754-0216BELT-V 3/
40 756-0996PULLEY
45 756-0199PULLEY-IDLER-FLAT
47 MTD NUT:JAMLK:3/8-24:GR2:NYLON712-0116NUT:JAMLK:3/8-24:GR2:NYLON
49 784-0016BRACKET ASSY-IDLER
51 756-0286PULLEY
52 714-0122KEY-SQ 3/16x.75
53 786-0148
54 736-0289Washer
57 686-0093CHAIN CASE ASSY.
58 04922
59 04923
60 MTD INTERNAL COTTER PIN714-0149BINTERNAL COTTER PIN
61 04918
62 711-0702CLEVIS PIN
63 726-0306BAND
65 MTD WASHER:LOCK:1/4:REGULAR DUTY736-0329WASHER:LOCK:1/4:REGULAR DUTY
65 726-0306BAND
66 750-0846SPACER
68 MTD WASH-FLAT:.375x.738x.063736-0185WASH-FLAT:.375x.738x.063
69 MTD SCREW:TT:1/4-20:0.500:HXINDWSH710-0599SCREW:TT:1/4-20:0.500:HXINDWSH
70 710-04421
71 712-0258
72 MTD WASH:FLAT:.793 x 1.24 x .06:HT736-0287WASH:FLAT:.793 x 1.24 x .06:HT
73 710-0107SCREW-HEX
74 04921
75 712-0267NUT:HEX:5/16-18:GR2
75 04921
77 MTD WASH:LOCK:3/8:REGULAR DUTY736-0169WASH:LOCK:3/8:REGULAR DUTY
78 710-0152SCREW HHCS:3/8-24:1.00:GR5:STD
79 786-0046BRACKET-BELT COVER
80 784-0190HANDLE ADJUSTMENT CRANK
81 MTD WASH:FLAT:.406 X .875 X.059736-0300WASH:FLAT:.406 X .875 X.059
82 786-01253
83 712-3000NUT:HEXLK:3/8-16 GR.B CTRLK
84 712-0379USE 712-0375
85 784-0191BRACKET-CABLE
86 751B281279RECOIL FINGER GUARD
86 751B495253MUFFLER GUARD
