Spareparts

WASHER-FL

Articolo numero:
736-0512
Posizione:
33
Modell Year:
T/410 / 2005 T/410 / 2003
DINNORM:
736-0512
Description:
".281""IDx.875""OD"
5.88 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Articolo aggiunto al carrello1
yellow Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

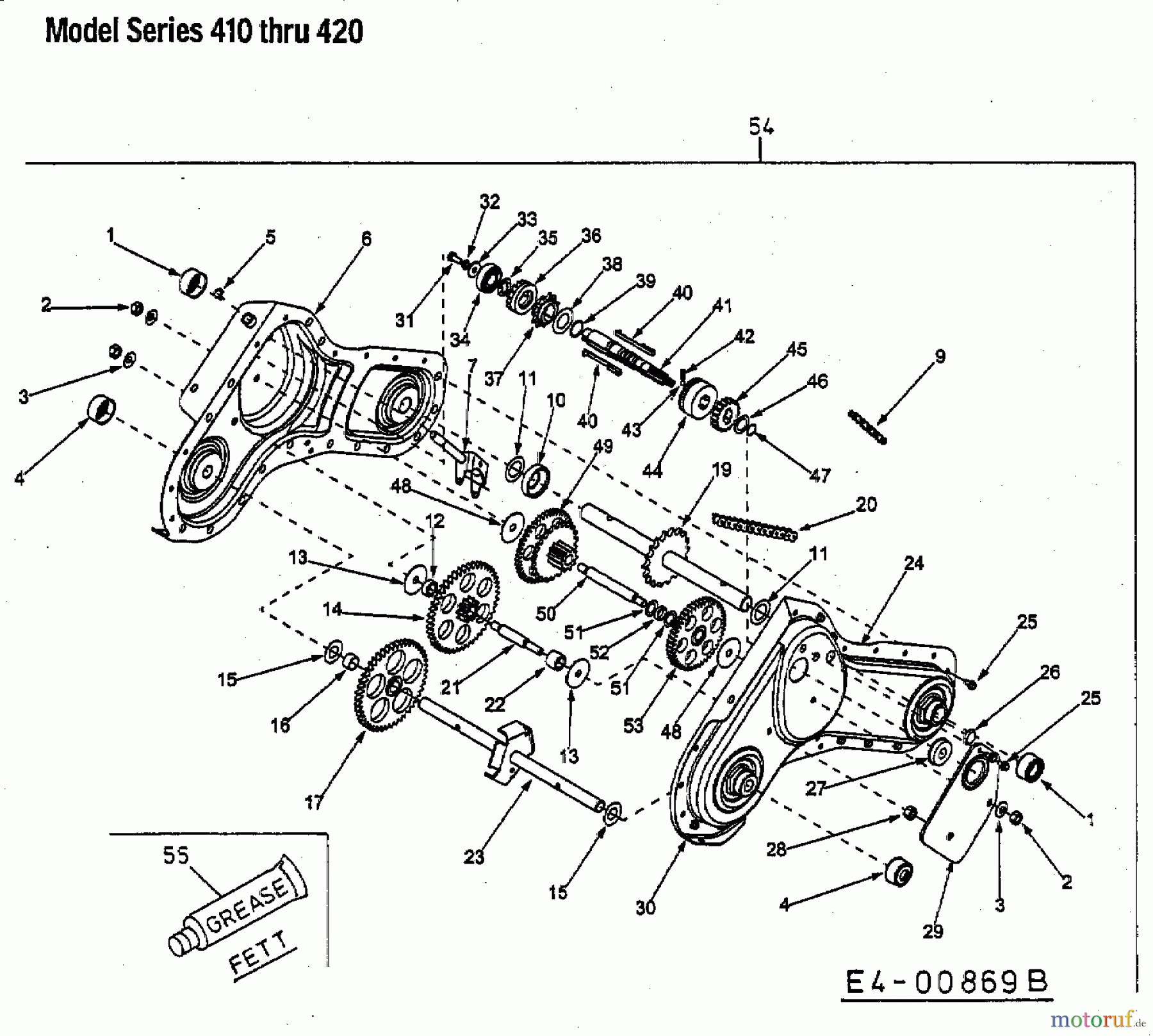

MTD Tillers T/410 21AA414A678 (2005) Gearbox
PosizioneArticolo numeroDescrizione
1 MTD SEAL;SHF:1.00 DIA721-0378SEAL;SHF:1.00 DIA
2 712-0378USE 712-0375
3 736-0407WASHER
4 MTD SEAL:SHF:.75 DIA721-0379SEAL:SHF:.75 DIA
5 716-0865RING-SNAP
6 686-0038GEAR CASE
7 MTD SHIFTER ASSY.618-0245BSHIFTER ASSY.
9 713-0233#41 CHAIN
10 750-0570SPACER
11 736-0163WASHER-FL
12 750-0936SPACER-PULLEY
13 736-0518WASH:THRST:.445 x 1.920 x.060
14 617-0004Pinion
15 736-0351WASH:SHIM:.760x1.500X.030:HD
16 750-0938SPACER
17 717-1458GEAR:SPUR:46T
19 611-0021SHAFT ASSY-TINE
20 713-0226#50 CHAIN 5/8 PITCH X 52L E
21 738-0885JACK SHAFT 5/8 DIA. X2.06 LG
22 750-0935SPACER-PULLEY
23 611-0058SHF ASM:WHL
24 686-0039CASE ASSY GEAR HALF-
25 MTD SCR:AB:1/4-14:.625:HXINDWSH710-0896SCR:AB:1/4-14:.625:HXINDWSH
26 726-0331PLUG:BUTTON:.750 ID
27 741-0563BRG:BALL:17x40x12:6203:DS
28 712-3067NUT HEXAGONAL
29 786-0086PLATE-REINFORCEMENT
30 721-0295GASKET:CHAIN CASE
31 710-0258HHCS:1/4-20:.625:GR2:STD
32 MTD WASHER:LOCK:1/4:REGULAR DUTY736-0329WASHER:LOCK:1/4:REGULAR DUTY
33 736-0512WASHER-FL
34 741-0124BEARING BALL
35 736-0541washer
36 717-1451AGEAR-SPUR 16T
37 713-0435SPROCKET 11T
38 736-0265WASHER-FL
39 716-0235RETAINER
40 718-0237KEY-DRIVE SHAFT
41 711-1087DRIVE SHAFT
42 MTD COMPRESSION SPRING 225X.50"732-0863COMPRESSION SPRING 225X.50"
43 MTD BALL:DETNT:.250 DIA741-0862BALL:DETNT:.250 DIA
44 718-0234COLLAR-CLUTCH
45 717-1409GEAR, 17T DRIVE, THIRD
46 736-0442WASHER-FL
47 MTD Circlip732-0614Circlip
48 736-0518WASH:THRST:.445 x 1.920 x.060
49 686-04073CASE ASM:GEAR:COMP 410/420
50 738-0884SHAFT-TINE
51 736-0336WASH:SHIM:.625x1.000x.030:HD
52 750-0931SPACER
53 617-0003GEAR AND SPROCKET ASS`Y.
54 986-0094TRANSMISSION
55 001.51.052LUBRICAT. GREASE 100 gr. TUBE
