MTD 8/66 130-510A (1990) Drive system, Wheels Ricambi

WASH:FLAT:.344 x .688 x.065

Articolo numero:
736-0275
Posizione:
17
Modell Year:
8/66 / 1990
DINNORM:
FINISH:MTD STD 701-01000
2.63 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
yellow Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

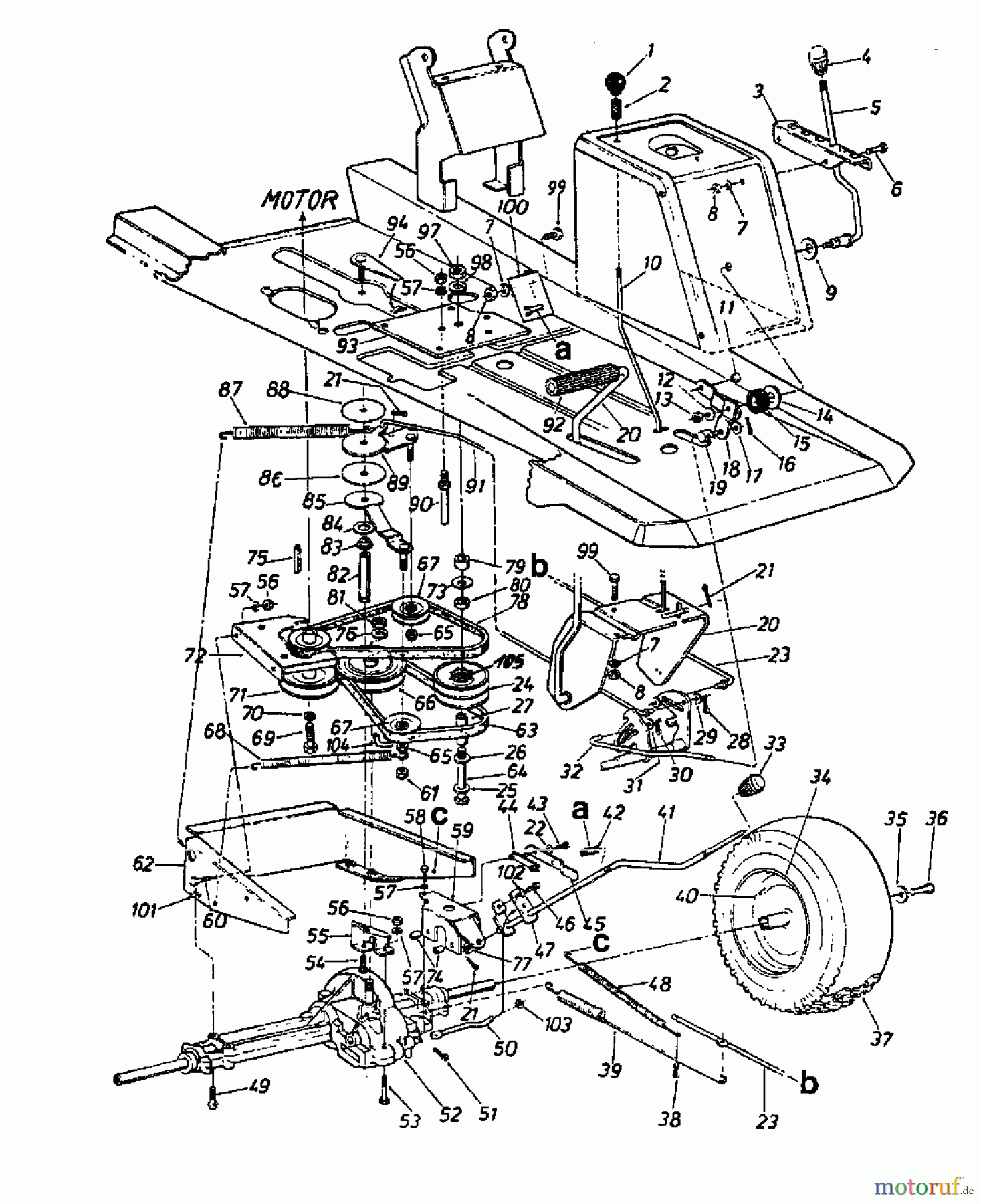

MTD Lawn tractors 8/66 130-510A (1990) Drive system, Wheels
PosizioneArticolo numeroDescrizione
1 720-0187KNOB
2 732-0437COMPR. SPRING:.34 OD x 1.0 LG
3 16389METERING GAGE, FLOW CONTROL
4 MTD KNOB:SHFT:1.60 OD X 1.56720-0232KNOB:SHFT:1.60 OD X 1.56
5 747-0652LEVER-SPEED CONT
6 710-0323SCREW
7 MTD WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
8 712-0267NUT:HEX:5/16-18:GR2
9 736-0253WASH:BLVL:.525 x 1.000 x.050
10 747-0427ROD-BRAKE LOCK
11 731-0493CAP
12 MTD WASH:BLVL:.340 x .872 x .060736-0242WASH:BLVL:.340 x .872 x .060
13 712-0158NUT:HEXLK:5/16-18:GRA:CTRLK
14 736-0100WASH:FLAT:.531 x 1.25 x .036
15 735-0219WASHER-RUBBER
16 MTD PIN:CLICK:.092 x 1.64 LG714-0145PIN:CLICK:.092 x 1.64 LG
17 736-0275WASH:FLAT:.344 x .688 x.065
18 16396BRACKET ASSY-IDLER
19 MTD FERRULE:5/16-18 x.312 DIA711-0677FERRULE:5/16-18 x.312 DIA
20 17677PEDAL ASSY-CLUTCH
21 MTD PIN:COT:3/32 X .750714-0507PIN:COT:3/32 X .750
22 736-0426WASHER-FIBER
23 747-0431ROD-BRAKE
24 717-0884PULLEY ASM:VARI SPEED
25 736-0247WASH:FLAT:.406x1.250x.157:HD
26 MTD THRUST BEARING741-0405THRUST BEARING
27 750-0705SLV:SPCR:.56:2.71
28 MTD PIN:COT:SPLIT:1/8 X 1.0714-0115PIN:COT:SPLIT:1/8 X 1.0
29 736-0275WASH:FLAT:.344 x .688 x.065
30 MTD PIN:COT:.072 DIA x 1.13 LG714-0104PIN:COT:.072 DIA x 1.13 LG
31 736-0275WASH:FLAT:.344 x .688 x.065
32 747-0394ALINK-SPEED CONTROL
33 MTD KNOB:SHFT:1.60 OD X 1.56720-0232KNOB:SHFT:1.60 OD X 1.56
34 734-0594RIM 8.0X5.38
35 MTD WASH:BLVL:.340 x .872 x .060736-0242WASH:BLVL:.340 x .872 x .060
36 MTD SCREW HHCS:5/16-24:.750GR5LOCK710-0627SCREW HHCS:5/16-24:.750GR5LOCK
37 734-0275TIRE-TUBELESS
37 734-0591WHEEL ASSY W/TIRE
38 MTD PIN:COT:1/8 x 1.25714-0470PIN:COT:1/8 x 1.25
39 732-0389SPRING,EXT.1"
40 MTD VALVE - TUBELESS AIR734-0255VALVE - TUBELESS AIR
41 16475LEVER ASSY-SELECTOR
42 732-0499COMPR. SPRING .41 OD X 1.50 LG
43 MTD SCR:AB:#8-18:0.500:HXINDWH710-0227SCR:AB:#8-18:0.500:HXINDWH
44 726-0222PLATE-INSULATOR NUT
45 732-0420SPRING-SWITCH
46 710-0289HHCS:1/4-20:.50:GR2:STD
47 16476LINK-SHIFT LEVER ADJ
48 732-0487SPRING-EXTENSION
49 MTD HHCS:5/16-18:2.50:GR5:STD710-0378HHCS:5/16-18:2.50:GR5:STD
50 747-0668ROD-SHIFT LINK
51 MTD INTERNAL COTTER PIN714-0149BINTERNAL COTTER PIN
52 717-0775TRANSMISSION
53 710-0136HHCS:1/4-20:1.75:GR5:STD
54 710-0180HHCS:3/8-24:.750:GR5:STD
55 15564ABRACKET-TORQUE ROD
56 712-0287NUT:HEX:1/4-20:GR2
57 MTD WASHER:LOCK:1/4:REGULAR DUTY736-0329WASHER:LOCK:1/4:REGULAR DUTY
58 710-0955
59 17515ABRACKET-SUPPORT
60 710-0597SCR:HHCS:1/4-20:1.00:GR5:SPEC
61 MTD NUT:JAMLK:3/8-24:GR2712-0262NUT:JAMLK:3/8-24:GR2
62 15552SUPPORT ASSY-TRANS
63 MTD BELT-V754-0240BELT-V
64 710-0693SCREW-HEX
65 MTD NUT:JAMLK:3/8-24:GR2:NYLON712-0116NUT:JAMLK:3/8-24:GR2:NYLON
66 756-0390PULLEY
67 756-0116PUL:IDLR:V TYPE X 3.06 DIA
68 MTD SPR:EXTN:.50 DIA x 6.37 LG732-0308SPR:EXTN:.50 DIA x 6.37 LG
69 MTD SCREW HHCS:7/16-20:1.00:GR5STD710-0314SCREW HHCS:7/16-20:1.00:GR5STD
70 MTD WASHER:LOCK:7/16:REGULAR DUTY736-0171WASHER:LOCK:7/16:REGULAR DUTY
71 756-0521PULLEY
72 15623GUARD-ENG BELT-UPR
73 736-0219WASH:BELL:.389 x 1.120 x.030
74 750-0686SPACER
75 MTD KEY:SQ:1/4:2.00714-0114KEY:SQ:1/4:2.00
76 736-0921WASHER:LOCK:1/2:REGULAR DUTY
77 736-0226WASHER:FLAT:.474 x.879 x.064
78 MTD BELT:V-TYP:5L:35.25:POLY754-0241ABELT:V-TYP:5L:35.25:POLY
79 750-0706SPACER
80 MTD THRUST BEARING741-0405THRUST BEARING
81 712-0922NUT-HEX JAM
82 711-0676SPACER
83 748-0294BUSHING, BRUSH SHAFT (PM)
84 MTD FL-WASH .640 IDX1.24 OD X .06736-0187FL-WASH .640 IDX1.24 OD X .06
85 155698
86 736-0283WASHER-THRUST
87 MTD SPR:EXTN:.94 X 7.57 LG732-0556SPR:EXTN:.94 X 7.57 LG
88 736-0284WASH:FLAT:.380x3.500x.015:HD
89 15585BRACKET ASSY-IDLER
90 711-0747PIN:GDE:.250 DIA x 1.68 LG
91 747-0560ROD-LOCKOUT
92 735-0196PAD:FOOT:4.6 LONG
93 17713BRACKET-MTG
94 15642BRACKET ASSY
97 712-0798NUT:HEX:3/8-16:GR2
98 MTD WASHER:LOCK:3/8:HEAVY DUTY736-0217WASHER:LOCK:3/8:HEAVY DUTY
99 710-0118HHCS:5/16-18:.75:GR2:STD
100 16482LOCK PLATE
101 712-0265SEMS HEX NUT 5/16-18
102 MTD WASHER:BLVL:.265 x .750 x .060736-0270WASHER:BLVL:.265 x .750 x .060
103 726-0231CUP-RETAINER
104 747-0758GUARD-BELT
105 MTD BRG:NDL:.5625 IDx.7500x.5550741-0404BRG:NDL:.5625 IDx.7500x.5550
