MTD B 145 13AM675G678 (1997) Dashboard, Engine hood, Fender Ricambi

SCR:TT:1/4-20:.750:HXINDWSH

MTD SCR:TT:1/4-20:.750:HXINDWSH
Articolo numero:
710-0642
Posizione:
47
Modell Year:
B 145 / 1996 B 145 / 1997 B 155 / 1997 B 160 / 1996 B/160 / 1997 B/160 / 1997
DINNORM:
MTD SPEC-701-01002 910-0642
3.79 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
in magazzino in magazzino

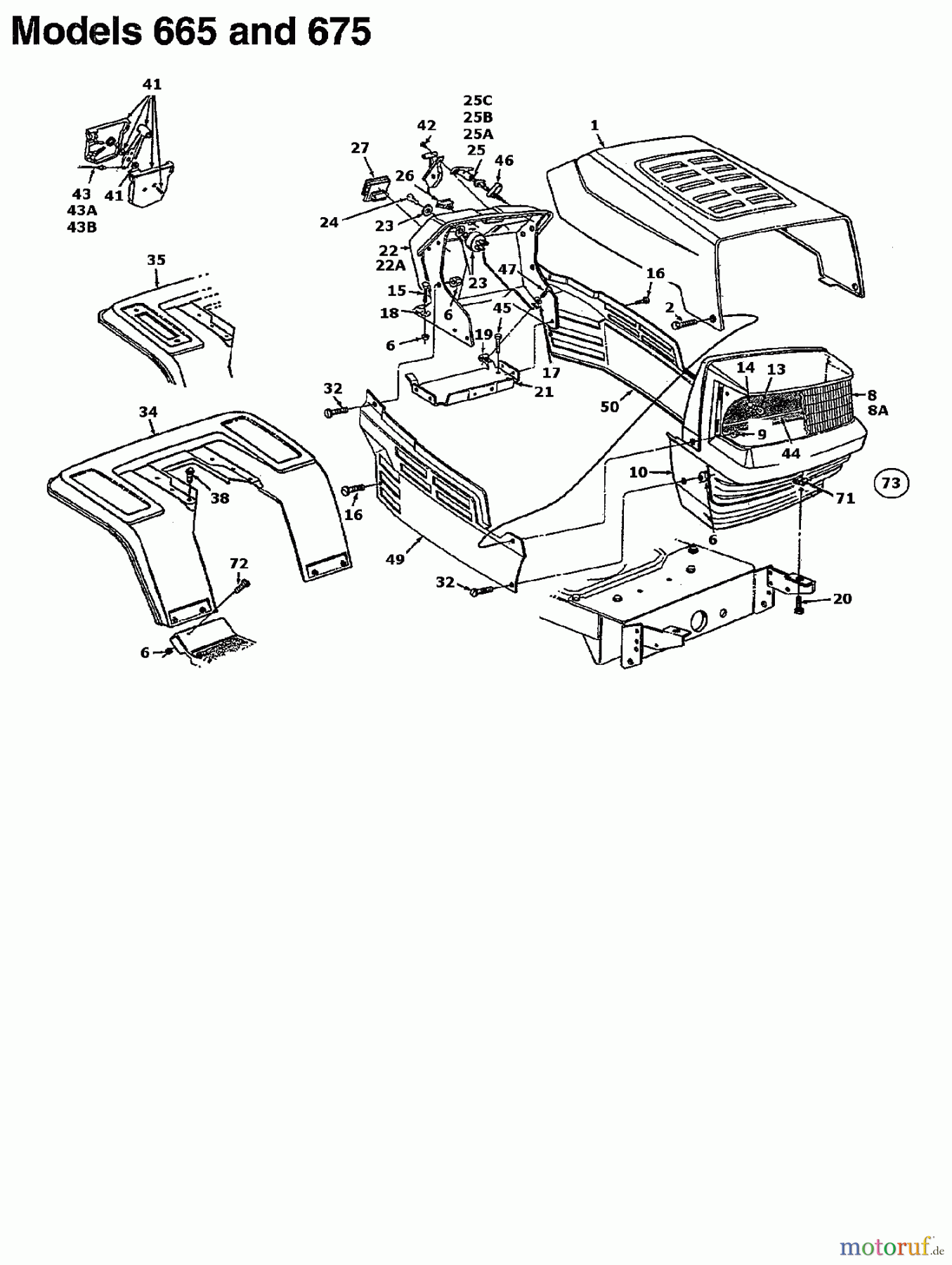

MTD Lawn tractors B 145 13AM675G678 (1997) Dashboard, Engine hood, Fender
PosizioneArticolo numeroDescrizione
1 783-0250HOOD:STY'0'W/LOUVERS-FORME
2 738-0952SCR:SHLDR:.375 X.125:1/4-20
6 MTD NUT:SEMS:1/4-20712-0271NUT:SEMS:1/4-20
8 MTD LENS "0" STYLE w/o ICON731-1099ALENS "0" STYLE w/o ICON
8A 731-1767LENS:7 0 STY
9 MTD NUT:FLGLK:1/4-20:GRF712-3027NUT:FLGLK:1/4-20:GRF
10 731-1097DGrille
13 MTD LAMP:#1156725-0963LAMP:#1156
14 MTD SOC:LAM: 1/4 TURN725-1649SOC:LAM: 1/4 TURN
15 MTD SCR:CRG:1/4-20:.75:GR5710-0703SCR:CRG:1/4-20:.75:GR5
16 MTD SCREW:TT:1/4-20:0.500:HXINDWSH710-0599SCREW:TT:1/4-20:0.500:HXINDWSH
17 736-0173WASH:FL:.28ID:.74OD:.063
18 726-0233NUT:PUSH:.25 ID X .50 OD
19 MTD ZIP TWIST FASTENER (FOR Ò 1/4712-0185ZIP TWIST FASTENER (FOR Ò 1/4
20 710-0118HHCS:5/16-18:.75:GR2:STD
21 17632ABRKT:BAT:SUPT
22 731-1096BInstrument panel
22A 731-1337APANEL SUPPORT
23 725-0267SW:IGN:5 PIN
24 MTD KEY:IGN:STD725-0201KEY:IGN:STD
25 MTD CHOKE CONTROL 23" GREEN746-0616ACHOKE CONTROL 23" GREEN
25A MTD CONT:CHOKE:SNAP MT X 38" LG746-0614ACONT:CHOKE:SNAP MT X 38" LG
25B 746-3021CONT:CHOKE:SNAP MT X 29 LG
25C 746-0720CHOKE CONTROL CABLE
26 MTD SW:ROCKER725-0634SW:ROCKER
27 725-0925SQUARE AMMETER
32 MTD SCR:MACH:1/4-20:0.750 PANPHI710-0924SCR:MACH:1/4-20:0.750 PANPHI
34 17870AFENDER-RR
35 17871BFENDER-RR
38 MTD SCR:AB:5/16-12:0.750:HXINDWSH710-0726SCR:AB:5/16-12:0.750:HXINDWSH
41 MTD THROTTLE CONTROL BOX ASSY831-0823ATHROTTLE CONTROL BOX ASSY
42 MTD SCR:AB:#10-16:0.500:TRUSPHI710-0779ASCR:AB:#10-16:0.500:TRUSPHI
43 MTD WIRE:THROT:X 18.5746-0776WIRE:THROT:X 18.5
43A MTD THROTTLE WIRE X 35.0 BLUE746-0634THROTTLE WIRE X 35.0 BLUE
43B MTD THROTTLE WIRE 22.0 GOLD746-0638THROTTLE WIRE 22.0 GOLD
44 777-9206LBL:GRILL:"0" STYLE
45 710-0603SCR:B:5/16-12:0.500:HXINDWSH
46 17782CHOKE CABLE RETAINER CLIP
47 MTD SCR:TT:1/4-20:.750:HXINDWSH710-0642SCR:TT:1/4-20:.750:HXINDWSH
48 MTD WASHER:BLVL:.265 x .750 x .060736-0270WASHER:BLVL:.265 x .750 x .060
49 783-0150APANEL-SIDE-RH
50 783-0151END PLATE
71 726-0211NUT:U:5/16-18
72 710-0286SCREW
73 629-0308HARN ASM:600/700:9.5" HDLT
