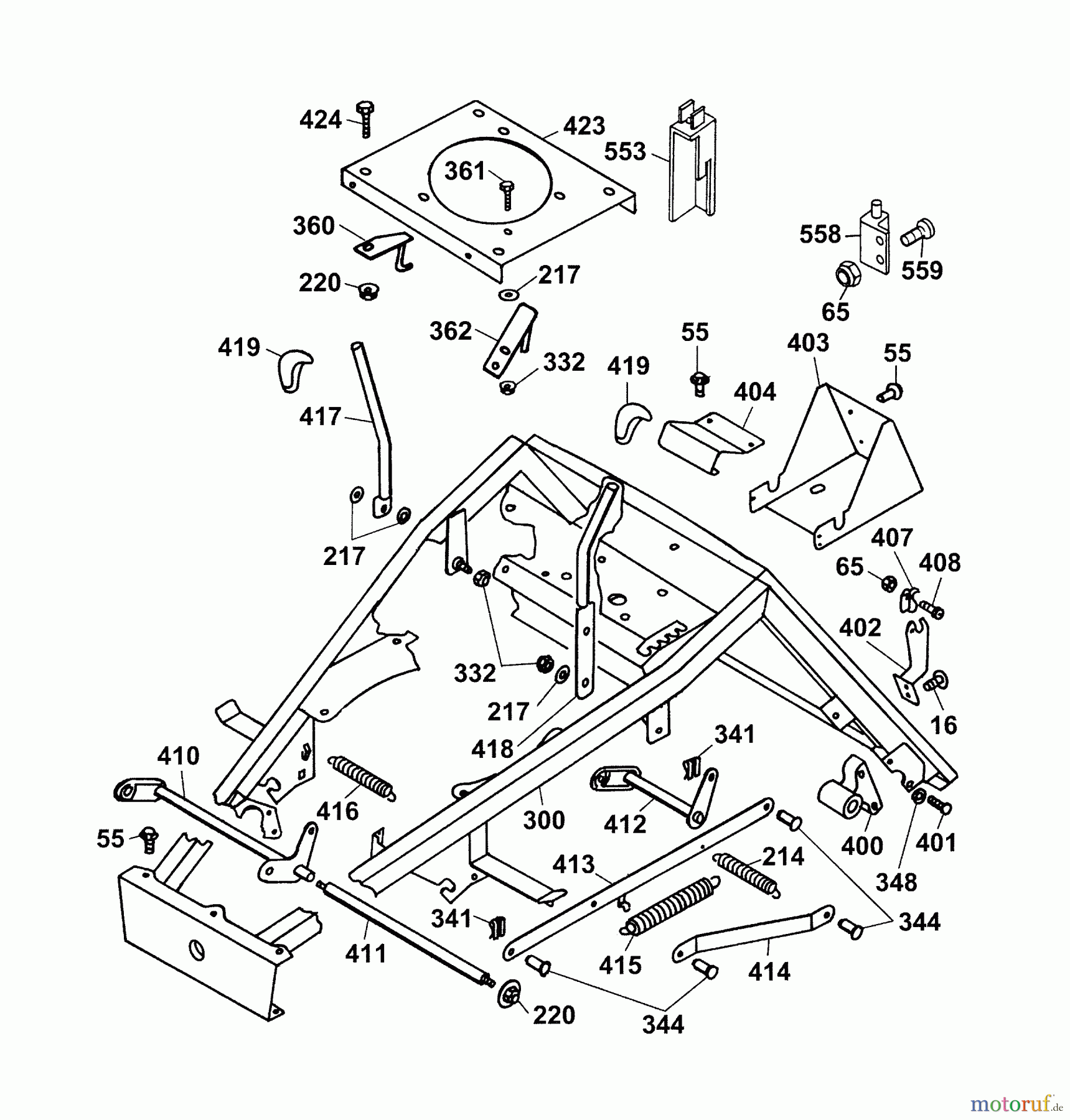

Wolf-Garten Scooter OHV 3 6995000 Series D (2003) Height adjustment, Lower frame Ricambi
BRACKET
Articolo numero:
6150438
Posizione:
403
Modell Year:
Scooter OHV 3 / 2003 Scooter SV 4 / 2003
non più disponibile
| Posizione | Articolo numero | Descrizione | |
| 16 |  | 0010893 | SCREW |
| 55 | 0010892 | SCREW | |
| 65 | 0016309 | NUT | |
| 214 |  | 6150168 | TENSION SPRING |
| 217 | 0017289 | DISC | |
| 220 | 0016385 | NUT | |
| 300 | 6155046 | LOWER FRAME | |
| 332 | 0016311 | NUT M6 | |
| 341 | 0020981 | RETAINING CLIP | |
| 344 | 6340214 | BOLT (SV4/SV4M) | |
| 348 | 0017909 | SPRING WASHER | |
| 360 | 6155038 | GUIDE PLATE | |
| 361 | 0010377 | SCREW | |
| 362 | 6155038 | GUIDE PLATE | |
| 400 | 6150150 | Axle Support | |
| 401 |  | 0010389 | SCREW |
| 402 | 6155104 | SUPPORT FOR GRASS BOX | |
| 403 | 6150438 | BRACKET | |
| 404 | 6150428 | CLAMP PLATE | |
| 407 | 6150465 | LATCH SPRING | |
| 408 | 0012857 | SCREW M4 X 16 | |
| 410 | 6150038 | DECK SUPPORT CROSS SHAFT, FRON | |
| 411 | 6150190 | CROSS SHAFT PIVOT PIN | |
| 412 | 6150039 | DECK SUPPORT CROSS SHAFT, REAR | |
| 413 | 6150012 | CONNECTING ROD | |
| 414 | 6150440 | LINK | |
| 415 | 6150413 | TENSION SPRING | |
| 416 | 6155447 | TENSION SPRING | |
| 417 | 6155027 | gearshift | |
| 418 | 6155021 | SCHALTHEBEL KPL. LACKIERT | |
| 419 | 6155318 | GEAR KNOB | |
| 423 | 6155124 | ENGINE PANEL | |
| 424 | 0010335 | SCREW | |
| 553 | 6150329 | COVER FOR SWITCH | |
| 558 | 6990061 | SWITCH, FOR GRASS CATCHER | |
| 558 | 6150061 | SWITCH, FOR GRASS CATCHER | |
| 559 |  | 0010931 | SCREW |
