Wolf-Garten Cart SV 3 6110000 Series B (1999) Deck housing, Blade, Blade adapter Ricambi

Name: Sac plastique avec mode d' emploi
Price: 38.54 EUR

Sac plastique avec mode d' emploi

Articolo numero:

6165030

Posizione:

***

Modell Year:

Cart OHV 2 / 1999 Cart SV 3 / 1999 Cart OHV 2 M / 1999 Cart SV 3 M / 1999

38.54 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Articolo aggiunto al carrello1

Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

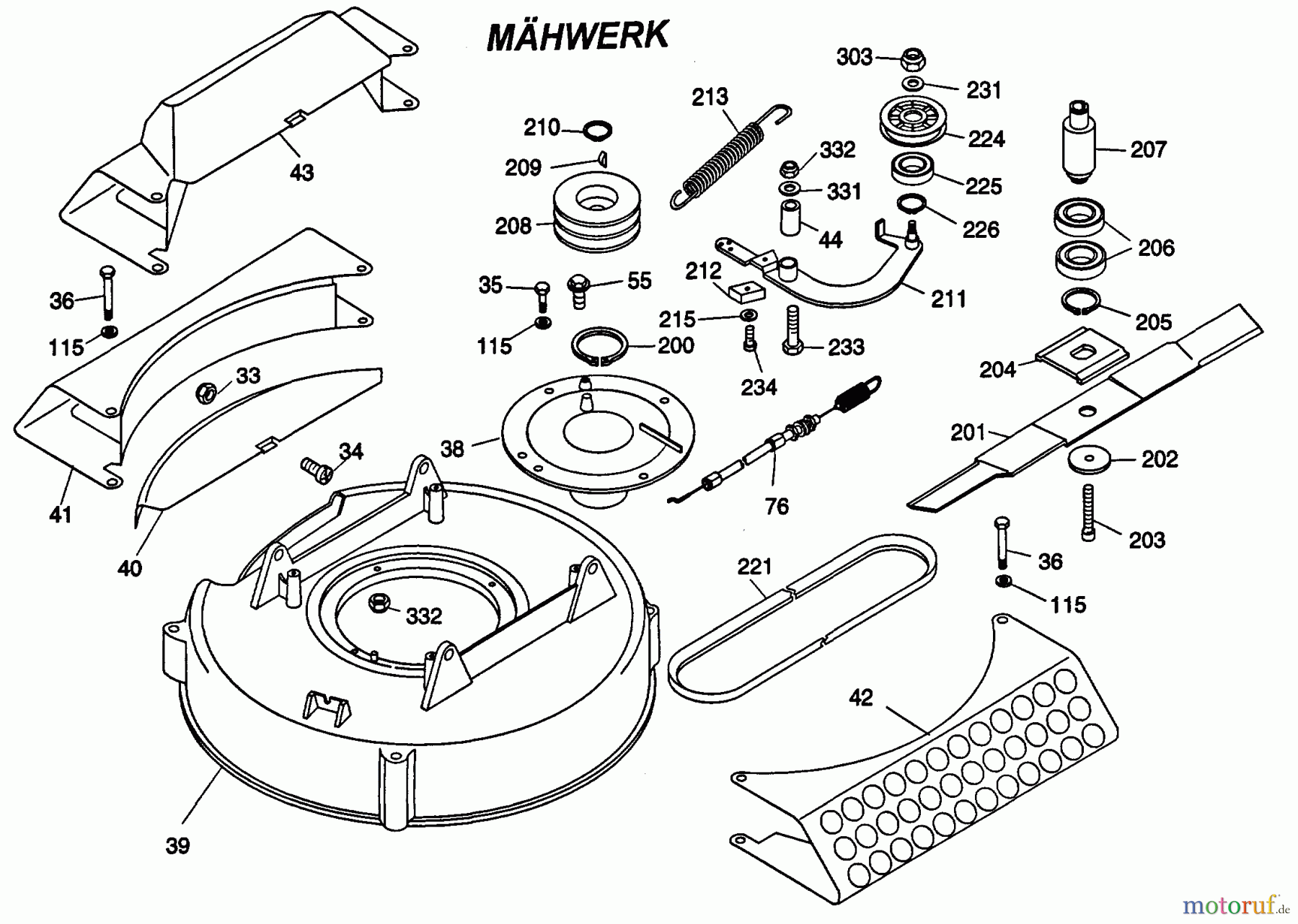

Posizione	Articolo numero	Descrizione
33	0016310	HEXAGON NUT M5
34	0012864	OVAL HEAD SCREW
35	0010365	SCREW
36	0010315	SCREW
38	6110423	BEARING
38	6165422	BEARING
39	6110421	CHASSIS
39	6165420	CHASSIS
40	6110433	PANEL
40	6165421	PANEL
41	6110068	PANEL
42	6110424	PANEL
43	6110070	PANEL
44	6150165	DISTANCE BUSH
55	0010892	SCREW
76	6110056	BOWDEN WIRE
115	0017121	WASHER A6,4
200	0021055	CIRCLIP
201	6110400	BLADE
201	6150400	BLADE
202	6150441	CONE SPRING WASHER
203	0011420	SCREW
204	6150427	BLADE HOLDER
205	0020028	CIRCLIP
206	0023098	BEARING
207	6110179	BLADE SHAFT
208	6110168	V-BELT PULLEY
209	0028769	FEATHER KEY
210	0020022	CIRCLIP
211	6110064	LEVER
212	6110302	BRAKE
213	6110195	EXTENSION SPRING
215	0017287	DISC
221	0039212	V-BELT
224	6150166	INSTEP ROLL
225	0023091	BEARING
226	0021020	CIRCLIP
231	0017123	WASHER
233	0010311	SCREW
234	0012865	SCREW
303	0016312	HEXAGON NUT M8
331	0017289	DISC
332	0016311	NUT M6
***	6110201	DECAL, GEARCHANGE
***	6110202	DECAL, CUTTING HEIGHT ADJUSTME
***	6150203	DECAL, BLADE DRIVE ENGAGEMENT
***	0051232	SICHERHEITSETIKETT SCOOTER
***	0051124	WOLF-GARTEN LABEL
***	6110030	POLY BAG WITH SELF-ASSEMBLY PA
***	6165030	Sac plastique avec mode d' emploi
***	6965030	POLY BAG WITH SELF-ASSEMBLY PA
***	6110205	ASSEMBLY INSTRUCTIONS
***	0054137	Operator manual
***	0054140	OPERATOR INSTRUCTIONS
***	6110043	KEY HOOK
***	6110207	INFORMATION SHEAT
