MTD T/450 21AB454B678 (2017) Handle Ricambi

SLOTTED-HEAD SCREW 10-32X.75

Articolo numero:
710-1887
Posizione:
9
Modell Year:
T/450 / 2014 T/450 / 2015 T/450 / 2016 T/450 / 2017 T/450 / 2018
DINNORM:
710-1887
Description:
10-32X0.75
non più disponibile

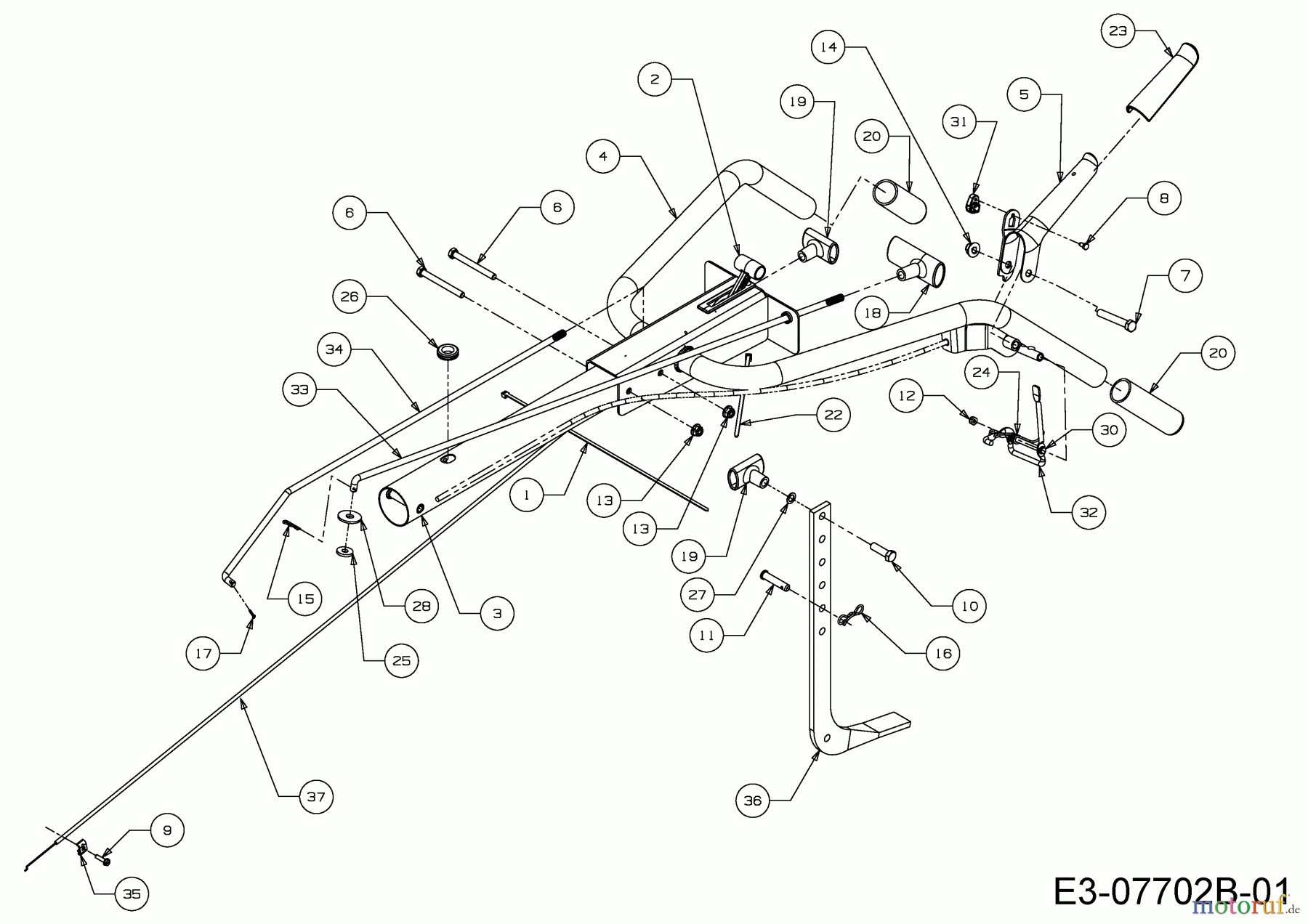

MTD Tillers T/450 21AB454B678 (2017) Handle
PosizioneArticolo numeroDescrizione
1 725-0157CBL:TIE: 3/16 X .05 X 7.4
2 MTD ENGINE SWITCH CPL.931-0823AENGINE SWITCH CPL.
3 649-04105
4 649-04126
5 684-04399A
6 710-0189HHCS:5/16-18:3.00:GR5:STD
7 710-0859SCREW HHCS:3/8-16:2.50:GR5:STD
8 MTD HEX. SCREW B:#10-16:0440:HEX710-0919HEX. SCREW B:#10-16:0440:HEX
9 710-1887SLOTTED-HEAD SCREW 10-32X.75
10 MTD SCREW HHCS:3/8-16:1.25:GR5:STD710-3005SCREW HHCS:3/8-16:1.25:GR5:STD
11 MTD PIN:CLEVIS: .375 x 1.75711-0415PIN:CLEVIS: .375 x 1.75
12 MTD NUT:HEXLK:#10-24:GR2:NYLON712-0161NUT:HEXLK:#10-24:GR2:NYLON
13 MTD FLANGED NUT 5/16-18:GRF:NYLON712-04063FLANGED NUT 5/16-18:GRF:NYLON
14 MTD NUT:FLGLK:3/8-16:GRF:NYLON712-04065NUT:FLGLK:3/8-16:GRF:NYLON
15 MTD PIN:COT:.072 DIA x 1.13 LG714-0104PIN:COT:.072 DIA x 1.13 LG
16 MTD PIN COTTER:BOW - TIE 91714-04043PIN COTTER:BOW - TIE 91
17 MTD PIN:COT:3/32 X .750714-0507PIN:COT:3/32 X .750
18 720-0209KNOB-T
19 720-0210AKNOB-T
20 720-04083HANDLE GRIP
22 725-0157CBL:TIE: 3/16 X .05 X 7.4
23 731-0869GRIP
24 732-04965SPRING-EXTENSION
25 735-0127WASHER-RUBBER
26 735-0226GROM:RUBR:.66 ID/1.125 OD/.09
27 736-0117WASH:FLAT:.385 x.620 x.033
28 736-0133WASHER:FLAT:.411 X 1.250 X.100
30 738-04555SCREW SHOULDER
31 746-0605SUPPORT
32 747-05717CLUTCH LEVER LOCK
33 747-0664ROD-CONTROL
34 747-0666ROD-CONTROL
35 751B221535CLAMP:CASING
36 786-0120BAR ASSY-DEPTH
37 746-0513BCABLE
