BRACKET-BATTERY

Articolo numero:
783-04004
Posizione:
32B
DINNORM:
FINISH:LACKIERT
Modell Year:
404 / 2003 TS PINTO / 2003 / 2003 Pinto / 2003 Pinto E-Start / 2003
non più disponibile

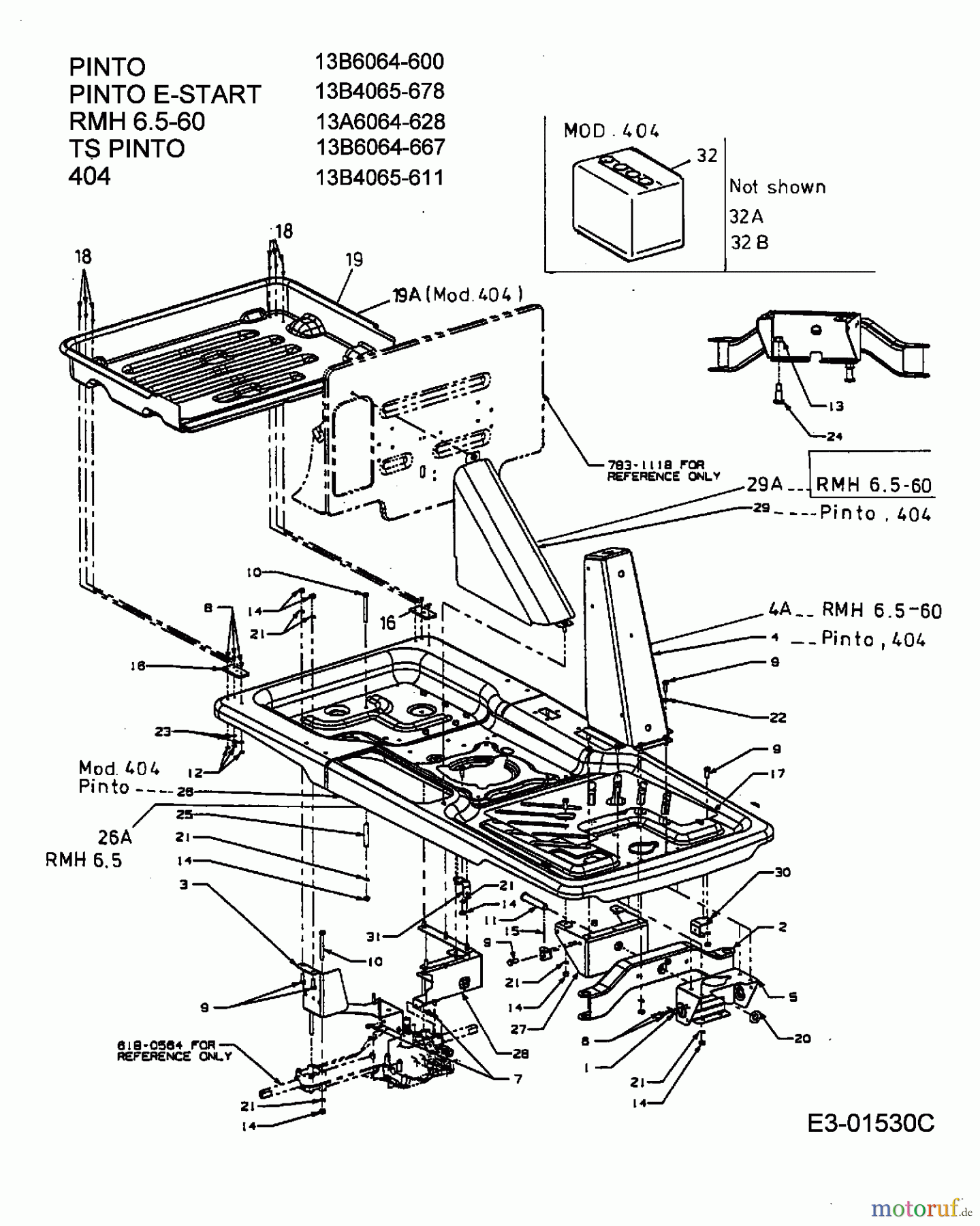

MTD Lawn tractors Pinto E-Start 13B4065-678 (2003) Battery, Front axle
PosizioneArticolo numeroDescrizione
1 17962SWITCH PLATE
2 683-0142637FRONT AXLE ASSY.
3 683-0581637SUPPORT R.H. TRANSMISSION
4 683-0591638BRKT ASM:SUPT:TRANS RH
4A 683-0591665STEERING COLUMN BRACKET
5 683-0593637SUPPORT-PIVOT BRACKET FRONT
6 710-0224SCR:AB:#10-16:0.500:HXINDWSH
7 MTD SCREW:TT:1/4-20:0.500:HXINDWSH710-0599SCREW:TT:1/4-20:0.500:HXINDWSH
8 710-1752SCR:CSK:M4-1:12.00
9 710-1681HHCS:M8-1.25:20.00:GR8.8:STD
10 710-1708SCREW M10x60-8.8 DIN 931
11 711-1165PIN:CLV:.625 DIA x 3.075 LG
12 712-0640NUT:HEX:M4 DIN 934-8
13 MTD NUT:FLGLK:3/8-16:GRF:TOP LK712-0431NUT:FLGLK:3/8-16:GRF:TOP LK
14 MTD NUT:HEX:M8-1.25 DIN 934712-0690NUT:HEX:M8-1.25 DIN 934
15 MTD PIN:COT:1/8 x 1.25714-0470PIN:COT:1/8 x 1.25
16 723-0491HGE:TRAY
17 723-0604PAD:FOOT:ABRASIVE
18 728-0285RIV:POP:5mm DIA x 8mm LG STD
19 731-2360TRAY:BAG
19A 731-2644TRAY:BAG
20 MTD FL-WASH .640 IDX1.24 OD X .06736-0187FL-WASH .640 IDX1.24 OD X .06
21 736-0649WASHER:LOCK:B8:DIN 12
22 736-0700WASH:FLAT:8.4 x 16 x 1.60
23 736-0765WASHER:LOCK:B4 DIN 127:
24 738-0145SCREW-SHLD
25 750-1293SPACER
26 783-1081638CHASSIS
26A 783-1081665ROD-FRAME
27 783-1097637BRKT:RR:PVT SUPT
28 783-1101637SUPPORT L.H., TRANSMISSION
29 783-1148638CHUTE BRACKET (Y.M. GREEN)
29A 783-1148665CHUTE BRACKET (Y.M. GREEN)
30 783-1260BRKT:STOP:PIVOT
31 783-1292CABLE BRACKET
32 725-1698BAT: U1: 125 CCA WET
32A 731-04013CVR:BATT:DX 60
32B 783-04004BRACKET-BATTERY
