MTD Minirider 60 SDE 13AA26JC600 (2018) Mowing deck C (24"/60cm) Ricambi

NUT:FLGLK:3/8-16:GRF:NYLON

Nota: Questo articolo è2 volte installato nel dispositivo, il prezzo è per pezzo!

Articolo numero:

712-04065

Posizione:

Modell Year:

60 SDE / 2017 Minirider 60 SDE / 2017 Minirider 60 SDE / 2018

Description:

3/8-16 NYLON

DINNORM:

FINISH:SPEC-100015 912-04065

3.99 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Articolo aggiunto al carrello1

in magazzino

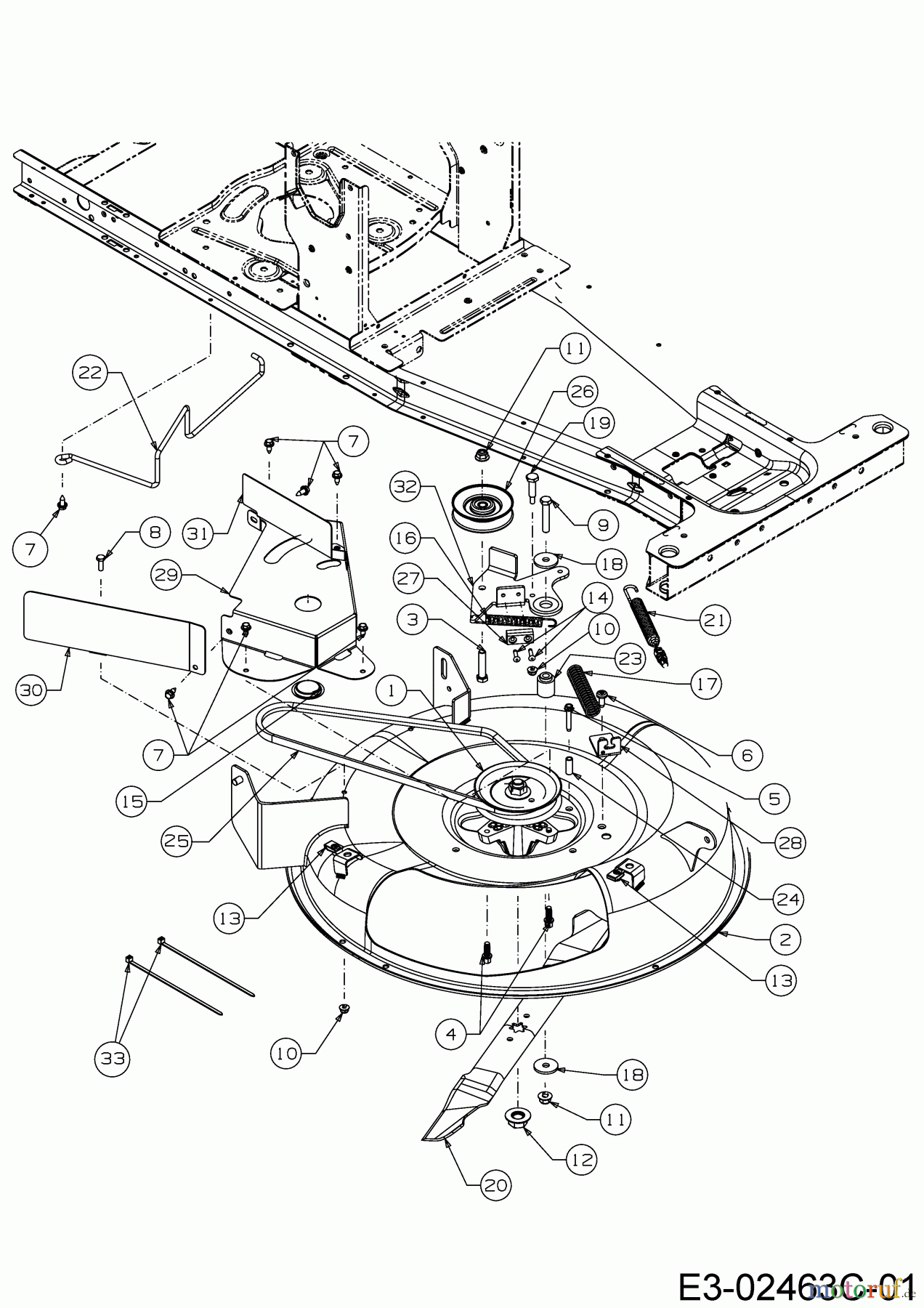

Posizione	Articolo numero	Descrizione
1	618-06032	SPINDLE ASSY.
2	683-05008A-S	DECK ASM 24" POWDER BLACK
3	710-0347	HHCS:3/8-16:1.75:GR5:STD
4	710-06322	SCR:TT:5/16-18:0.875:HEX
5	710-0778	SCR:TT:1/4-20:1.500:HXINDWISH
6	710-1611B	SCR:TT:5/16-18:0.750:PANTRXI
7	710-1652	SCR:TT:1/4-20 x.625:HXINDWH
8	710-3015	HHCS:1/4-20:.75:GR5:STD
9	710-3144	HHCS:3/8-16:2.00:GR5:STD
10	712-04064	NUT:FLGLK:1/4-20:GRF:NYLON
11	712-04065	NUT:FLGLK:3/8-16:GRF:NYLON
12	712-0417A	NUT:FLG:5/8-18
13	726-0211	NUT:U:5/16-18
14	728-0173	RIV:POP: .187 DIA:#68
15	731-10231	END PLUG
16	732-0470A	EXTENSION SPRING .53 OD X 4.75
17	732-0583	SPR:CMPRS:.625 ID. X 4.0 LG
18	736-0320	WASH:FLAT:.380 x.1.380 x.125
19	738-0572	SCR:SHLD:.374 DIA x 1.16 LG
20	742-0760	BLADE:24":STAR 3 IN 1
21	746-05009	CBL:PTO:CR12 24"
22	747-06421	GUARD NLAUD
23	750-04859C	SPCR:SHLDR:0.383X0.711X0.193
24	750-0566A	SPCR:0.255 X 0.376 X 1.030 LG
25	754-05001	BELT:V TYP:A SEC:43.5 LG
26	756-05004	PUL:3.54" DIA
27	761-04017	PAD:BRAKE:SPINDLE 38 & 42 MAN
28	783-06243637	RETAINER BOWDEN CONTROL CABLE
29	783-08136B-S	COVER SPINDLE
30	783-08593637	COVER-BELT
31	783-08594637	COVER DECK
32	783-08756	BRKT:DECK:IDLER PIVOT
33	725-0157	CBL:TIE: 3/16 X .05 X 7.4
