HOUSING ASSEMBLY 22" YM GREEN

Articolo numero:
684-04067665
Posizione:
28A
DINNORM:
684-04067-0665
Modell Year:
611 D / 2006 611 D / 2006 YM 5655 DE / 2006
non più disponibile

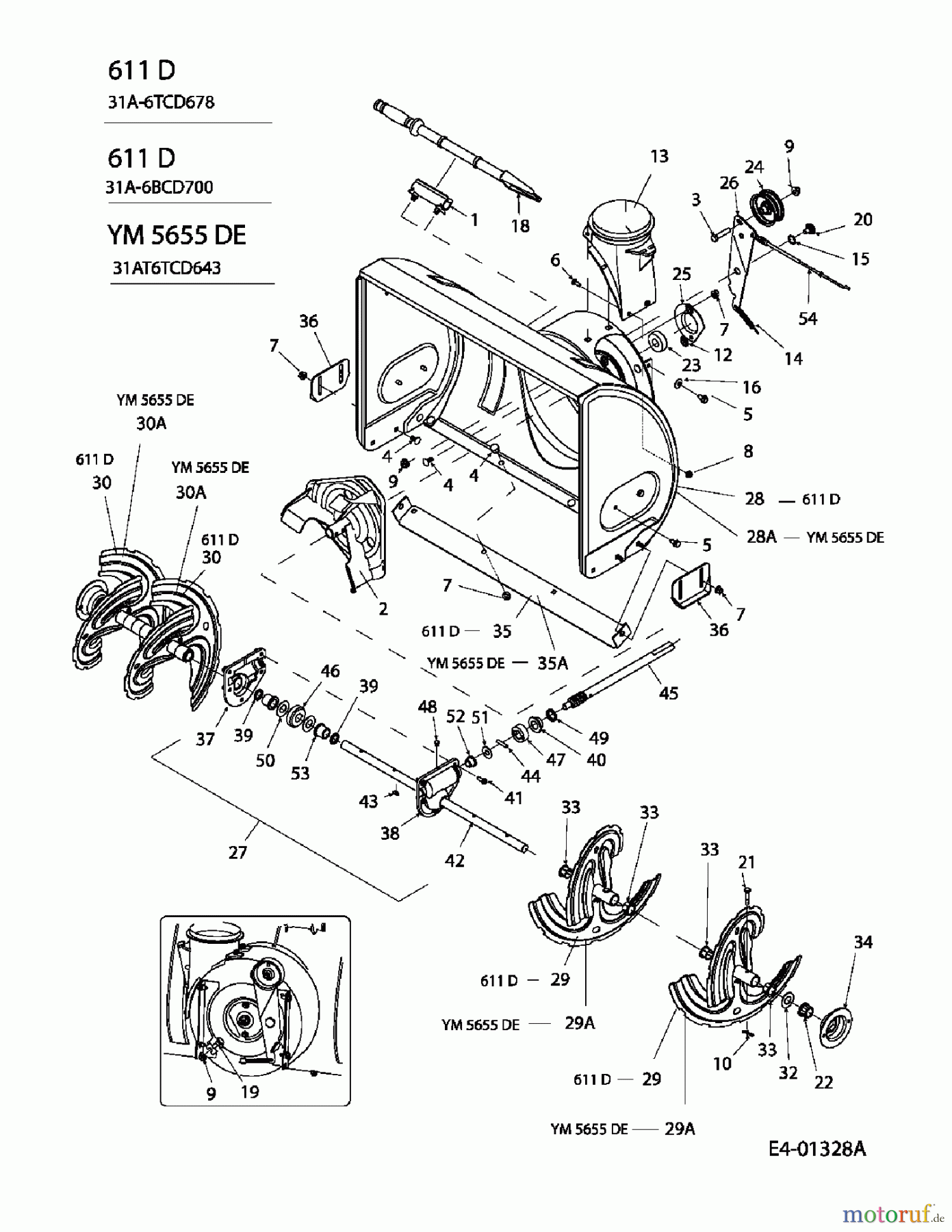

MTD Snow throwers 611 D 31A-6BCD700 (2006) Auger housing, Auger, Auger gearbox
PosizioneArticolo numeroDescrizione
1 731-2635MOUNTING BRACKET - CHUTE TOOL
2 684-04057637IMPELLER ASSEMBLY BLACK
3 MTD HHCS:3/8-16:1.75:GR5:STD710-0347HHCS:3/8-16:1.75:GR5:STD
4 MTD BOLT:CRG:5/16-18:.750 GR1710-0451BOLT:CRG:5/16-18:.750 GR1
5 MTD SCREW:TT:5/16-18:0.625HXINDWSH710-0604ASCREW:TT:5/16-18:0.625HXINDWSH
6 MTD SCR:CRG:1/4-20:.75:GR5710-0703SCR:CRG:1/4-20:.75:GR5
7 MTD FLANGED NUT 5/16-18:GRF:NYLON712-04063FLANGED NUT 5/16-18:GRF:NYLON
8 MTD NUT:FLGLK:1/4-20:GRF:NYLON712-04064NUT:FLGLK:1/4-20:GRF:NYLON
9 MTD NUT:FLGLK:3/8-16:GRF:NYLON712-04065NUT:FLGLK:3/8-16:GRF:NYLON
10 MTD PIN-COTTER714-04040PIN-COTTER
12 726-04012NUT:PUSH-ON:.25 DIA
13 731-04705CHUTE ADAPTER 5" DIA
14 MTD SPR:EXTN:.38 OD x 3.6 LG732-0611SPR:EXTN:.38 OD x 3.6 LG
15 MTD WASHER:WAVE:.625x.885x.015736-0174WASHER:WAVE:.625x.885x.015
16 MTD WASH:BLVL:.340 x .872 x .060736-0242WASH:BLVL:.340 x .872 x .060
17 736-0463WASH:FLAT: .250 x .630 x .052
18 MTD CHUTE CLEAN-OUT TOOL731-2643CHUTE CLEAN-OUT TOOL
19 738-0143SCR:SHLDR:.496x.336:3/8-16
20 738-0281SCR:SHLDR:.625 x.17:3/8-16
21 MTD PIN-SHEAR:.25 x 1.50:GR2738-04124APIN-SHEAR:.25 x 1.50:GR2
22 MTD BRG:HEX FLANGE x.75 ID741-0245BRG:HEX FLANGE x.75 ID
23 MTD BALL BRG:.75 ID x 1.85 OD FLNG741-0309BALL BRG:.75 ID x 1.85 OD FLNG
24 756-0981APUL:IDLR: FLAT 2.75 OD
25 790-00075BEARING HOUSING 1.85 ID
26 790-00080637BRACKET, AUGER IDLER W/BRAKE
27 618-04170GEARBOX AUGER 22"
28 684-04067638HOUSING ASSEMBLY 22"
28A 684-04067665HOUSING ASSEMBLY 22" YM GREEN
29 684-04107637AUGER ASM-LH
29A 684-04107674AUGER ASM LH YM YELLOW
30 684-04108637SPIRAL ASM: RH POWDER BLACK
30A 684-04108674AUGER ASM-RH YM YELLOW
32 MTD WASH:FLAT:.760x1.490X.060:HD736-0188WASH:FLAT:.760x1.490X.060:HD
33 MTD BUSH:FLG:.800 ID x.910 OD741-0493ABUSH:FLG:.800 ID x.910 OD
34 790-00087AHOUSING, BEARING:1" HEX
35 790-00117637PLATE-SHAVE 22"
35A 790-00117638PLATE-SHAVE 22"
36 784-5580SHOE:SLIDE:600 SNOW
37 618-0123RH REDUCER HOUSING
38 618-0124LEFT HOUSING
39 MTD OIL SEAL 3/4 ID721-0179OIL SEAL 3/4 ID
40 741-0662BRG:HEX FLG:.628 ID:SPLIT
41 MTD SCR:TT:1/4-20:.750:HXINDWSH710-0642SCR:TT:1/4-20:.750:HXINDWSH
42 711-04286SHAFT AUGER 27.50"
43 714-0161KEY:HI-PRO:3/16 x 5/8
44 715-04021PIN-CLEVIS
45 717-04126AXLE-FR
46 717-0528AGEAR-WORM
47 718-04071BUSH
48 721-0325GREASE PLUG
49 721-0327SEAL-OIL
50 736-0351WASH:SHIM:.760x1.500X.030:HD
51 MTD WASH:THRST:.510 X 1.120 X .060736-3084WASH:THRST:.510 X 1.120 X .060
52 741-0663BRG:HEX FLG:.628 ID:SPLIT
53 741-0661AFLANGE BEARING
54 MTD CBL:CLU:DR:AUGER:47.48 LG746-04230CBL:CLU:DR:AUGER:47.48 LG
