MTD E 660 G 31AE660G678 (2001) Auger housing, Auger, Auger gearbox Ricambi

NUT:JAMLK:3/8-24:GR2:NYLON

MTD NUT:JAMLK:3/8-24:GR2:NYLON
Articolo numero:
712-0116
Posizione:
1
DINNORM:
FINISH:MTD STD 701-01000
Description:
3/8-24
Modell Year:
E 640 F / 2001 E 640 F / 2002 E 640 F / 1999 E 640 F / 2000 E 660 G / 2001 E 660 G / 2002 E 660 G / 1999 E 660 G / 2000
3.75 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
yellow Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

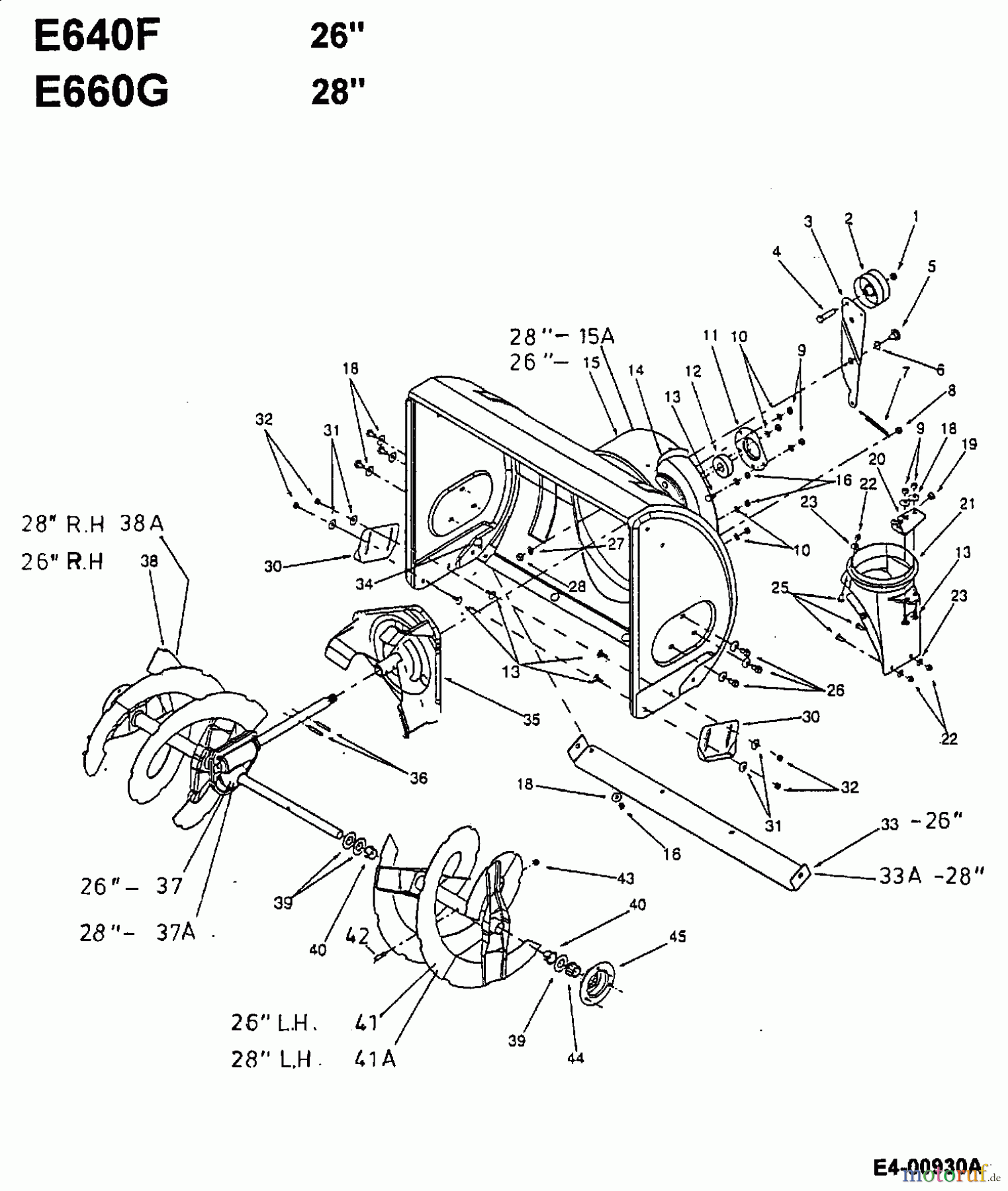

MTD Snow throwers E 660 G 31AE660G678 (2001) Auger housing, Auger, Auger gearbox
PosizioneArticolo numeroDescrizione
1 MTD NUT:JAMLK:3/8-24:GR2:NYLON712-0116NUT:JAMLK:3/8-24:GR2:NYLON
2 756-0178TENSION PULLEY
3 784-5632AAUGER IDLER ARM
4 MTD HHCS:3/8-24:1.50:GR5:SPEC710-0459AHHCS:3/8-24:1.50:GR5:SPEC
5 738-0281SCR:SHLDR:.625 x.17:3/8-16
6 MTD WASHER:WAVE:.625x.885x.015736-0174WASHER:WAVE:.625x.885x.015
7 MTD SPR:EXTN:.38 OD x 3.6 LG732-0611SPR:EXTN:.38 OD x 3.6 LG
8 712-3068NUT:HEXLK:5/16-18:GR5:PATCH
9 MTD NUT:HEX:5/16-18:GR5712-3010NUT:HEX:5/16-18:GR5
10 MTD WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
11 MTD HOUSING BEARING5931HOUSING BEARING
12 MTD BALL BRG:.75 ID x 1.85 OD FLNG741-0309BALL BRG:.75 ID x 1.85 OD FLNG
13 MTD BOLT:CRG:5/16-18:.750 GR1710-0451BOLT:CRG:5/16-18:.750 GR1
14 705-5226REINFORCEMENT-CHUTE 5.0
15 684-0040CUSE 753-0616
15A 684-0041CUSE 753-0623
16 MTD NUT:HEX:5/16-18:GR5712-3010NUT:HEX:5/16-18:GR5
18 MTD WASH:BLVL:.340 x .872 x .060736-0242WASH:BLVL:.340 x .872 x .060
19 MTD BRG:FLG:SNAP .385 ID741-0475BRG:FLG:SNAP .385 ID
20 784-5647BRACKET: CHUTE CRANK
21 731-1379ACHUTE ADAPTER
22 712-0324NUT:HEXLK:1/4-20:GR8:NYLON
23 736-0463WASH:FLAT: .250 x .630 x .052
25 MTD SCR:CRG:1/4-20:.75:GR5710-0703SCR:CRG:1/4-20:.75:GR5
26 710-0604SCREW TT:5/16-18:0.625HXINDWSH
27 MTD WASH:LOCK:3/8:REGULAR DUTY736-0169WASH:LOCK:3/8:REGULAR DUTY
28 712-0798NUT:HEX:3/8-16:GR2
30 784-5580SHOE:SLIDE:600 SNOW
31 MTD WASH:BLVL:.340 x .872 x .060736-0242WASH:BLVL:.340 x .872 x .060
32 MTD NUT:HEX:5/16-18:GR5712-3010NUT:HEX:5/16-18:GR5
33 784-5579A26" SHAVE PLATE
33A 784-5582APLATE-SHAVE-28IN
34 710-0260BOLT-CARRIAGE
35 684-0065IMPELLOR
36 715-0114SPRING PIN
37 MTD GEAR ASSY-26" AUGER618-0121GEAR ASSY-26" AUGER
37A 618-0122GRBX ASM -28"
38 605-5192ASPIRAL 26" RH
38A 605-5196ASPIRAL 28" RH
39 MTD WASH:FLAT:.760x1.490X.060:HD736-0188WASH:FLAT:.760x1.490X.060:HD
40 MTD BUSH:FLG:.800 ID x.910 OD741-0493ABUSH:FLG:.800 ID x.910 OD
41 605-5193ASPIRAL 26" LH
41A 605-5197ASPIRAL 28" LH
42 MTD BOLT:SHEAR:5/16-18:1.5:GR2710-0890ABOLT:SHEAR:5/16-18:1.5:GR2
43 MTD NUT:HEXLK:5/16-18:GR5:NYLON712-0429NUT:HEXLK:5/16-18:GR5:NYLON
44 MTD BRG:HEX FLANGE x.75 ID741-0245BRG:HEX FLANGE x.75 ID
45 784-5618HOUSING-BRG
