SHOE:SLIDE:600 SNOW

Nota: Questo articolo è2 volte installato nel dispositivo, il prezzo è per pezzo!
Articolo numero:
784-5580
Posizione:
30
DINNORM:
FINISH:LACKIERT 784-5580 FC?
Modell Year:
E 740 F / 2003 E 740 F / 2004 E 740 F / 2003 E 740 F / 2005
19.11 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Articolo aggiunto al carrello1
in magazzino in magazzino

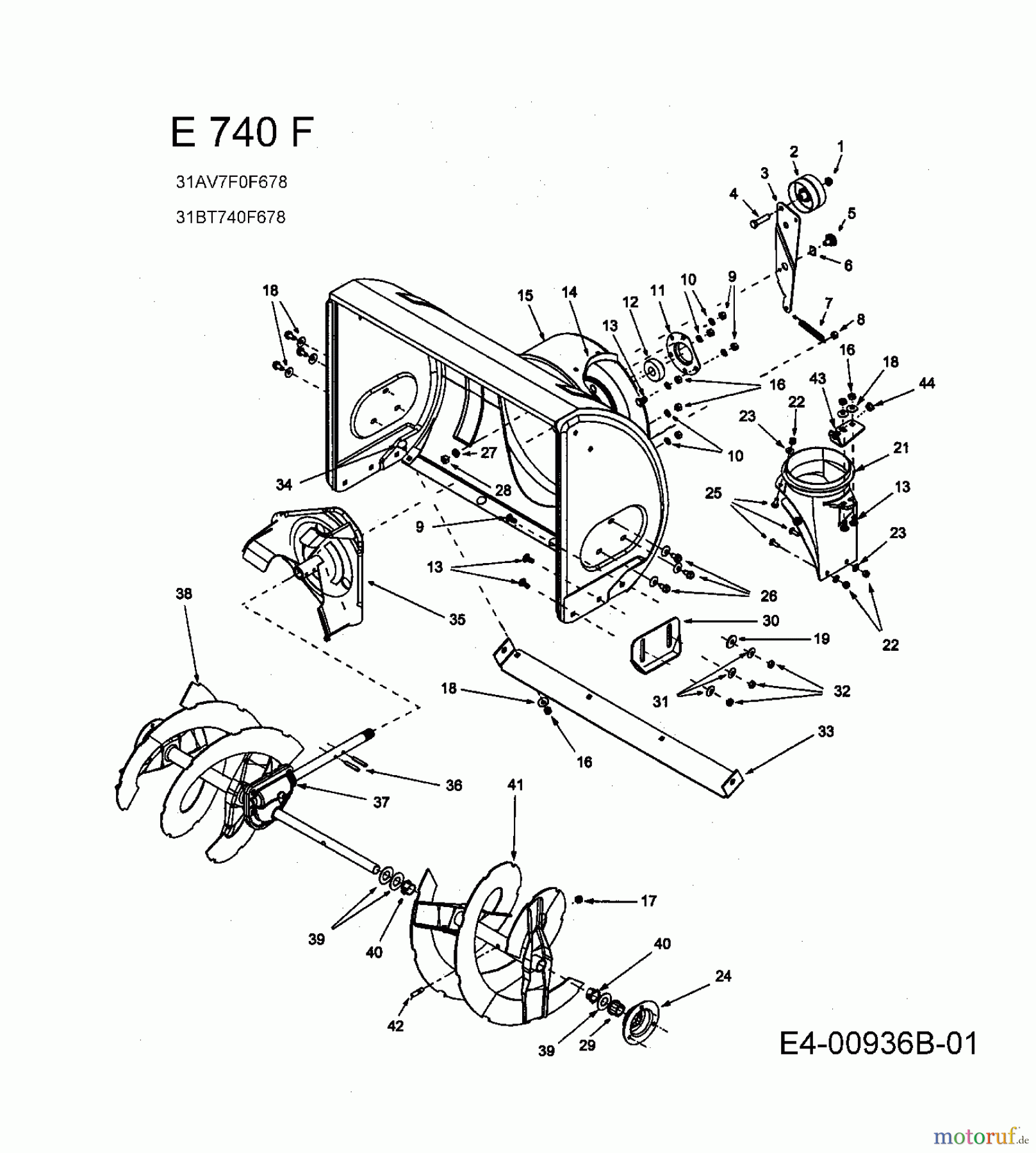

MTD Snow throwers E 740 F 31BT740F678 (2003) Auger housing, Auger, Auger gearbox
PosizioneArticolo numeroDescrizione
1 MTD NUT:JAMLK:3/8-24:GR2:NYLON712-0116NUT:JAMLK:3/8-24:GR2:NYLON
2 756-0178TENSION PULLEY
3 784-5632AAUGER IDLER ARM
4 MTD HHCS:3/8-24:1.50:GR5:SPEC710-0459AHHCS:3/8-24:1.50:GR5:SPEC
5 738-0281SCR:SHLDR:.625 x.17:3/8-16
6 736-0167WASHER-FL
7 MTD SPR:EXTN:.38 OD x 3.6 LG732-0611SPR:EXTN:.38 OD x 3.6 LG
8 712-3068NUT:HEXLK:5/16-18:GR5:PATCH
9 710-0276SCREW:CRG:SPL:5/16-18:1.00
10 MTD WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
11 05931AHSG:BRG:1.85 ID
12 MTD BALL BRG:.75 ID x 1.85 OD FLNG741-0309BALL BRG:.75 ID x 1.85 OD FLNG
13 MTD BOLT:CRG:5/16-18:.750 GR1710-0451BOLT:CRG:5/16-18:.750 GR1
14 705-5226REINFORCEMENT-CHUTE 5.0
15 684-0040CUSE 753-0616
16 MTD NUT:HEX:5/16-18:GR5712-3010NUT:HEX:5/16-18:GR5
17 MTD NUT:HEXLK:5/16-18:GR5:NYLON712-0429NUT:HEXLK:5/16-18:GR5:NYLON
18 MTD WASH:BLVL:.340 x .872 x .060736-0242WASH:BLVL:.340 x .872 x .060
19 MTD WASHER:FLAT:.344x1.125x.120736-0231WASHER:FLAT:.344x1.125x.120
21 731-1379CCHUTE ADAPTER
22 712-0324NUT:HEXLK:1/4-20:GR8:NYLON
23 736-0463WASH:FLAT: .250 x .630 x .052
24 784-5618HOUSING-BRG
25 MTD SCR:CRG:1/4-20:.75:GR5710-0703SCR:CRG:1/4-20:.75:GR5
26 MTD SCREW:TT:5/16-18:0.625HXINDWSH710-0604ASCREW:TT:5/16-18:0.625HXINDWSH
27 MTD WASH:LOCK:3/8:REGULAR DUTY736-0169WASH:LOCK:3/8:REGULAR DUTY
28 712-0798NUT:HEX:3/8-16:GR2
29 MTD BRG:HEX FLANGE x.75 ID741-0245BRG:HEX FLANGE x.75 ID
30 784-5580SHOE:SLIDE:600 SNOW
31 MTD WASH:BLVL:.340 x .872 x .060736-0242WASH:BLVL:.340 x .872 x .060
32 MTD NUT:HEX:5/16-18:GR5712-3010NUT:HEX:5/16-18:GR5
33 784-5579A26" SHAVE PLATE
34 MTD BOLT:CRG:5/16-18:.750 GR1710-0451BOLT:CRG:5/16-18:.750 GR1
35 684-0065IMPELLOR
36 715-0114SPRING PIN
37 MTD DRIVE ASSY-WORM COM618-0121ADRIVE ASSY-WORM COM
38 605-5192ASPIRAL 26" RH
39 MTD WASH:FLAT:.760x1.490X.060:HD736-0188WASH:FLAT:.760x1.490X.060:HD
40 MTD BUSH:FLG:.800 ID x.910 OD741-0493ABUSH:FLG:.800 ID x.910 OD
41 605-5193ASPIRAL 26" LH
42 MTD BOLT:SHEAR:5/16-18:1.5:GR2710-0890ABOLT:SHEAR:5/16-18:1.5:GR2
43 784-5647BRACKET: CHUTE CRANK
44 MTD BRG:FLG:SNAP .385 ID741-0475BRG:FLG:SNAP .385 ID
