Cub Cadet RZT S 46 17AICBDT603 (2014) Steering column, Pedals Ricambi

BRACKET PEDAL SHAFT

Articolo numero:
703-08606
Posizione:
7
Modell Year:
RZT S 46 / 2014
48.93 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
yellow Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

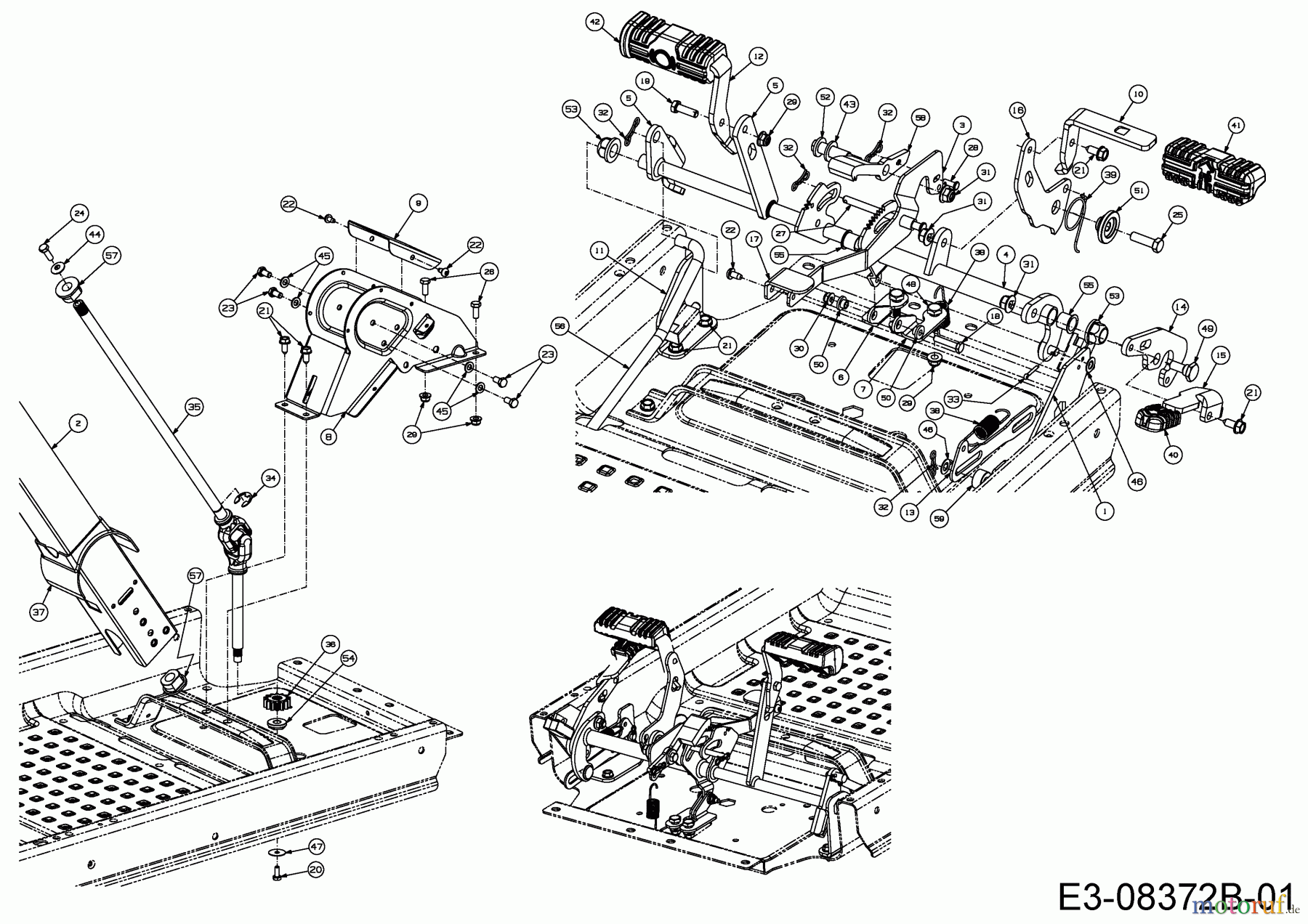

Cub Cadet Zero Turn RZT S 46 17AICBDT603 (2014) Steering column, Pedals
PosizioneArticolo numeroDescrizione
1 603-04931A-SBRACKET BEARING SUPPORT
2 603-04938A-SCOLUMN ASM STEERING
3 603-05040PEDAL ASM CRUISE/BRAKE
4 647-04270ASHAFT ASM FWD PEDAL
5 647-05042SHAFT REVERSE PEDAL
6 703-08604BRACKET PEDAL SHAFT
7 703-08606BRACKET PEDAL SHAFT
8 703-08621A-SCOLUMN LOWER STEERING
9 703-08622637VENT PIPE COVER
10 703-08646A-SPEDAL DRIVE
11 703-08656BRACKET
12 703-08675637PEDAL-BRAKE
13 703-08678BBRAKE CONTROL LINK
14 703-08690BEARING PLATE
15 703-08694A-SPEDAL REVERSE DRIVE
16 703-08754A-SPLATE HEX BEARING
17 703-09147Pedal
18 710-0106HHCS:1/4-20:1.25:GR5:SPEC
19 Cub Cadet HHCS:5/16-18:2.50:GR5:STD710-0378HHCS:5/16-18:2.50:GR5:STD
20 710-0433HHCS:1/4-20:.625:GR5:LOCK
21 Cub Cadet SCREW:TT:5/16-18:.750:HXINDWSH710-04484SCREW:TT:5/16-18:.750:HXINDWSH
22 710-05070SCR:TT:1/4-20:.5:PANTRXI:BLK
23 Cub Cadet HHCS:5/16-18:.625:GR5:LOCK710-0538HHCS:5/16-18:.625:GR5:LOCK
24 710-1245BHHCS:5/16-24:.875:GR8:LOCK
25 Cub Cadet SCREW HHCS:3/8-16:1.25:GR5:STD710-3005SCREW HHCS:3/8-16:1.25:GR5:STD
26 Cub Cadet SCREW HHCS:5/16-18:.75:GR5:STD710-3008SCREW HHCS:5/16-18:.75:GR5:STD
27 711-05068APIN:CLV:5/16 x 4.135
28 711-05670ROD-FRONT LINK MTG
29 Cub Cadet FLANGED NUT 5/16-18:GRF:NYLON712-04063FLANGED NUT 5/16-18:GRF:NYLON
30 Cub Cadet NUT:FLGLK:1/4-20:GRF:NYLON712-04064NUT:FLGLK:1/4-20:GRF:NYLON
31 Cub Cadet NUT:FLGLK:3/8-16:GRF:NYLON712-04065NUT:FLGLK:3/8-16:GRF:NYLON
32 Cub Cadet PIN-COTTER714-04040PIN-COTTER
33 Cub Cadet PIN:COTTER 1/8 OD x.75714-0474PIN:COTTER 1/8 OD x.75
34 Cub Cadet RING:E-TYPE:.750716-0231RING:E-TYPE:.750
35 717-04954SHAFT STEERING
36 717-04960GEAR STEERING 14 TEETH
37 731-07358BCOVER COLUMN
38 732-04748SPRING-BRAKE TENSION
39 732-04949SPRING TORSION LH
40 735-04117PAD:PEDAL:REVERSE
41 735-04118APAD:PEDAL:FORWARD
42 735-04136PAD:PEDAL:BRAKE
43 736-0192WASH:FL:.535 X .93 X .090
44 Cub Cadet WASH:BLVL:.340 x .872 x .060736-0242WASH:BLVL:.340 x .872 x .060
45 736-0264WASH:FLAT:.330 x.630x.0635
46 Cub Cadet WASH:THRST:.375x.700x.030736-0314WASH:THRST:.375x.700x.030
47 736-3092WASH:FLAT:.265 x 1.0 x.030:HD
48 Cub Cadet SCR:SHLDR:.437 x .268:5/16-18738-0296SCR:SHLDR:.437 x .268:5/16-18
49 Cub Cadet BOLT:SHLDR:.500 x.270:3/8-16738-0380BOLT:SHLDR:.500 x.270:3/8-16
50 738-04483SPCR:SHLDR:.375x.625x.20
51 738-04552ASPACER-PULLEY
52 738-0929HEX CAP SCREW,1/2-13X1.75
53 Cub Cadet HEX FLANGE BEARING741-0225HEX FLANGE BEARING
54 741-04543Bearing flange
55 Cub Cadet BRG:FLG:.630 ID X.695 OD x.60741-0495BRG:FLG:.630 ID X.695 OD x.60
56 747-05654AROD:CONT:BRAKE
57 748-0209Bearing flange
58 748-04203LATCH:CRUS
59 750-05635SPACER-PULLEY
