HOSE-OIL DRAIN 13,75 LG

Articolo numero:
751-10291C
Posizione:
36
DINNORM:
751-10291C
Modell Year:
Z7 183 / 2018 Z7 183 / 2018
23.42 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Articolo aggiunto al carrello1
yellow Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

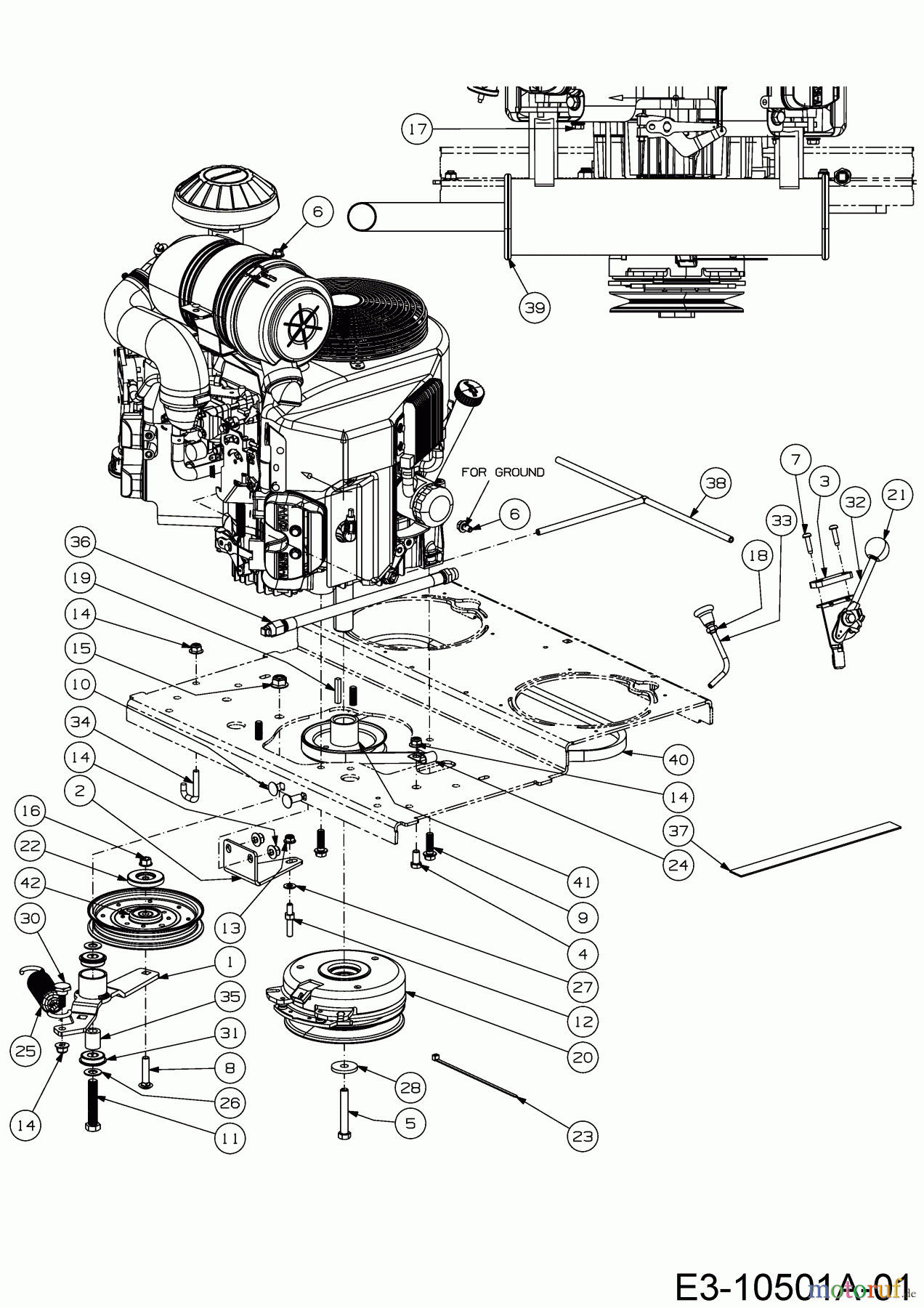

Cub Cadet Zero Turn Z7 183 53AIHKUY603 (2018) Choke- and throttle control, Electric clutch, Engine accessories
PosizioneArticolo numeroDescrizione
1 680-00550
2 703-08607
3 703-10399A
4 710-0216HHCS:3/8-16:.75:GR5:STD
5 710-04377SCREW 1/16-20X2.75
6 710-04748SCREW HEX HEAD CAP
7 710-05074SCR:TT:1/4-20:1.0:PANTRXI:BLK
8 710-05376BOLT, CARR 3/8-16x1" PLTD
9 710-06359SCREW HEX FLANGE 3/8-16X1.25
10 710-3168BOLT:CRG:3/8-16:1.00:GR5
11 710-3230HHCS:1/2-13:2.75:GR5:SPEC
12 711-1637STUD-ACTUATOR
13 Cub Cadet FLANGED NUT 5/16-18:GRF:NYLON712-04063FLANGED NUT 5/16-18:GRF:NYLON
14 Cub Cadet NUT:FLGLK:3/8-16:GRF:NYLON712-04065NUT:FLGLK:3/8-16:GRF:NYLON
15 712-04150NUT:FLGLK:1/2-13:GRF:NYLON
16 Cub Cadet NUT:FLGLK:3/8-16:GRF:TOP LK712-0431NUT:FLGLK:3/8-16:GRF:TOP LK
17 712-04312NUT:HEX:FLG:M8-1.25:WHIZ
18 Cub Cadet NUT:JAM:3/8-24:GR5712-0711NUT:JAM:3/8-24:GR5
19 714-0118KEY:SQ:1/4 x 1.50
20 717-05316CLUTCH ELECTRIC PTO
21 720-05110BALL KNOB
22 721-04516CAP PULLEY
23 725-0157CBL:TIE: 3/16 X .05 X 7.4
24 726-04124CLAMP
25 732-05446EXTENSION SPRING 1.37 X 7.5
26 Cub Cadet WASHER:FL:.510 X 1.000 X .060736-0272WASHER:FL:.510 X 1.000 X .060
27 736-0275WASH:FLAT:.344 x .688 x.065
28 736-3082AWASH:FLAT:.450 IDX1.5 ODX .172
30 738-1126SCREW-SHOULDER
31 741-05247BALL BEARING
32 746-05260THROTTLE CABLE 59"
33 746-05341ACHOKE CABLE
34 747-05707ROD-SHIFT LEVER
35 750-06330SPACER
36 751-10291CHOSE-OIL DRAIN 13,75 LG
37 751-11232AHEAT SHIELD SLEEVE 24"
38 751-12282AHOSE ASM ROLLOVER
39 751-15273MUFFLER KAWASAKI 1000
40 754-05037V-BELT 61.5"
41 756-04382PULLEY
42 756-04487Tension idler
